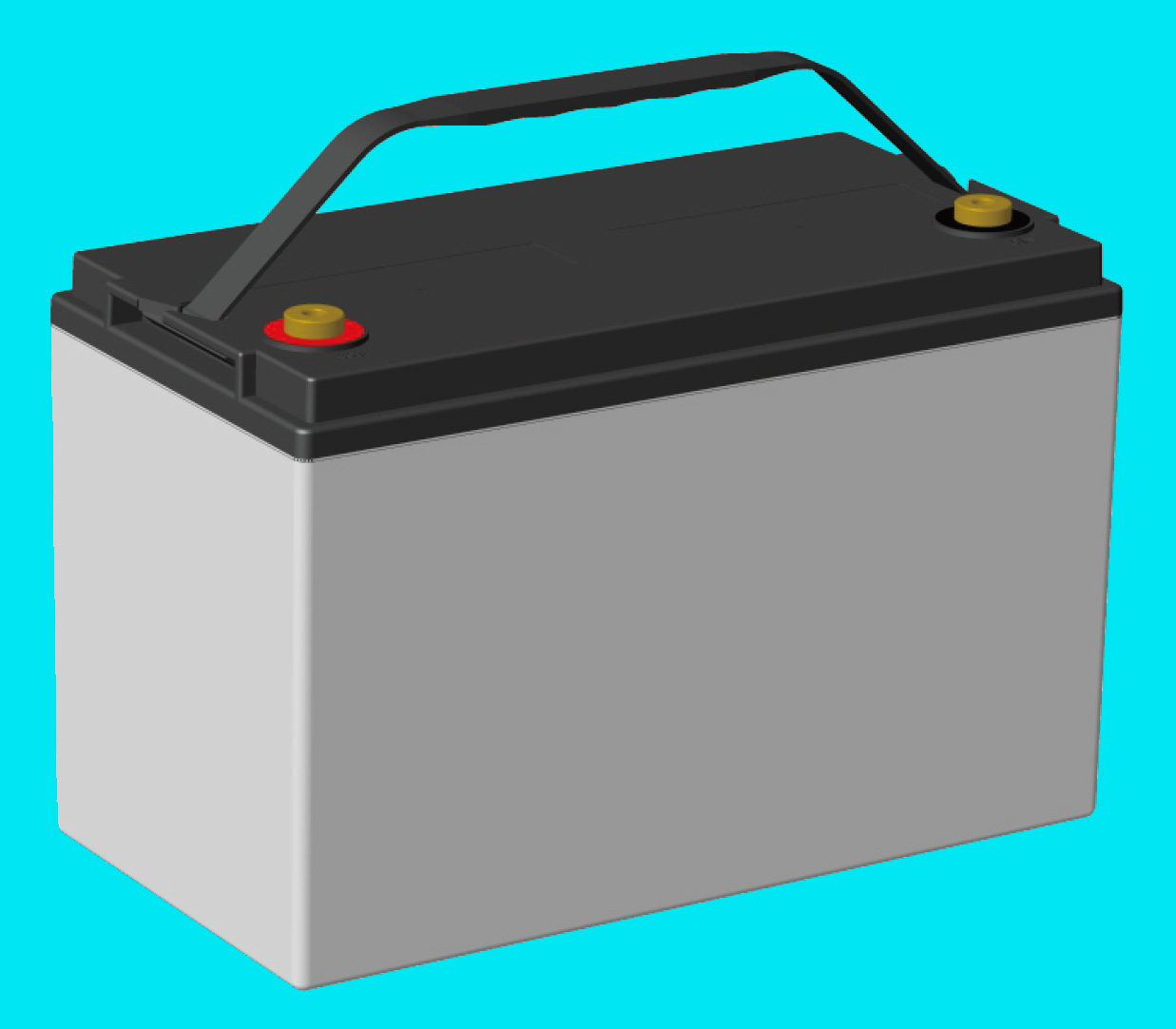

Furnish New Battery Vision SCP Series SCP121100 DC31 M8

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Vision SCP Series SCP121100 DC31 M8

$619.28

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision SCP Series SCP121100 DC31 M8
Adjustment	1
AH Per String	80.08
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.3 (Min: 2.3, Max: 2.35)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	-10°C to 60°C
ISC Amps	3300
Internal Resistance	0.0001 Ohms
Dimensions (L x W x H)	12.99 x 6.73 x 8.66 in
Weight	66.1 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	1000 Amps
Max Charge Amps	8.008 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	116
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	13.22 lbs
