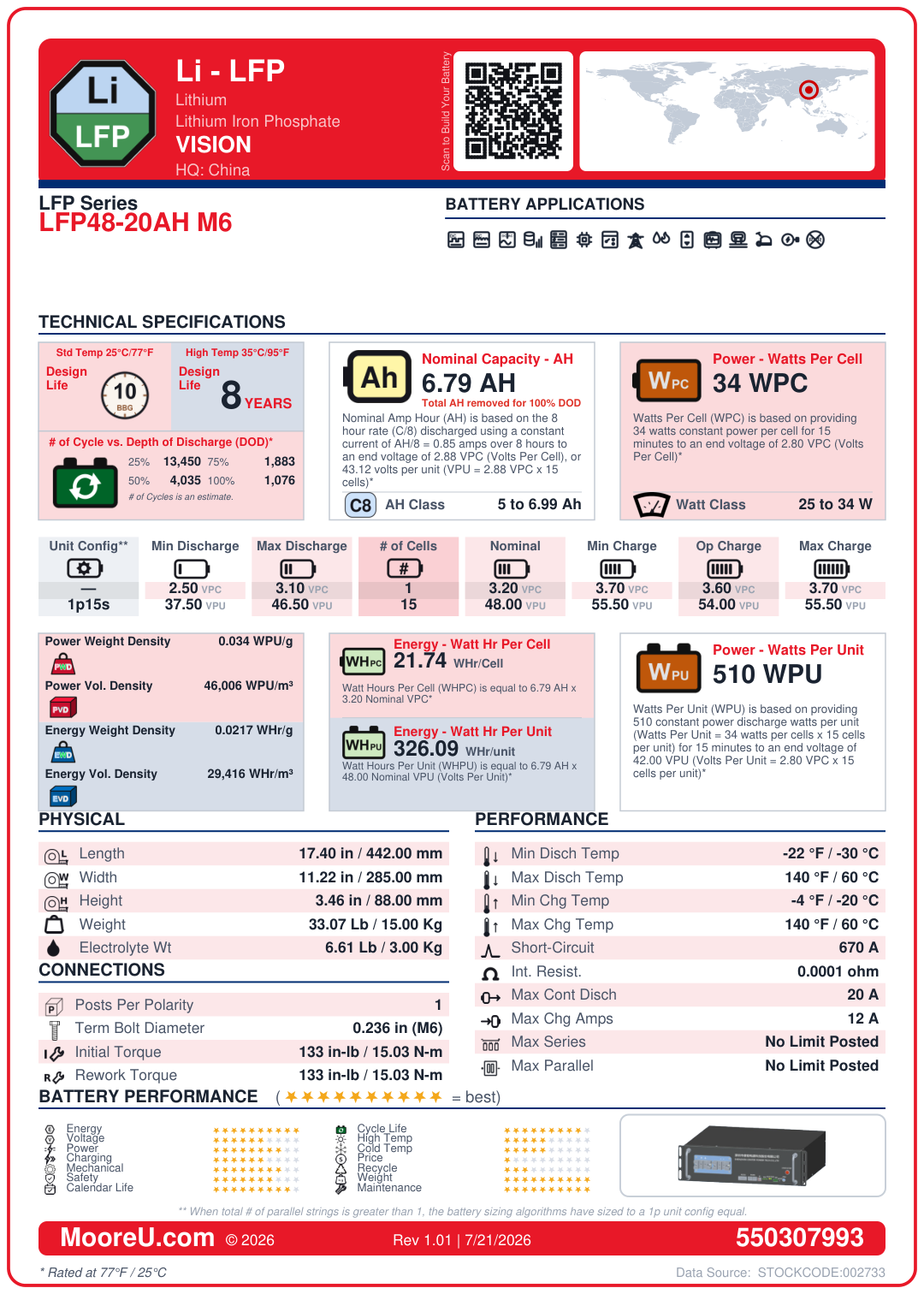

Front of card

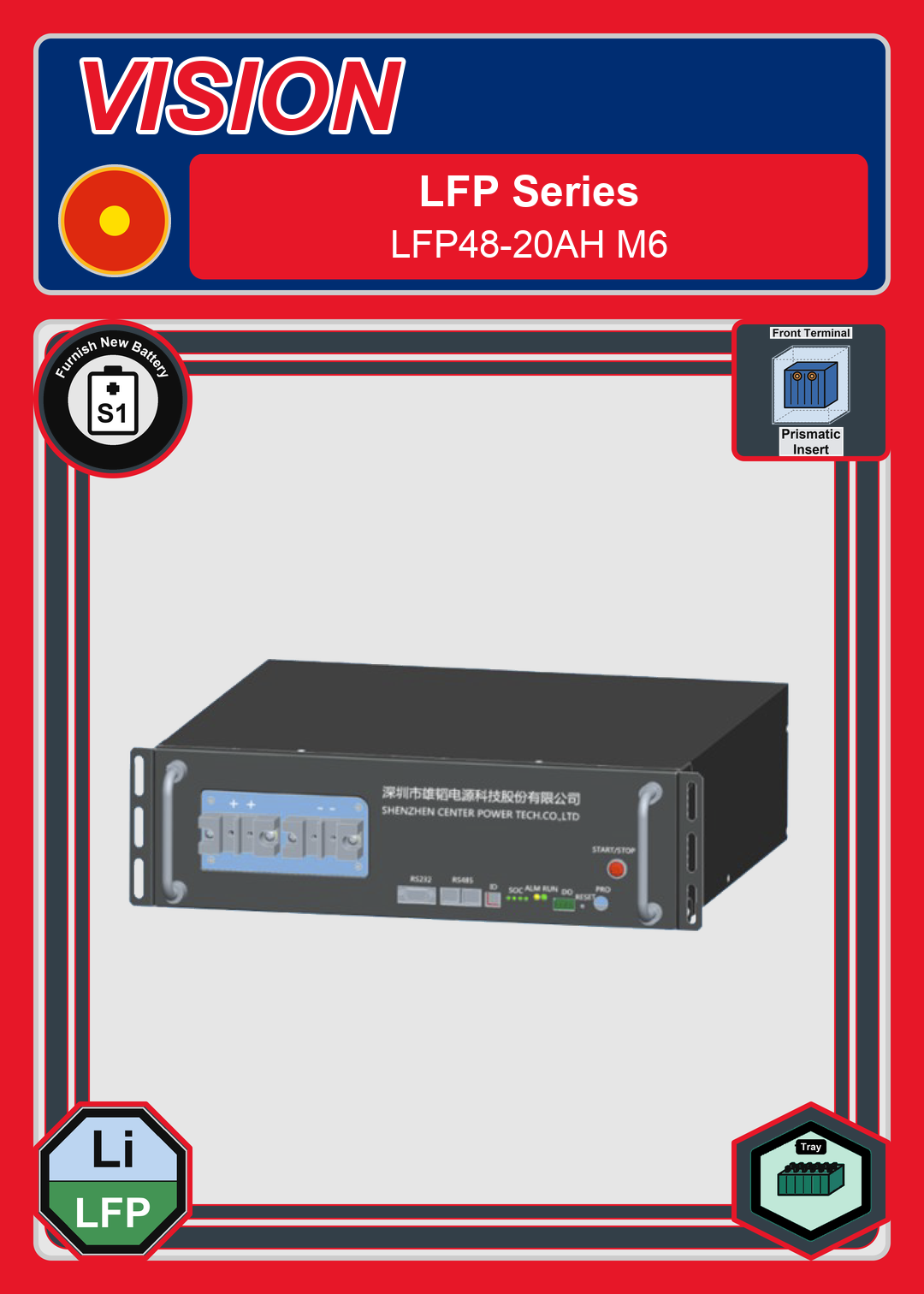

Back of card
Furnish New Battery Vision LFP Series LFP48 20AH M6
Technology: Li_LFP.pngFurnish New Battery Vision LFP Series LFP48 20AH M6
$273.89
Build my Battery
Recycle My Battery
Furnish New Battery Vision LFP Series LFP48 20AH M6
| Battery Model | Vision LFP Series LFP48 20AH M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 6.7936 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 15 |
| Nominal VPC | 3.2 |
| Model KWH | 0 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -30°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 670 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 17.4016 x 11.2205 x 3.46457 in |
| Weight | 33.0693 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 20 Amps |
| Max Charge Amps | 12 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 34 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 6.61386 lbs |
