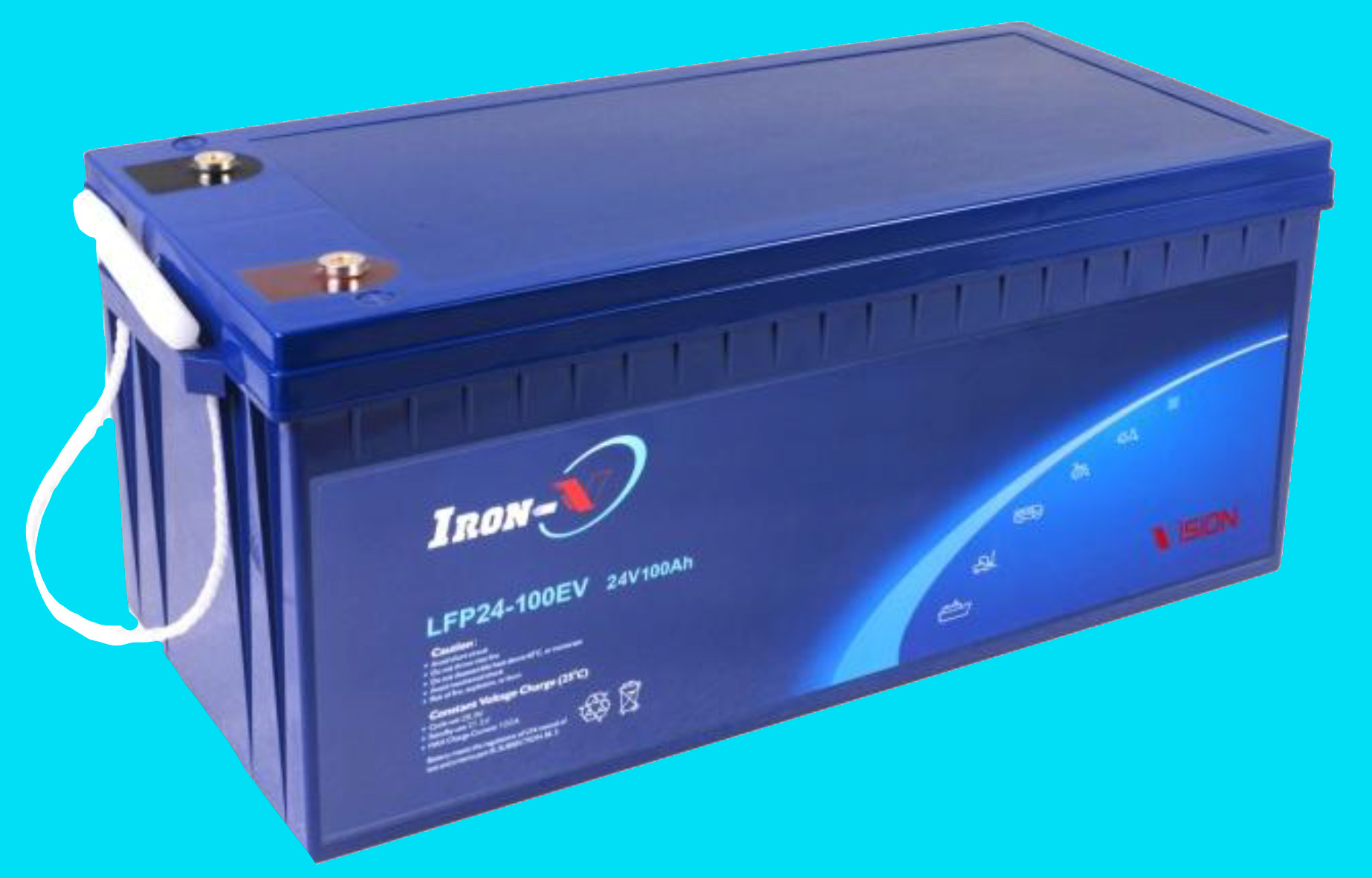

Furnish New Battery Vision Iron V Series LFP24 100EV ABS M8
Technology: Lithium_Ion_LFPFurnish New Battery Vision Iron V Series LFP24 100EV ABS M8
$2,338.27
Furnish New Battery Vision Iron V Series LFP24 100EV ABS M8
| Battery Model | Vision Iron V Series LFP24 100EV ABS M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 51.36 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 8 |
| Nominal VPC | 3.2 |
| Model KWH | 1 |
| Charge VPC | 3.65 (Min: 3.65, Max: 3.65) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | 10°C to 45°C |
| ISC Amps | 513 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 20.55 x 9.37 x 8.779 in |
| Weight | 48.5017 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 200 Amps |
| Max Charge Amps | 100 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 223 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 9.70034 lbs |
