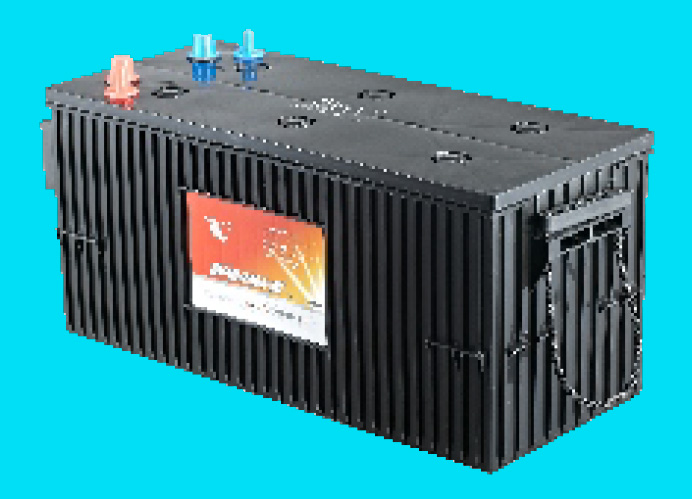

Furnish New Battery Vision EV Series EV4D 240A AT PP AT
Technology: Lead_Acid_Over120lbsFurnish New Battery Vision EV Series EV4D 240A AT PP AT
$745.63
Furnish New Battery Vision EV Series EV4D 240A AT PP AT
| Battery Model | Vision EV Series EV4D 240A AT PP AT |
|---|---|
| Adjustment | 1 |
| AH Per String | 184.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.35 (Min: 2.35, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -10°C to 50°C |
| ISC Amps | 1844 |
| Internal Resistance | 0.001 Ohms |
| Dimensions (L x W x H) | 20.8 x 8.7 x 9.8 in |
| Weight | 142.4 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (AT mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1600 Amps |
| Max Charge Amps | 16 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 204 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 12.56 lbs |
