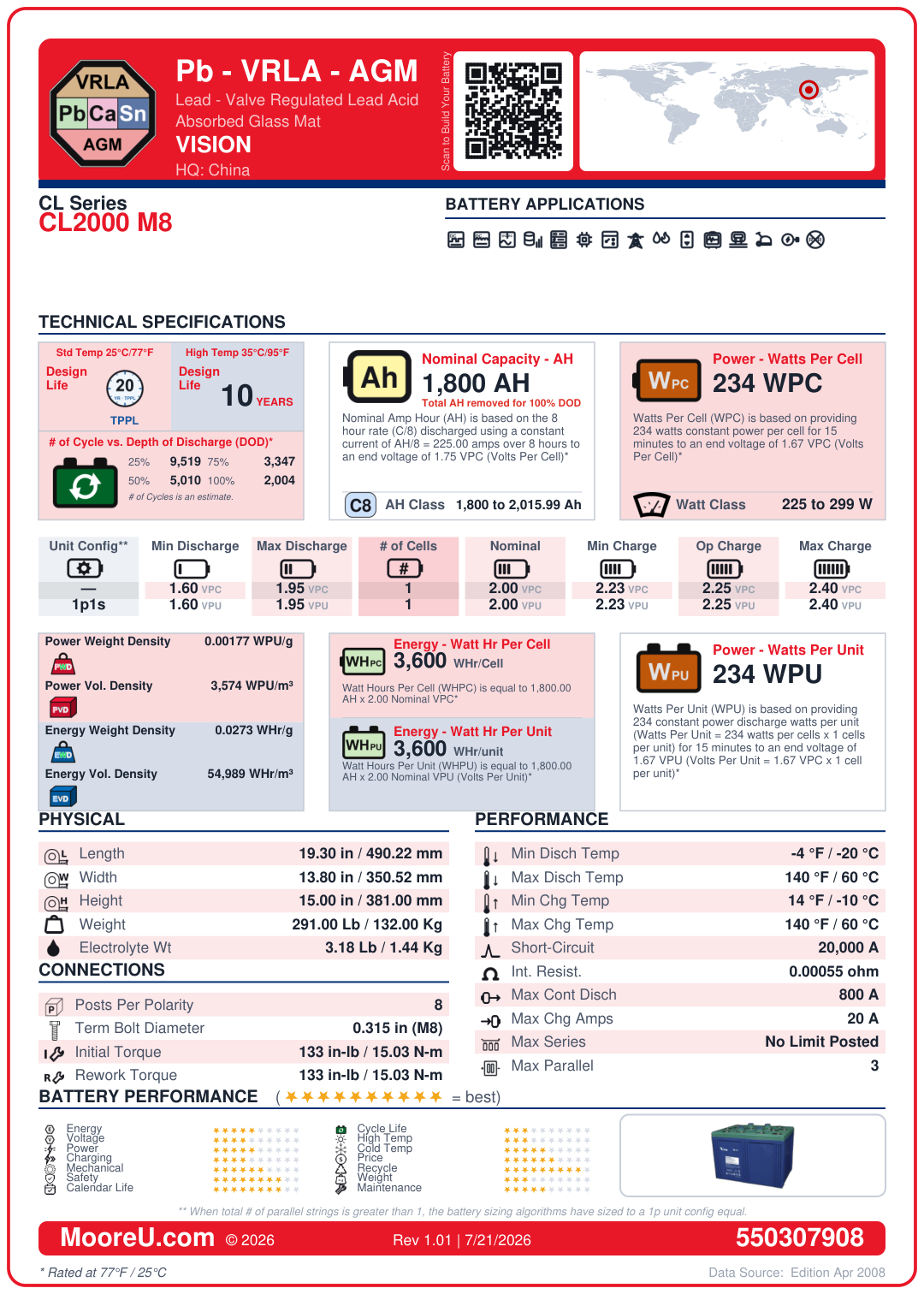

Furnish New Battery Vision CL Series CL2000 M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Vision CL Series CL2000 M8
$243.64
Build my Battery
Recycle My Battery
Furnish New Battery Vision CL Series CL2000 M8
| Battery Model | Vision CL Series CL2000 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1800 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 4 |
| Charge VPC | 2.35 (Min: 2.35, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.0033 V/°C/cell |
| Cycle Temp Comp | -0.005 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 20000 |
| Internal Resistance | 0.00055 Ohms |
| Dimensions (L x W x H) | 19.3 x 13.8 x 15 in |
| Weight | 291 lbs |
| Number of Posts | 8 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 800 Amps |
| Max Charge Amps | 20 Amps |
| Max In Series / Parallel | 0 / 3 |
| Watts Per Cell (15min 1.67) | 234 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 3.18 lbs |
