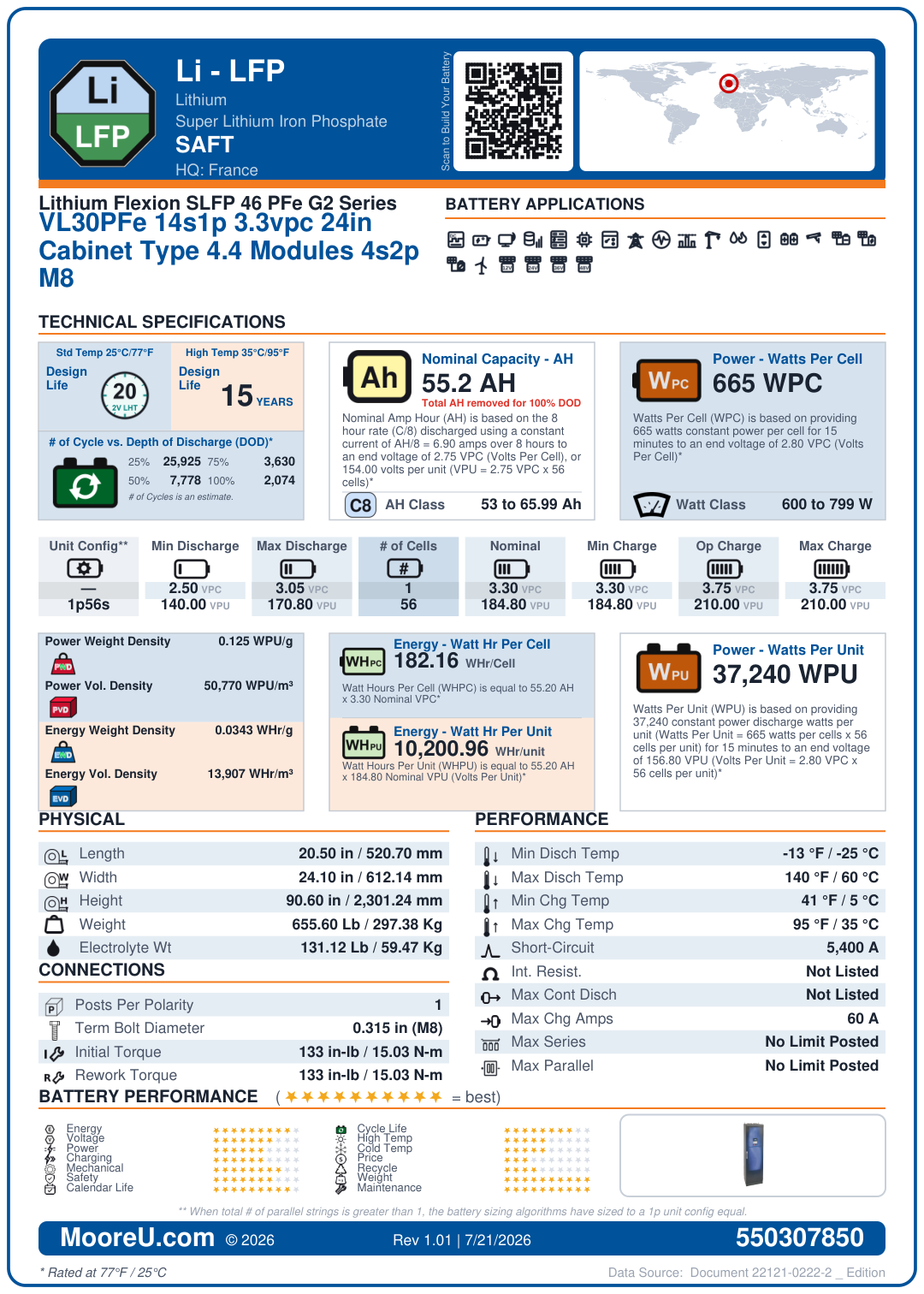

Furnish New Battery Saft Lithium SLFP Series Flexion 46 PFe G2 VL30PFe 14s1p 3 3vpc 24in Cabinet Type 4 4 Modules 4s2p M8
Technology: Li_LFP.pngFurnish New Battery Saft Lithium SLFP Series Flexion 46 PFe G2 VL30PFe 14s1p 3 3vpc 24in Cabinet Type 4 4 Modules 4s2p M8
$23,716.37
Build my Battery
Recycle My Battery
Furnish New Battery Saft Lithium SLFP Series Flexion 46 PFe G2 VL30PFe 14s1p 3 3vpc 24in Cabinet Type 4 4 Modules 4s2p M8
| Battery Model | Saft Lithium SLFP Series Flexion 46 PFe G2 VL30PFe 14s1p 3 3vpc 24in Cabinet Type 4 4 Modules 4s2p M8 |
|---|---|
| Adjustment | 2 |
| AH Per String | 55.2 |
| AH Per String Rating | 8 hr @ 2.75 VPC |
| Cells Per Unit | 56 |
| Nominal VPC | 3.3 |
| Model KWH | 10 |
| Charge VPC | 3.75 (Min: 3.75, Max: 3.75) |
| Discharge VPC | Min: 2.5, Max: 3 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -25°C to 60°C |
| Charge Temp Range | 5°C to 35°C |
| ISC Amps | 5400 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 20.2 x 24.1 x 90.6 in |
| Weight | 655.6 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 0 Amps |
| Max Charge Amps | 60 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 665 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 131.12 lbs |
