Furnish New Battery Narada Lithium Series 48MPlhE100 16S M6
Technology: Li_LFP.pngFurnish New Battery Narada Lithium Series 48MPlhE100 16S M6
$737.80
Build my Battery
Recycle My Battery

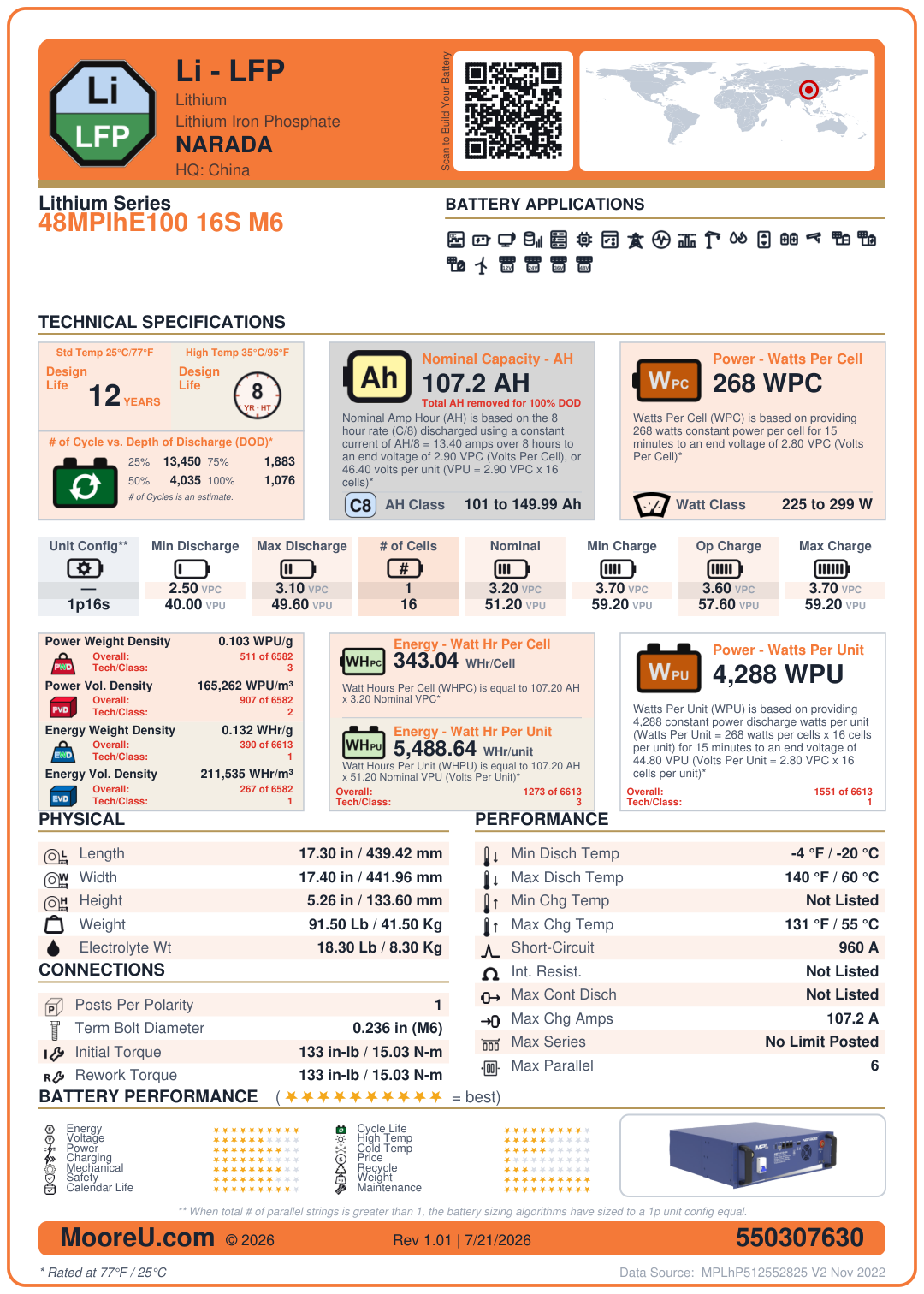

Furnish New Battery Narada Lithium Series 48MPlhE100 16S M6
| Battery Model | Narada Lithium Series 48MPlhE100 16S M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 107.2 |
| AH Per String Rating | 8 hr @ 2.9 VPC |
| Cells Per Unit | 16 |
| Nominal VPC | 3.2 |
| Model KWH | 5 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.7, Max: 3.1 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 55°C |
| ISC Amps | 960 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 17.3 x 17.4 x 5.26 in |
| Weight | 91.5 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 0 Amps |
| Max Charge Amps | 107.2 Amps |
| Max In Series / Parallel | 0 / 6 |
| Watts Per Cell (15min 1.67) | 268 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 18.3 lbs |
