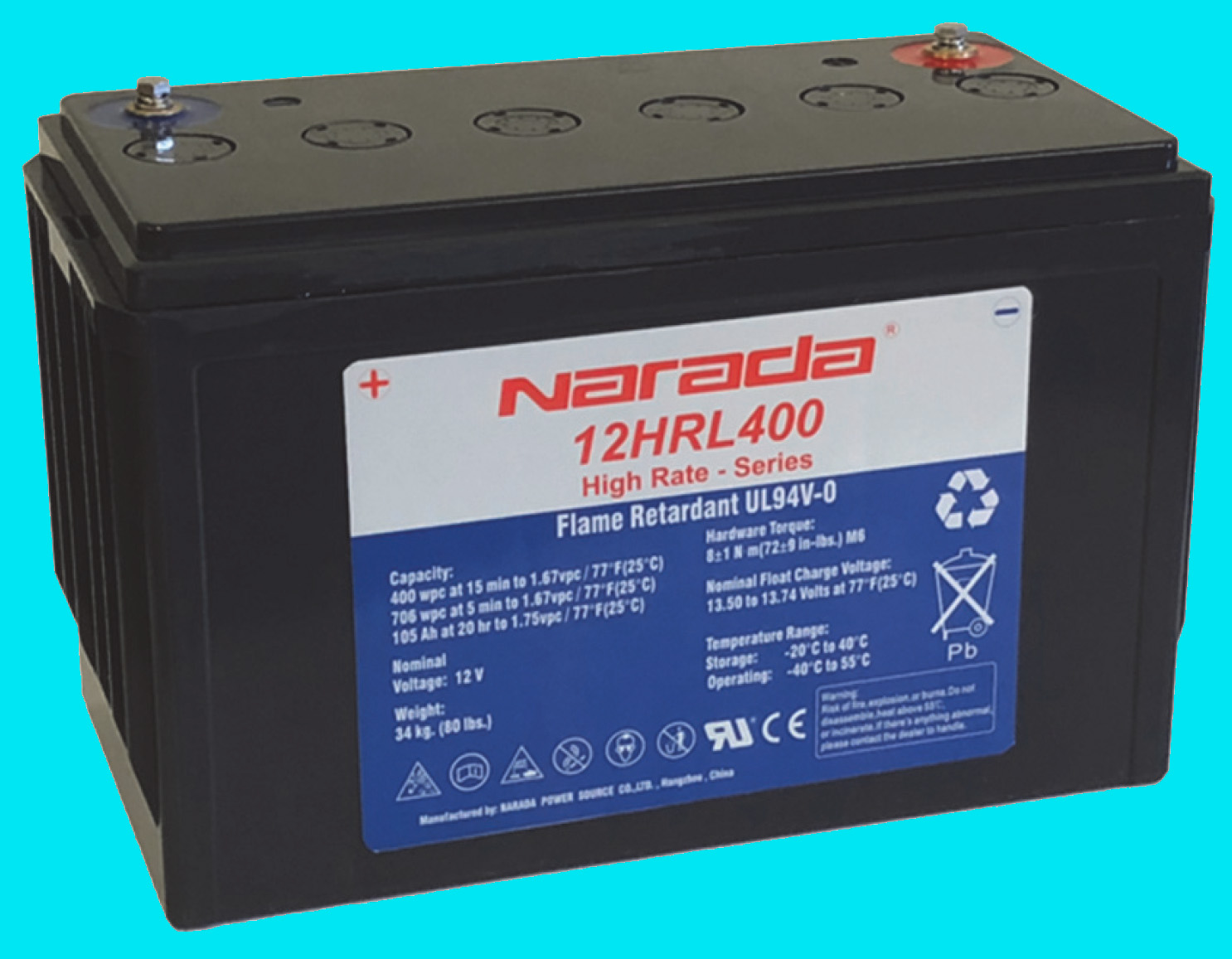

Furnish New Battery Narada High Rate Series 12HRL400 M6

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Narada High Rate Series 12HRL400 M6

$747.96

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Narada High Rate Series 12HRL400 M6
Adjustment	1
AH Per String	96.72
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 60°C
Charge Temp Range	-28°C to 50°C
ISC Amps	3205
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	13.27 x 6.81 x 8.46 in
Weight	75 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	0 Amps
Max Charge Amps	0 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	376
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	15 lbs
