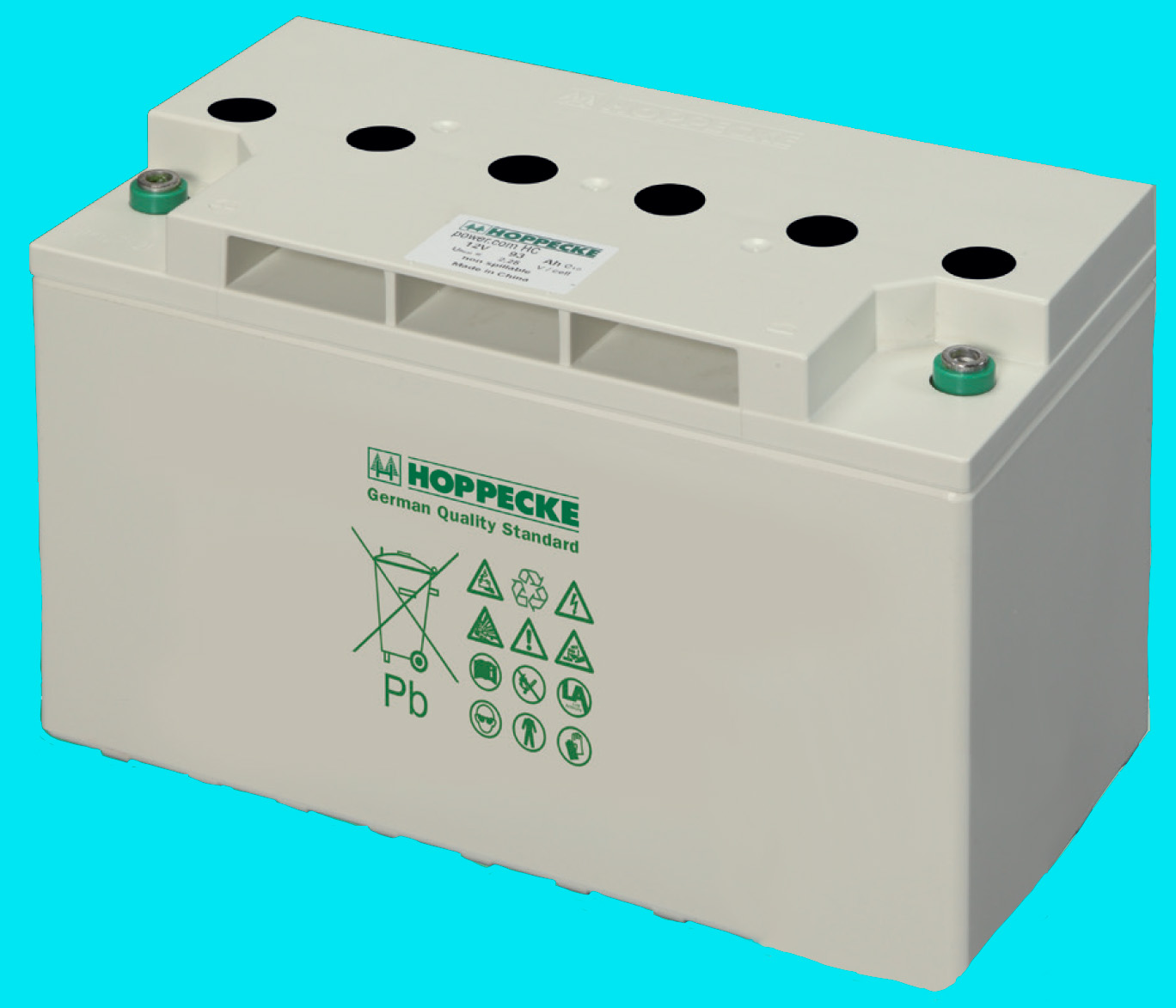

Furnish New Battery Hoppecke power com HC Series HC121600 V0 M8
Technology: Lead_Acid_Units_120lbs and lessFurnish New Battery Hoppecke power com HC Series HC121600 V0 M8
$355.77
Furnish New Battery Hoppecke power com HC Series HC121600 V0 M8
| Battery Model | Hoppecke power com HC Series HC121600 V0 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 45.12 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 45°C |
| Charge Temp Range | -20°C to 45°C |
| ISC Amps | 1560 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 9.01575 x 6.9685 x 9.05512 in |
| Weight | 54.45418 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 156 Amps |
| Max Charge Amps | 6.768 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 69 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 9.218 lbs |
