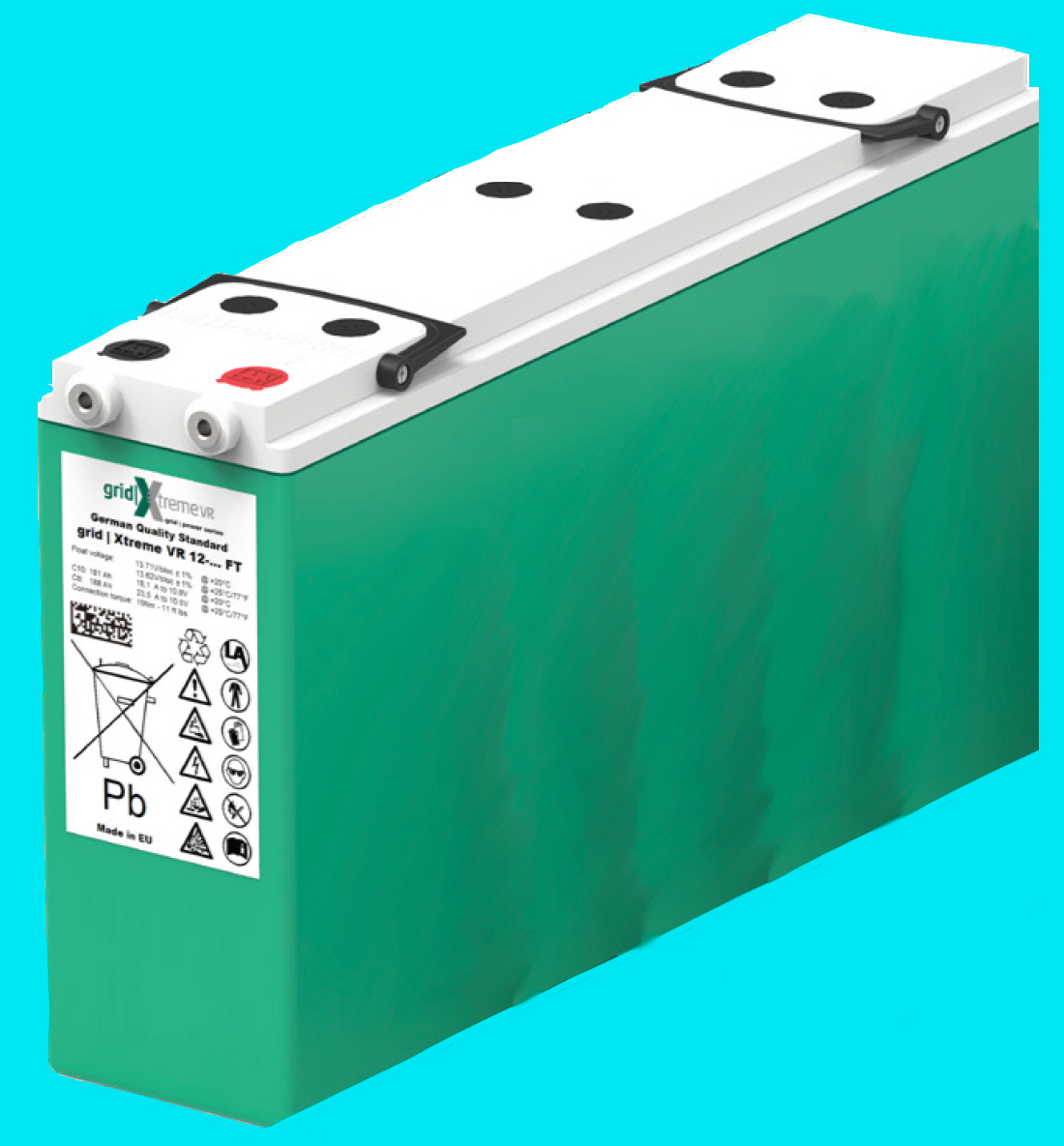

Furnish New Battery Hoppecke grid Xtreme VR Series VR12 120FT V0 M8

Technology: Lead_Acid_Auto_Steel_Jacket
Furnish New Battery Hoppecke grid Xtreme VR Series VR12 120FT V0 M8

$896.60

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Hoppecke grid Xtreme VR Series VR12 120FT V0 M8
Adjustment	1
AH Per String	146
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	2
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.85
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 55°C
Charge Temp Range	-40°C to 55°C
ISC Amps	1500
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	20.5512 x 4.92126 x 8.66142 in
Weight	85.53936 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	150 Amps
Max Charge Amps	21.9 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	225
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.464936 lbs
