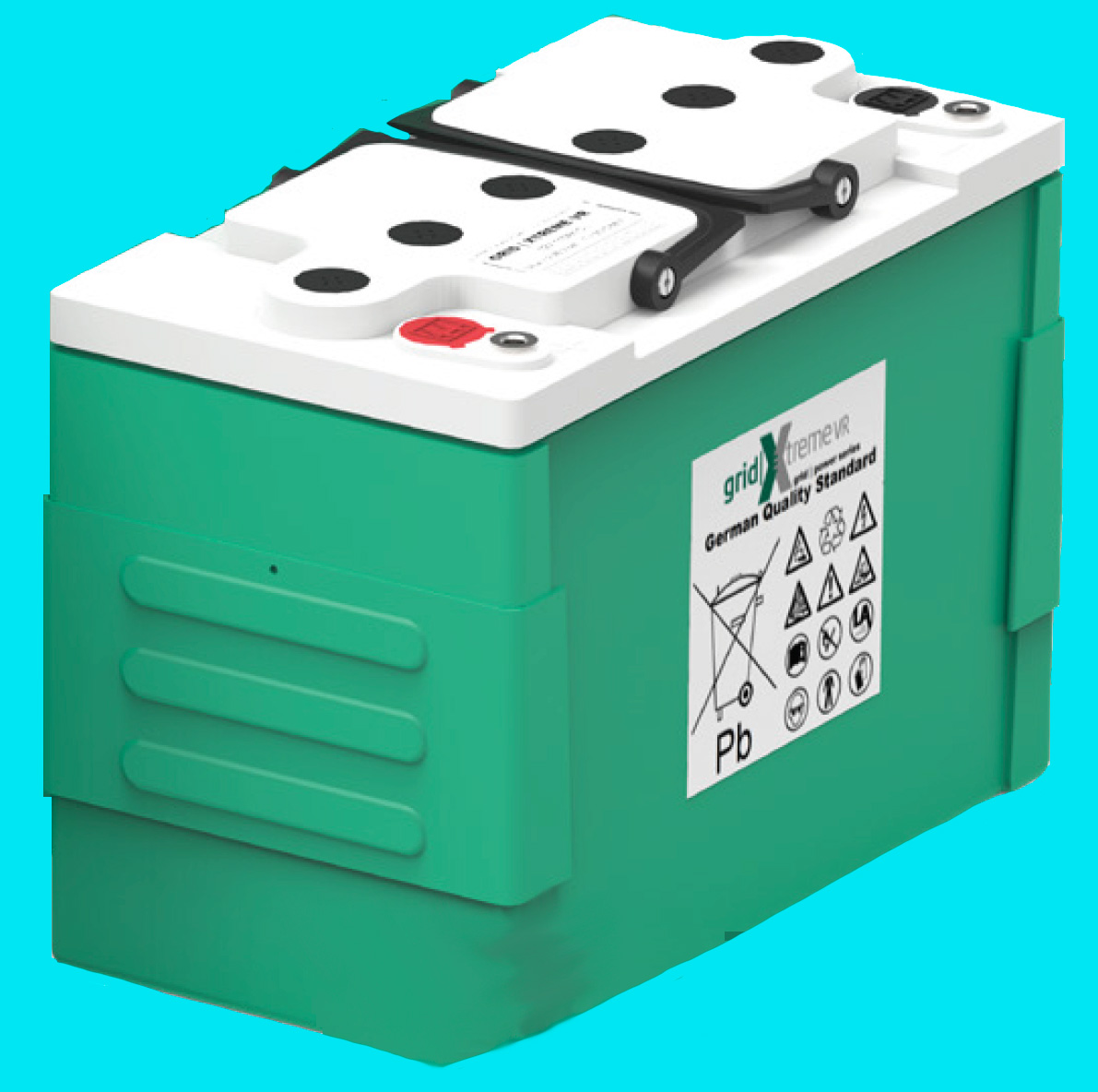

Furnish New Battery Hoppecke grid Xtreme VR Series VR12 80 V0 M8
Technology: Lead_Acid_Auto_Steel_JacketFurnish New Battery Hoppecke grid Xtreme VR Series VR12 80 V0 M8
$767.64
Furnish New Battery Hoppecke grid Xtreme VR Series VR12 80 V0 M8
| Battery Model | Hoppecke grid Xtreme VR Series VR12 80 V0 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 125 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 55°C |
| Charge Temp Range | -40°C to 55°C |
| ISC Amps | 4175 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 10 x 6.85039 x 9.17323 in |
| Weight | 56.6588 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 417.5 Amps |
| Max Charge Amps | 18.75 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 243 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 12.464936 lbs |
