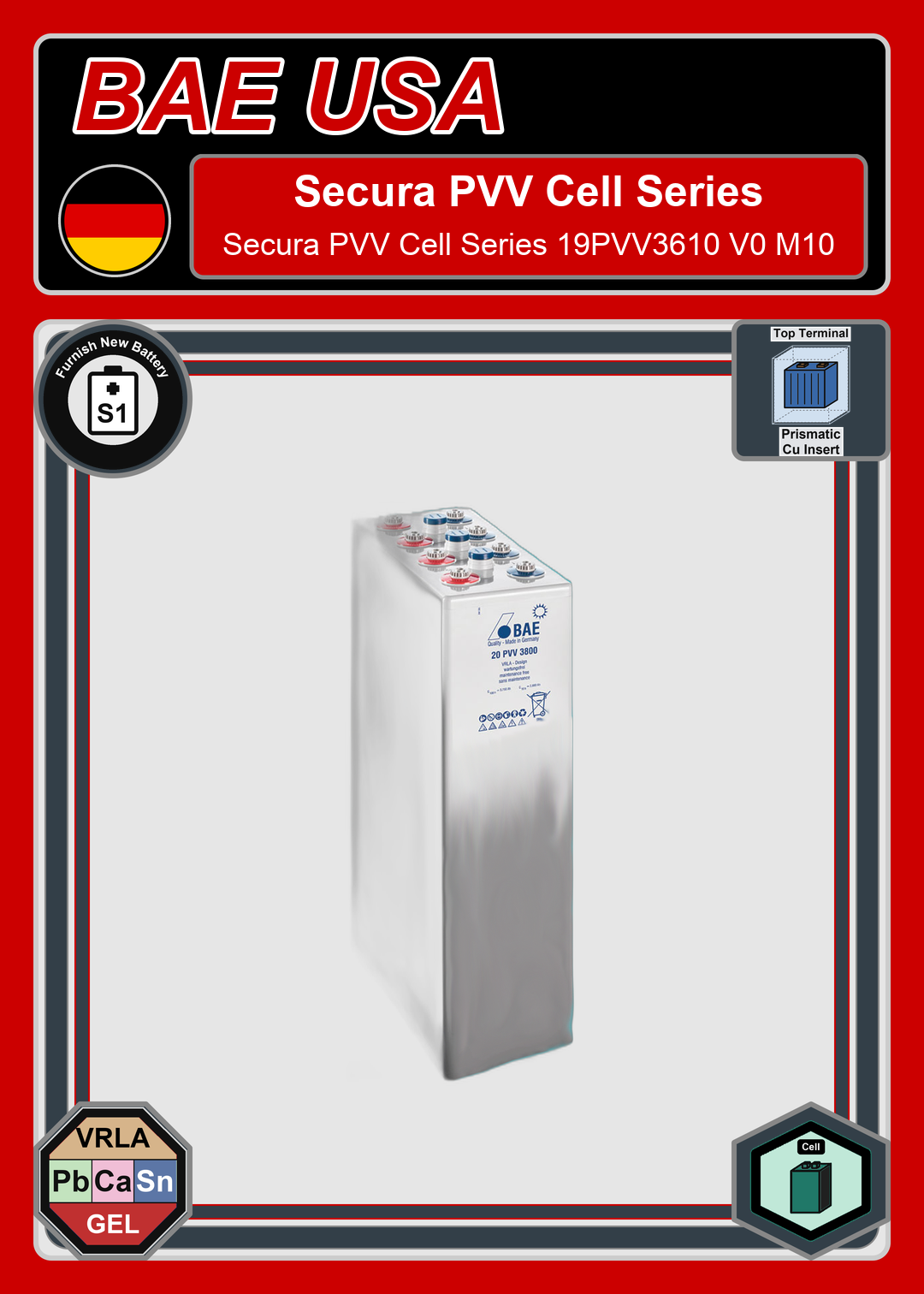

Furnish New Battery BAE Battery Secura PVV Cell Series 19PVV3610 V0 M10
Technology: Pb_Ca_Sn_VRLA_GEL.pngFurnish New Battery BAE Battery Secura PVV Cell Series 19PVV3610 V0 M10
$3,234.94
Build my Battery
Recycle My Battery
Furnish New Battery BAE Battery Secura PVV Cell Series 19PVV3610 V0 M10

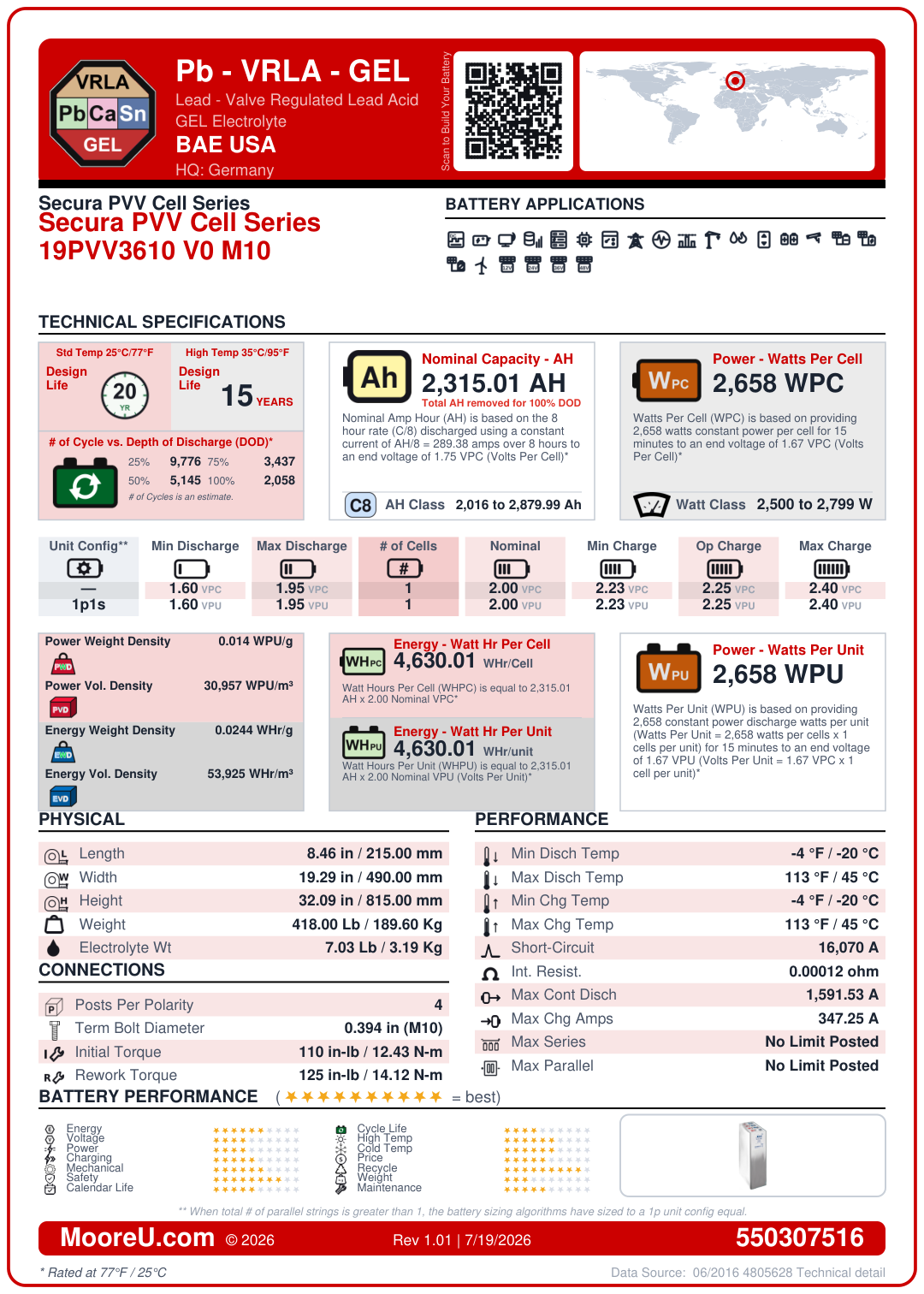

| Battery Model | BAE Battery Secura PVV Cell Series 19PVV3610 V0 M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2315.00544 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 45°C |
| Charge Temp Range | -20°C to 45°C |
| ISC Amps | 16070 |
| Internal Resistance | 0.00012 Ohms |
| Dimensions (L x W x H) | 8.46457 x 19.2913 x 32.0866 in |
| Weight | 417.99645 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 1591.5293 Amps |
| Max Charge Amps | 347.250816 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2658 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 7.0327466 lbs |
Related Products

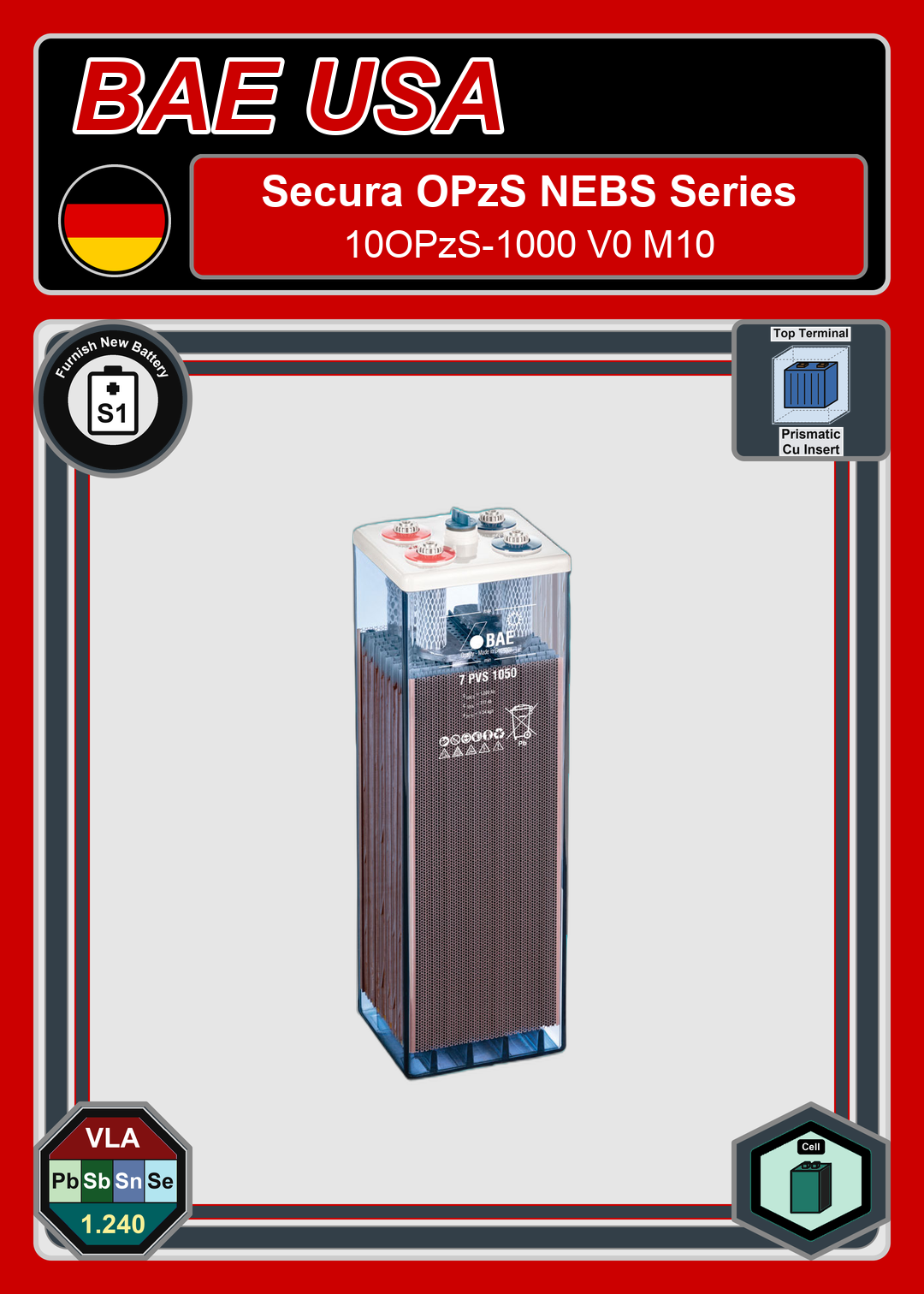

Furnish_New_Battery_BAE_Battery_Secura_OPzS_NEBS_Series_10OPzS_1000_V0_M10
