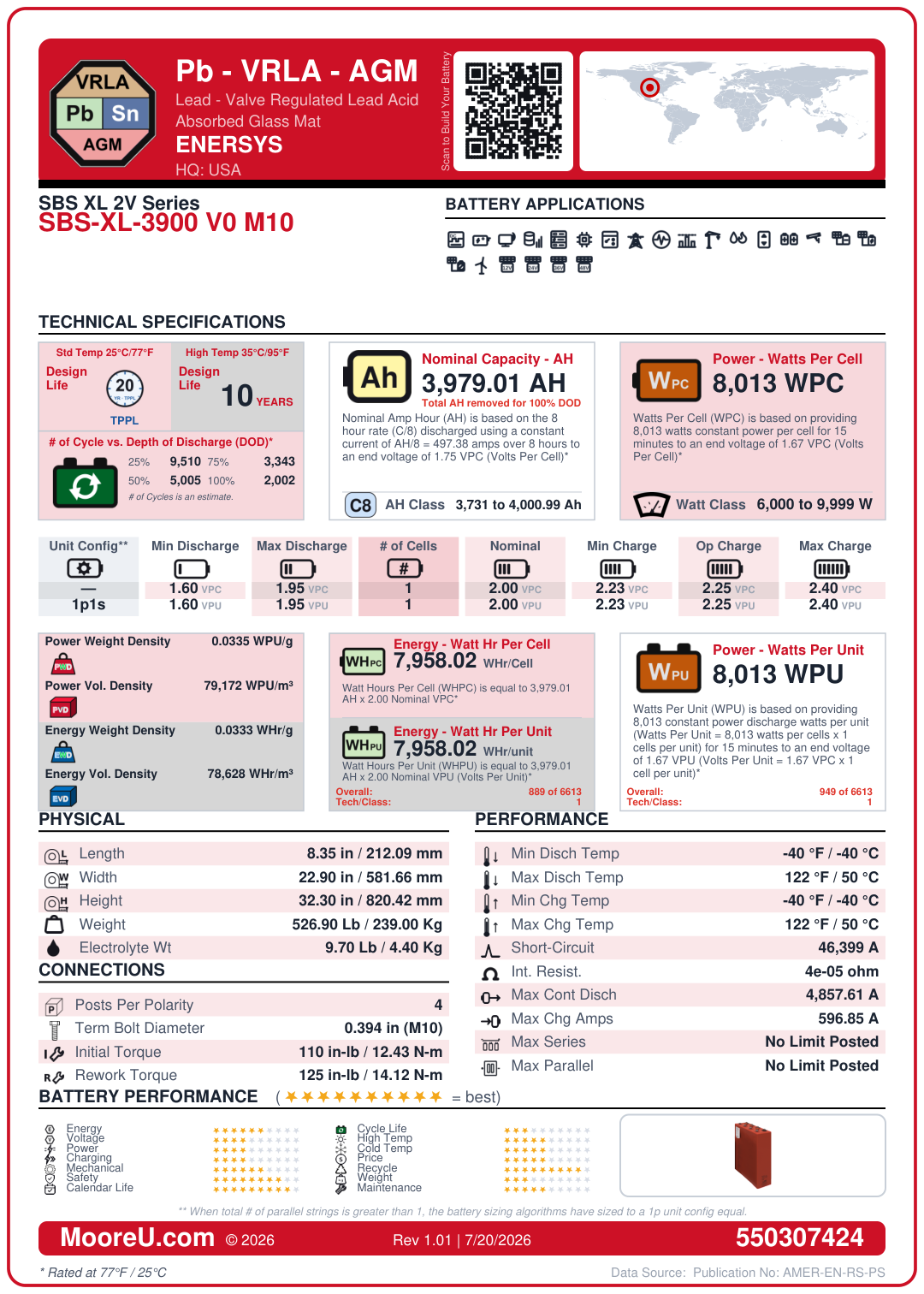

Front of card
Back of card
Furnish New Battery Enersys SBS XL 2V Series SBS XL 3900 V0 M10
Technology: Pb_Sn_VRLA_AGM.pngFurnish New Battery Enersys SBS XL 2V Series SBS XL 3900 V0 M10
$58.85
Build my Battery
Recycle My Battery
Furnish New Battery Enersys SBS XL 2V Series SBS XL 3900 V0 M10
| Battery Model | Enersys SBS XL 2V Series SBS XL 3900 V0 M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 3979.008 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 8 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 50°C |
| Charge Temp Range | -40°C to 50°C |
| ISC Amps | 46399 |
| Internal Resistance | 4.0E-5 Ohms |
| Dimensions (L x W x H) | 8.35 x 22.9 x 32.3 in |
| Weight | 526.9 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M10 |
| FOB | T |
| Max Continuous Discharge | 4857.6106 Amps |
| Max Charge Amps | 596.8512 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 8013 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 9.702 lbs |
