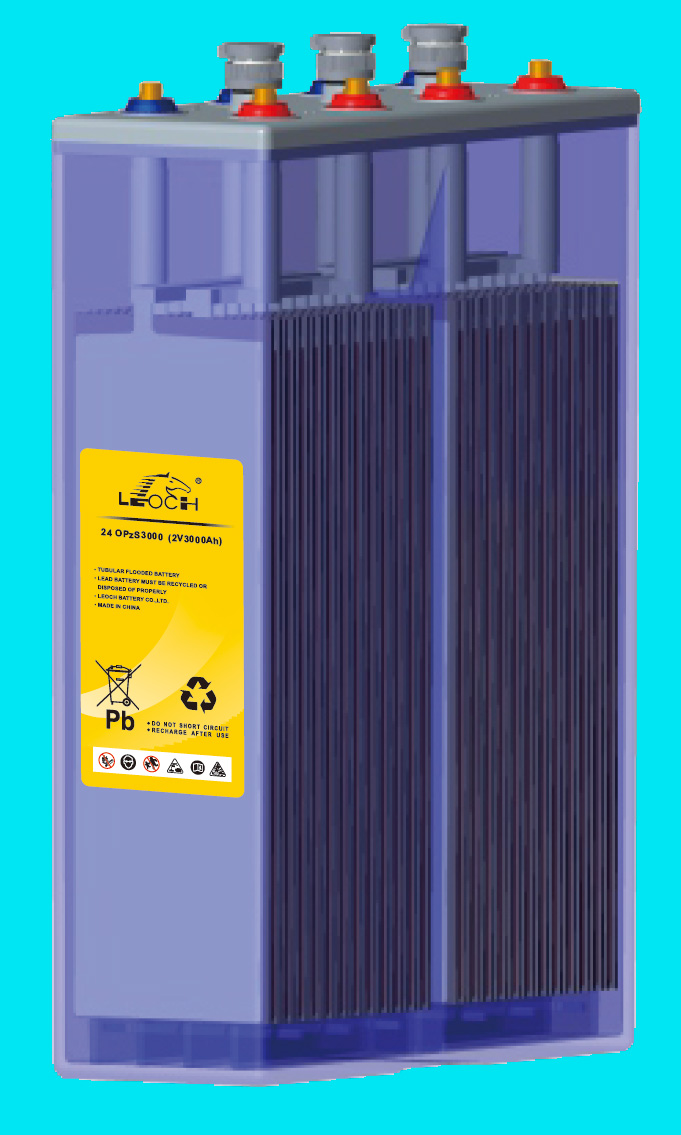

Furnish New Battery Leoch Battery OPzS Series 24OPzS3000 SAN M10

Technology: Lead_Acid_Over120lbs
Furnish New Battery Leoch Battery OPzS Series 24OPzS3000 SAN M10

$3,061.89

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Leoch Battery OPzS Series 24OPzS3000 SAN M10
Adjustment	1
AH Per String	3184.0512
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	1
Nominal VPC	2
Model KWH	6
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 55°C
Charge Temp Range	0°C to 45°C
ISC Amps	18090
Internal Resistance	0.00038 Ohms
Dimensions (L x W x H)	22.68 x 8.35 x 32.56 in
Weight	494.56 lbs
Number of Posts	4
Terminal Bolt Diameter	0.393701 in (M10 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	SAN
Terminal	M10
FOB	T
Max Continuous Discharge	24000 Amps
Max Charge Amps	477.60768 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	2860
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	6.4042 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 108 04m 19 173 08 346 31 692 020 04n 22 677 08 346 32 559 016 28 240 55 000 0585 04 2 1 000 3RP Light Gray 113 33 4 259 844 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 20, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	9.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 120 04m 19 173 08 346 31 692 020 04n 22 677 08 346 32 559 016 28 240 55 000 0700 05 2 1 000 3RP Light Gray 125 33 4 286 986 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 20, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	10.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 132 04m 19 173 08 346 31 692 024 04n 22 677 08 346 32 559 020 28 240 55 000 0725 05 2 1 000 3RP Light Gray 137 33 4 314 1039 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 24, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	11.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 144 04m 19 173 08 346 31 692 028 04n 22 677 08 346 32 559 024 28 240 55 000 0790 06 2 1 000 3RP Light Gray 149 33 4 341 1131 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 28, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	12.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 156 04m 19 173 08 346 31 692 028 04n 22 677 08 346 32 559 024 28 240 55 000 0815 06 2 1 000 3RP Light Gray 161 33 4 369 1184 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 28, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	13.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 168 04m 19 173 08 346 31 692 032 04n 22 677 08 346 32 559 028 28 240 55 000 0840 06 2 1 000 3RP Light Gray 173 33 4 396 1236 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 32, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	14.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 180 04m 19 173 08 346 31 692 032 04n 22 677 08 346 32 559 028 28 240 55 000 1005 07 2 1 000 3RP Light Gray 185 33 4 424 1429 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 32, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	15.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 192 04m 19 173 08 346 31 692 036 04n 22 677 08 346 32 559 032 28 240 55 000 1100 07 2 1 000 3RP Light Gray 197 33 4 451 1551 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 36, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	16.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 204 04m 19 173 08 346 31 692 040 04n 22 677 08 346 32 559 032 28 240 55 000 1200 08 2 1 000 3RP Light Gray 209 33 4 479 1679 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 40, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	17.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 216 04m 19 173 08 346 31 692 040 04n 22 677 08 346 32 559 036 28 240 55 000 1300 08 2 1 000 3RP Light Gray 221 33 4 506 1806 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 40, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	18.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 228 04m 19 173 08 346 31 692 044 04n 22 677 08 346 32 559 036 28 240 55 000 1400 09 2 1 000 3RP Light Gray 233 33 4 534 1934 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 44, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	19.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0191 N 0004 IND O02 04 240 04m 19 173 08 346 31 692 048 04n 22 677 08 346 32 559 040 28 240 55 000 1500 09 2 1 000 3RP Light Gray 245 33 4 561 2061 White	Battery Rack ID = 191, Appl = N, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 48, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	20.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 108 04ab 19 173 08 346 31 692 020 04n 22 677 08 346 32 559 016 28 240 55 000 0585 04 2 0 560 3RP Light Gray 113 33 4 259 844 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 20, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	9.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 120 04ab 19 173 08 346 31 692 020 04n 22 677 08 346 32 559 016 28 240 55 000 0700 05 2 0 560 3RP Light Gray 125 33 4 286 986 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 20, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	10.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 132 04ab 19 173 08 346 31 692 024 04n 22 677 08 346 32 559 020 28 240 55 000 0725 05 2 0 560 3RP Light Gray 137 33 4 314 1039 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 24, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	11.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 144 04ab 19 173 08 346 31 692 028 04n 22 677 08 346 32 559 024 28 240 55 000 0790 06 2 0 560 3RP Light Gray 149 33 4 341 1131 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 28, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	12.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 156 04ab 19 173 08 346 31 692 028 04n 22 677 08 346 32 559 024 28 240 55 000 0815 06 2 0 560 3RP Light Gray 161 33 4 369 1184 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 28, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	13.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 168 04ab 19 173 08 346 31 692 032 04n 22 677 08 346 32 559 028 28 240 55 000 0840 06 2 0 560 3RP Light Gray 173 33 4 396 1236 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 32, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	14.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 180 04ab 19 173 08 346 31 692 032 04n 22 677 08 346 32 559 028 28 240 55 000 1005 07 2 0 560 3RP Light Gray 185 33 4 424 1429 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 32, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	15.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 192 04ab 19 173 08 346 31 692 036 04n 22 677 08 346 32 559 032 28 240 55 000 1100 07 2 0 560 3RP Light Gray 197 33 4 451 1551 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 36, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	16.000 x 28.240 x 32.56 in	1 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 204 04ab 19 173 08 346 31 692 040 04n 22 677 08 346 32 559 032 28 240 55 000 1200 08 2 0 560 3RP Light Gray 209 33 4 479 1679 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 40, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	17.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 216 04ab 19 173 08 346 31 692 040 04n 22 677 08 346 32 559 036 28 240 55 000 1300 08 2 0 560 3RP Light Gray 221 33 4 506 1806 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 40, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	18.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 228 04ab 19 173 08 346 31 692 044 04n 22 677 08 346 32 559 036 28 240 55 000 1400 09 2 0 560 3RP Light Gray 233 33 4 534 1934 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 44, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	19.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0169 U 0004 IND O02 04 240 04ab 19 173 08 346 31 692 048 04n 22 677 08 346 32 559 040 28 240 55 000 1500 09 2 0 560 3RP Light Gray 245 33 4 561 2061 White	Battery Rack ID = 169, Appl = U, Seismic = 0004, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04ab = OPzV2-2500 Perp, Min Model Max Unit Ct = 48, Model Max = 04n = OPzS2-3000 Perp, Max Model Max Uni	20.000 x 28.240 x 32.56 in	2 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 108 04a 04 055 04 055 15 354 050 04n 22 677 10 826 33 543 008 24 370 13 690 0126 03 2 0 440 3RP Light Gray 113 29 4 228 354 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 108, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 50, Model Max = 04n = OPzS2-3000, Max Model Max Unit	9.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 120 04a 04 055 04 055 15 354 056 04n 22 677 10 826 33 543 008 24 370 13 690 0135 03 2 0 440 3RP Light Gray 125 29 4 253 388 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 120, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 56, Model Max = 04n = OPzS2-3000, Max Model Max Unit	10.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 132 04a 04 055 04 055 15 354 062 04n 22 677 10 826 33 543 010 24 370 13 690 0147 03 2 0 440 3RP Light Gray 137 29 4 277 424 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 132, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 62, Model Max = 04n = OPzS2-3000, Max Model Max Unit	11.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 144 04a 04 055 04 055 15 354 068 04n 22 677 10 826 33 543 012 24 370 13 690 0169 04 2 0 440 3RP Light Gray 149 29 4 301 470 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 144, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 68, Model Max = 04n = OPzS2-3000, Max Model Max Unit	12.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 156 04a 04 055 04 055 15 354 074 04n 22 677 10 826 33 543 012 24 370 13 690 0178 04 2 0 440 3RP Light Gray 161 29 4 326 504 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 156, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 74, Model Max = 04n = OPzS2-3000, Max Model Max Unit	13.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 168 04a 04 055 04 055 15 354 080 04n 22 677 10 826 33 543 014 24 370 13 690 0189 04 2 0 440 3RP Light Gray 173 29 4 350 539 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 168, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 80, Model Max = 04n = OPzS2-3000, Max Model Max Unit	14.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 180 04a 04 055 04 055 15 354 086 04n 22 677 10 826 33 543 014 24 370 13 690 0201 04 2 0 440 3RP Light Gray 185 29 4 374 575 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 180, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 86, Model Max = 04n = OPzS2-3000, Max Model Max Unit	15.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 192 04a 04 055 04 055 15 354 092 04n 22 677 10 826 33 543 016 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 92, Model Max = 04n = OPzS2-3000, Max Model Max Unit	16.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 204 04a 04 055 04 055 15 354 098 04n 22 677 10 826 33 543 016 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 98, Model Max = 04n = OPzS2-3000, Max Model Max Unit	17.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 216 04a 04 055 04 055 15 354 104 04n 22 677 10 826 33 543 018 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 104, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 228 04a 04 055 04 055 15 354 110 04n 22 677 10 826 33 543 018 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 110, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0148 U 0000 IND O02 06 240 04a 04 055 04 055 15 354 116 04n 22 677 10 826 33 543 020 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 148, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 116, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 108 04a 04 055 04 055 15 354 075 04n 22 677 10 826 33 543 012 37 620 18 690 0185 03 2 0 440 3RP Light Gray 113 42 4 332 517 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 108, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 75, Model Max = 04n = OPzS2-3000, Max Model Max Unit	9.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 120 04a 04 055 04 055 15 354 084 04n 22 677 10 826 33 543 012 37 620 18 690 0198 03 2 0 440 3RP Light Gray 125 42 4 367 565 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 120, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 84, Model Max = 04n = OPzS2-3000, Max Model Max Unit	10.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 132 04a 04 055 04 055 15 354 093 04n 22 677 10 826 33 543 015 37 620 18 690 0213 03 2 0 440 3RP Light Gray 137 42 4 402 615 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 132, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 93, Model Max = 04n = OPzS2-3000, Max Model Max Unit	11.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 144 04a 04 055 04 055 15 354 102 04n 22 677 10 826 33 543 018 37 620 18 690 0243 04 2 0 440 3RP Light Gray 149 42 4 438 681 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 144, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 102, Model Max = 04n = OPzS2-3000, Max Model Max Uni	12.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 156 04a 04 055 04 055 15 354 111 04n 22 677 10 826 33 543 018 37 620 18 690 0264 04 2 0 440 3RP Light Gray 161 42 4 473 737 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 156, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 111, Model Max = 04n = OPzS2-3000, Max Model Max Uni	13.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 168 04a 04 055 04 055 15 354 120 04n 22 677 10 826 33 543 021 37 620 18 690 0277 04 2 0 440 3RP Light Gray 173 42 4 508 785 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 168, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 120, Model Max = 04n = OPzS2-3000, Max Model Max Uni	14.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 180 04a 04 055 04 055 15 354 129 04n 22 677 10 826 33 543 021 37 620 18 690 0292 04 2 0 440 3RP Light Gray 185 42 4 544 836 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 180, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 129, Model Max = 04n = OPzS2-3000, Max Model Max Uni	15.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 192 04a 04 055 04 055 15 354 138 04n 22 677 10 826 33 543 024 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 192, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 138, Model Max = 04n = OPzS2-3000, Max Model Max Uni	16.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 204 04a 04 055 04 055 15 354 147 04n 22 677 10 826 33 543 024 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 204, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 147, Model Max = 04n = OPzS2-3000, Max Model Max Uni	17.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 216 04a 04 055 04 055 15 354 156 04n 22 677 10 826 33 543 027 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 216, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 156, Model Max = 04n = OPzS2-3000, Max Model Max Uni	18.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 228 04a 04 055 04 055 15 354 165 04n 22 677 10 826 33 543 027 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 228, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 165, Model Max = 04n = OPzS2-3000, Max Model Max Uni	19.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0149 U 0000 IND O02 07 240 04a 04 055 04 055 15 354 174 04n 22 677 10 826 33 543 030 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 149, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 174, Model Max = 04n = OPzS2-3000, Max Model Max Uni	20.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 108 04a 04 055 04 055 15 354 100 04n 22 677 10 826 33 543 016 31 620 47 000 0353 04 2 0 560 3RP Light Gray 113 36 4 285 638 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 100, Model Max = 04n = OPzS2-3000, Max Model M	9.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 120 04a 04 055 04 055 15 354 112 04n 22 677 10 826 33 543 016 31 620 47 000 0375 04 2 0 560 3RP Light Gray 125 36 4 315 690 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 112, Model Max = 04n = OPzS2-3000, Max Model M	10.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 132 04a 04 055 04 055 15 354 124 04n 22 677 10 826 33 543 020 31 620 47 000 0397 04 2 0 560 3RP Light Gray 137 36 4 346 743 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 124, Model Max = 04n = OPzS2-3000, Max Model M	11.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 144 04a 04 055 04 055 15 354 136 04n 22 677 10 826 33 543 024 31 620 47 000 0418 04 2 0 560 3RP Light Gray 149 36 4 376 794 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 136, Model Max = 04n = OPzS2-3000, Max Model M	12.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 156 04a 04 055 04 055 15 354 148 04n 22 677 10 826 33 543 024 31 620 47 000 0481 05 2 0 560 3RP Light Gray 161 36 4 406 887 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 148, Model Max = 04n = OPzS2-3000, Max Model M	13.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 168 04a 04 055 04 055 15 354 160 04n 22 677 10 826 33 543 028 31 620 47 000 0502 05 2 0 560 3RP Light Gray 173 36 4 437 939 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 160, Model Max = 04n = OPzS2-3000, Max Model M	14.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 180 04a 04 055 04 055 15 354 172 04n 22 677 10 826 33 543 028 31 620 47 000 0524 05 2 0 560 3RP Light Gray 185 36 4 467 991 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 172, Model Max = 04n = OPzS2-3000, Max Model M	15.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 192 04a 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 31 620 47 000 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 204 04a 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 31 620 47 000 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 216 04a 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 31 620 47 000 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 228 04a 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 31 620 47 000 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0150 U 0000 IND O02 04 240 04a 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 47 000 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 150, Appl = U, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 108 04o 04 055 04 055 15 354 100 04n 22 677 10 826 33 543 016 24 370 13 690 0126 03 2 0 440 3RP Light Gray 113 29 4 228 354 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 100, Model Max = 04n = OPzS2-3000, Max Model M	9.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 120 04o 04 055 04 055 15 354 112 04n 22 677 10 826 33 543 020 24 370 13 690 0135 03 2 0 440 3RP Light Gray 125 29 4 253 388 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 112, Model Max = 04n = OPzS2-3000, Max Model M	10.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 132 04o 04 055 04 055 15 354 124 04n 22 677 10 826 33 543 020 24 370 13 690 0147 03 2 0 440 3RP Light Gray 137 29 4 277 424 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 124, Model Max = 04n = OPzS2-3000, Max Model M	11.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 144 04o 04 055 04 055 15 354 136 04n 22 677 10 826 33 543 024 24 370 13 690 0169 04 2 0 440 3RP Light Gray 149 29 4 301 470 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 136, Model Max = 04n = OPzS2-3000, Max Model M	12.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 156 04o 04 055 04 055 15 354 148 04n 22 677 10 826 33 543 024 24 370 13 690 0178 04 2 0 440 3RP Light Gray 161 29 4 326 504 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 148, Model Max = 04n = OPzS2-3000, Max Model M	13.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 168 04o 04 055 04 055 15 354 160 04n 22 677 10 826 33 543 028 24 370 13 690 0189 04 2 0 440 3RP Light Gray 173 29 4 350 539 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 160, Model Max = 04n = OPzS2-3000, Max Model M	14.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 180 04o 04 055 04 055 15 354 172 04n 22 677 10 826 33 543 028 24 370 13 690 0201 04 2 0 440 3RP Light Gray 185 29 4 374 575 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 172, Model Max = 04n = OPzS2-3000, Max Model M	15.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 24.370 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0173 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 173, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 24.370 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 108 04o 04 055 04 055 15 354 100 04n 22 677 10 826 33 543 016 37 620 18 690 0185 03 2 0 440 3RP Light Gray 113 42 4 332 517 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 100, Model Max = 04n = OPzS2-3000, Max Model M	9.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 120 04o 04 055 04 055 15 354 112 04n 22 677 10 826 33 543 020 37 620 18 690 0198 03 2 0 440 3RP Light Gray 125 42 4 367 565 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 112, Model Max = 04n = OPzS2-3000, Max Model M	10.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 132 04o 04 055 04 055 15 354 124 04n 22 677 10 826 33 543 020 37 620 18 690 0213 03 2 0 440 3RP Light Gray 137 42 4 402 615 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 124, Model Max = 04n = OPzS2-3000, Max Model M	11.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 144 04o 04 055 04 055 15 354 136 04n 22 677 10 826 33 543 024 37 620 18 690 0243 04 2 0 440 3RP Light Gray 149 42 4 438 681 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 136, Model Max = 04n = OPzS2-3000, Max Model M	12.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 156 04o 04 055 04 055 15 354 148 04n 22 677 10 826 33 543 024 37 620 18 690 0264 04 2 0 440 3RP Light Gray 161 42 4 473 737 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 148, Model Max = 04n = OPzS2-3000, Max Model M	13.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 168 04o 04 055 04 055 15 354 160 04n 22 677 10 826 33 543 028 37 620 18 690 0277 04 2 0 440 3RP Light Gray 173 42 4 508 785 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 160, Model Max = 04n = OPzS2-3000, Max Model M	14.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 180 04o 04 055 04 055 15 354 172 04n 22 677 10 826 33 543 028 37 620 18 690 0292 04 2 0 440 3RP Light Gray 185 42 4 544 836 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 172, Model Max = 04n = OPzS2-3000, Max Model M	15.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 37.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0174 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 174, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 37.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 108 04o 04 055 04 055 15 354 100 04n 22 677 10 826 33 543 016 31 620 43 500 0353 04 2 0 560 3RP Light Gray 113 36 4 285 638 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 108, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 100, Model Max = 04n = OPzS2-3000, Max Model M	9.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 120 04o 04 055 04 055 15 354 112 04n 22 677 10 826 33 543 020 31 620 43 500 0375 04 2 0 560 3RP Light Gray 125 36 4 315 690 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 120, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 112, Model Max = 04n = OPzS2-3000, Max Model M	10.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 132 04o 04 055 04 055 15 354 124 04n 22 677 10 826 33 543 020 31 620 43 500 0397 04 2 0 560 3RP Light Gray 137 36 4 346 743 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 132, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 124, Model Max = 04n = OPzS2-3000, Max Model M	11.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 144 04o 04 055 04 055 15 354 136 04n 22 677 10 826 33 543 024 31 620 43 500 0418 04 2 0 560 3RP Light Gray 149 36 4 376 794 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 144, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 136, Model Max = 04n = OPzS2-3000, Max Model M	12.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 156 04o 04 055 04 055 15 354 148 04n 22 677 10 826 33 543 024 31 620 43 500 0481 05 2 0 560 3RP Light Gray 161 36 4 406 887 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 156, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 148, Model Max = 04n = OPzS2-3000, Max Model M	13.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 168 04o 04 055 04 055 15 354 160 04n 22 677 10 826 33 543 028 31 620 43 500 0502 05 2 0 560 3RP Light Gray 173 36 4 437 939 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 168, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 160, Model Max = 04n = OPzS2-3000, Max Model M	14.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 180 04o 04 055 04 055 15 354 172 04n 22 677 10 826 33 543 028 31 620 43 500 0524 05 2 0 560 3RP Light Gray 185 36 4 467 991 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 180, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 172, Model Max = 04n = OPzS2-3000, Max Model M	15.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 192 04o 04 055 04 055 15 354 184 04n 22 677 10 826 33 543 032 31 620 43 500 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 184, Model Max = 04n = OPzS2-3000, Max Model M	16.000 x 31.620 x 33.54 in	1 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 204 04o 04 055 04 055 15 354 196 04n 22 677 10 826 33 543 032 31 620 43 500 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 196, Model Max = 04n = OPzS2-3000, Max Model M	17.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 216 04o 04 055 04 055 15 354 208 04n 22 677 10 826 33 543 036 31 620 43 500 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 208, Model Max = 04n = OPzS2-3000, Max Model M	18.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 228 04o 04 055 04 055 15 354 220 04n 22 677 10 826 33 543 036 31 620 43 500 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 220, Model Max = 04n = OPzS2-3000, Max Model M	19.000 x 31.620 x 33.54 in	2 batteries
MooreU com Furnish New Battery Rack System 0175 N 0000 IND O02 04 240 04o 04 055 04 055 15 354 232 04n 22 677 10 826 33 543 040 31 620 43 500 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 175, Appl = N, Seismic = 0000, Master Model = IND_O02, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 04o = OPzV2-200 Perp or Parallel, Min Model Max Unit Ct = 232, Model Max = 04n = OPzS2-3000, Max Model M	20.000 x 31.620 x 33.54 in	2 batteries
