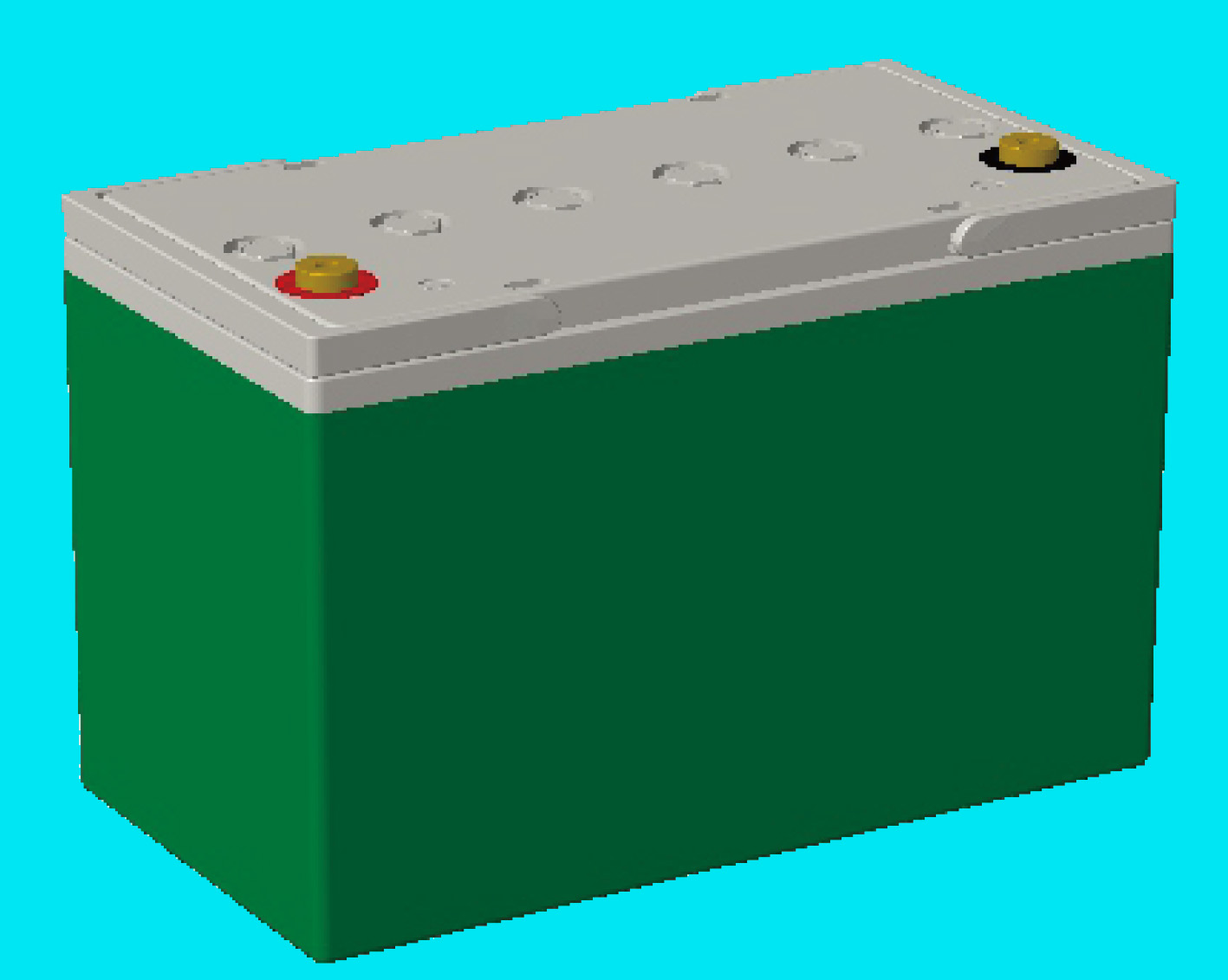

Furnish New Battery Leoch Battery LRC Series LRC12 80 ABS M8

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Leoch Battery LRC Series LRC12 80 ABS M8

$458.27

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Leoch Battery LRC Series LRC12 80 ABS M8
Adjustment	1
AH Per String	81.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.95
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 40°C
ISC Amps	800
Internal Resistance	0.007 Ohms
Dimensions (L x W x H)	13 x 6.81 x 8.58 in
Weight	72.8 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	110 / 125 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	50 Amps
Max Charge Amps	30 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	120
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	16.016 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 1a Group 31 TT 12V 0 004 13 440 06 820 09 640 N N 2 2 1 29 000 14 000 28 000 N 4 0 750 Gray 02	Battery Enclosure ID = 1a, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 4, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 2, Tiers = 2, Shelves = 1, W =	29.000 x 14.500 x 9.64 in	4 batteries
MooreU com Furnish New Battery Enclosure 2a Group 31 TT 12V 0 008 13 440 06 820 09 640 N N 4 2 1 34 000 15 250 41 140 N 4 0 750 Gray 02	Battery Enclosure ID = 2a, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 8, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 2, Shelves = 1, W =	34.000 x 15.250 x 9.64 in	8 batteries
MooreU com Furnish New Battery Enclosure 2e Group 31 TT 12V 0 012 13 440 06 820 09 640 N N 4 3 2 34 000 15 250 41 140 N 4 0 750 Gray 02	Battery Enclosure ID = 2e, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 12, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 3, Shelves = 2, W	34.000 x 15.250 x 9.64 in	12 batteries
MooreU com Furnish New Battery Enclosure 3c Group 31 TT 12V 0 008 13 440 06 820 09 640 N N 4 2 1 34 000 15 250 41 140 N 4 0 750 Aluminum	Battery Enclosure ID = 3c, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 8, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 2, Shelves = 1, W =	34.000 x 15.250 x 9.64 in	8 batteries
MooreU com Furnish New Battery Enclosure 4b Group 31 TT 12V 0 012 13 440 06 820 09 640 N N 4 3 2 34 000 15 250 55 000 N 4 0 750 Gray 02	Battery Enclosure ID = 4b, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 12, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 3, Shelves = 2, W	34.000 x 15.250 x 9.64 in	12 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 084 02c 12 913 06 771 08 661 015 02f 20 944 08 149 08 622 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 15, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 9	7.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 096 02c 12 913 06 771 08 661 018 02f 20 944 08 149 08 622 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 18, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 12	8.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 108 02c 12 913 06 771 08 661 021 02f 20 944 08 149 08 622 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 21, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	9.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 120 02c 12 913 06 771 08 661 024 02f 20 944 08 149 08 622 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 24, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	10.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 132 02c 12 913 06 771 08 661 027 02f 20 944 08 149 08 622 015 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 27, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	11.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 144 02c 12 913 06 771 08 661 030 02f 20 944 08 149 08 622 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 30, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	12.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 156 02c 12 913 06 771 08 661 033 02f 20 944 08 149 08 622 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 33, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	13.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 168 02c 12 913 06 771 08 661 036 02f 20 944 08 149 08 622 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 36, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	14.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 180 02c 12 913 06 771 08 661 039 02f 20 944 08 149 08 622 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 39, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	15.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 192 02c 12 913 06 771 08 661 042 02f 20 944 08 149 08 622 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 42, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	16.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 204 02c 12 913 06 771 08 661 045 02f 20 944 08 149 08 622 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 45, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	17.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 216 02c 12 913 06 771 08 661 045 02f 20 944 08 149 08 622 027 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 45, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	18.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 228 02c 12 913 06 771 08 661 048 02f 20 944 08 149 08 622 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 48, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 3	19.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 240 02c 12 913 06 771 08 661 051 02f 20 944 08 149 08 622 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 51, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 3	20.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 084 02c 12 913 06 771 08 661 015 02f 20 944 08 149 08 622 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 15, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 9	7.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 096 02c 12 913 06 771 08 661 018 02f 20 944 08 149 08 622 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 18, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 12	8.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 108 02c 12 913 06 771 08 661 021 02f 20 944 08 149 08 622 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 21, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	9.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 120 02c 12 913 06 771 08 661 024 02f 20 944 08 149 08 622 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 24, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	10.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 132 02c 12 913 06 771 08 661 027 02f 20 944 08 149 08 622 015 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 27, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	11.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 144 02c 12 913 06 771 08 661 030 02f 20 944 08 149 08 622 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 30, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 1	12.000 x 22.330 x 8.62 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 156 02c 12 913 06 771 08 661 033 02f 20 944 08 149 08 622 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 33, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	13.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 168 02c 12 913 06 771 08 661 036 02f 20 944 08 149 08 622 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 36, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	14.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 180 02c 12 913 06 771 08 661 039 02f 20 944 08 149 08 622 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 39, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	15.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 192 02c 12 913 06 771 08 661 042 02f 20 944 08 149 08 622 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 42, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	16.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 204 02c 12 913 06 771 08 661 045 02f 20 944 08 149 08 622 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 45, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	17.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 216 02c 12 913 06 771 08 661 045 02f 20 944 08 149 08 622 027 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 45, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 2	18.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 228 02c 12 913 06 771 08 661 048 02f 20 944 08 149 08 622 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 48, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 3	19.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 240 02c 12 913 06 771 08 661 051 02f 20 944 08 149 08 622 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02c = OPzV12-80 Perp, Min Model Max Unit Ct = 51, Model Max = 02f = OPzV12-140 Perp, Max Model Max Unit Ct = 3	20.000 x 22.330 x 8.62 in	3 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 180 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 17 620 61 000 0335 04 2 0 440 3RP Light Gray 185 22 4 288 623 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	15.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 192 02a 06 653 10 236 08 582 081 02i 20 511 10 314 08 858 024 17 620 61 000 0380 05 2 0 440 3RP Light Gray 197 22 4 307 687 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 81, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	16.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 204 02a 06 653 10 236 08 582 087 02i 20 511 10 314 08 858 027 17 620 61 000 0395 05 2 0 440 3RP Light Gray 209 22 4 326 721 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 87, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27	17.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 216 02a 06 653 10 236 08 582 093 02i 20 511 10 314 08 858 030 17 620 61 000 0410 05 2 0 440 3RP Light Gray 221 22 4 344 754 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 93, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	18.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 228 02a 06 653 10 236 08 582 099 02i 20 511 10 314 08 858 030 17 620 61 000 0425 05 2 0 440 3RP Light Gray 233 22 4 363 788 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 99, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	19.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 240 02a 06 653 10 236 08 582 105 02i 20 511 10 314 08 858 033 17 620 61 000 0440 05 2 0 440 3RP Light Gray 245 22 4 382 822 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 105, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 3	20.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 084 02a 06 653 10 236 08 582 022 02i 20 511 10 314 08 858 006 24 370 13 690 0104 03 2 0 440 3RP Light Gray 89 29 4 180 284 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 84, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 22, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 6 ,	7.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 096 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 24 370 13 690 0113 03 2 0 440 3RP Light Gray 101 29 4 204 317 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 96, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8 ,	8.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 108 02a 06 653 10 236 08 582 030 02i 20 511 10 314 08 858 008 24 370 13 690 0126 03 2 0 440 3RP Light Gray 113 29 4 228 354 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 108, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	9.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 120 02a 06 653 10 236 08 582 034 02i 20 511 10 314 08 858 010 24 370 13 690 0135 03 2 0 440 3RP Light Gray 125 29 4 253 388 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 120, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 34, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	10.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 132 02a 06 653 10 236 08 582 036 02i 20 511 10 314 08 858 012 24 370 13 690 0147 03 2 0 440 3RP Light Gray 137 29 4 277 424 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 132, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 36, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	11.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 144 02a 06 653 10 236 08 582 040 02i 20 511 10 314 08 858 012 24 370 13 690 0169 04 2 0 440 3RP Light Gray 149 29 4 301 470 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 144, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 40, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	12.000 x 24.370 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 156 02a 06 653 10 236 08 582 044 02i 20 511 10 314 08 858 014 24 370 13 690 0178 04 2 0 440 3RP Light Gray 161 29 4 326 504 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 156, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 44, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	13.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 168 02a 06 653 10 236 08 582 048 02i 20 511 10 314 08 858 014 24 370 13 690 0189 04 2 0 440 3RP Light Gray 173 29 4 350 539 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 168, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 48, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	14.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 180 02a 06 653 10 236 08 582 052 02i 20 511 10 314 08 858 016 24 370 13 690 0201 04 2 0 440 3RP Light Gray 185 29 4 374 575 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 180, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 52, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	15.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 192 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 016 24 370 13 690 0223 05 2 0 440 3RP Light Gray 197 29 4 399 622 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	16.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 204 02a 06 653 10 236 08 582 058 02i 20 511 10 314 08 858 018 24 370 13 690 0233 05 2 0 440 3RP Light Gray 209 29 4 423 656 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 58, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	17.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 216 02a 06 653 10 236 08 582 062 02i 20 511 10 314 08 858 020 24 370 13 690 0243 05 2 0 440 3RP Light Gray 221 29 4 447 690 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 62, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	18.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 228 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 020 24 370 13 690 0264 06 2 0 440 3RP Light Gray 233 29 4 472 736 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	19.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0140 U 0000 IND O12 06 240 02a 06 653 10 236 08 582 070 02i 20 511 10 314 08 858 022 24 370 13 690 0275 06 2 0 440 3RP Light Gray 245 29 4 496 771 White	Battery Rack ID = 140, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 70, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 22	20.000 x 24.370 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 084 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 009 37 620 18 690 0154 03 2 0 440 3RP Light Gray 89 42 4 261 415 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 84, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 ,	7.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 096 02a 06 653 10 236 08 582 039 02i 20 511 10 314 08 858 012 37 620 18 690 0168 03 2 0 440 3RP Light Gray 101 42 4 297 465 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 96, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 39, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	8.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 108 02a 06 653 10 236 08 582 045 02i 20 511 10 314 08 858 012 37 620 18 690 0185 03 2 0 440 3RP Light Gray 113 42 4 332 517 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 108, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 45, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	9.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 120 02a 06 653 10 236 08 582 051 02i 20 511 10 314 08 858 015 37 620 18 690 0198 03 2 0 440 3RP Light Gray 125 42 4 367 565 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 120, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 51, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15	10.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 132 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 018 37 620 18 690 0213 03 2 0 440 3RP Light Gray 137 42 4 402 615 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 132, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	11.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 144 02a 06 653 10 236 08 582 060 02i 20 511 10 314 08 858 018 37 620 18 690 0243 04 2 0 440 3RP Light Gray 149 42 4 438 681 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 144, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 60, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	12.000 x 37.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 156 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 021 37 620 18 690 0264 04 2 0 440 3RP Light Gray 161 42 4 473 737 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 156, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	13.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 168 02a 06 653 10 236 08 582 072 02i 20 511 10 314 08 858 021 37 620 18 690 0277 04 2 0 440 3RP Light Gray 173 42 4 508 785 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 168, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 72, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	14.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 180 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 37 620 18 690 0292 04 2 0 440 3RP Light Gray 185 42 4 544 836 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 180, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	15.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 192 02a 06 653 10 236 08 582 081 02i 20 511 10 314 08 858 024 37 620 18 690 0307 04 2 0 440 3RP Light Gray 197 42 4 579 886 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 192, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 81, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24	16.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 204 02a 06 653 10 236 08 582 087 02i 20 511 10 314 08 858 027 37 620 18 690 0337 05 2 0 440 3RP Light Gray 209 42 4 614 951 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 204, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 87, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27	17.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 216 02a 06 653 10 236 08 582 093 02i 20 511 10 314 08 858 030 37 620 18 690 0352 05 2 0 440 3RP Light Gray 221 42 4 649 1001 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 216, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 93, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	18.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 228 02a 06 653 10 236 08 582 099 02i 20 511 10 314 08 858 030 37 620 18 690 0367 05 2 0 440 3RP Light Gray 233 42 4 685 1052 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 228, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 99, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30	19.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0141 U 0000 IND O12 07 240 02a 06 653 10 236 08 582 105 02i 20 511 10 314 08 858 033 37 620 18 690 0382 05 2 0 440 3RP Light Gray 245 42 4 720 1102 White	Battery Rack ID = 141, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 105, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 3	20.000 x 37.620 x 8.86 in	5 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 084 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 018 31 620 43 500 0270 03 2 0 560 3RP Light Gray 89 36 4 224 494 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 84, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit	7.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 096 02a 06 653 10 236 08 582 078 02i 20 511 10 314 08 858 024 31 620 43 500 0291 03 2 0 560 3RP Light Gray 101 36 4 255 546 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 96, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 78, Model Max = 02i = OPzV12-200, Max Model Max Unit	8.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 108 02a 06 653 10 236 08 582 090 02i 20 511 10 314 08 858 024 31 620 43 500 0353 04 2 0 560 3RP Light Gray 113 36 4 285 638 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 108, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 90, Model Max = 02i = OPzV12-200, Max Model Max Uni	9.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 120 02a 06 653 10 236 08 582 102 02i 20 511 10 314 08 858 030 31 620 43 500 0375 04 2 0 560 3RP Light Gray 125 36 4 315 690 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 120, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 102, Model Max = 02i = OPzV12-200, Max Model Max Un	10.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 132 02a 06 653 10 236 08 582 108 02i 20 511 10 314 08 858 036 31 620 43 500 0397 04 2 0 560 3RP Light Gray 137 36 4 346 743 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 132, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 108, Model Max = 02i = OPzV12-200, Max Model Max Un	11.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 144 02a 06 653 10 236 08 582 120 02i 20 511 10 314 08 858 036 31 620 43 500 0418 04 2 0 560 3RP Light Gray 149 36 4 376 794 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 144, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 120, Model Max = 02i = OPzV12-200, Max Model Max Un	12.000 x 31.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 156 02a 06 653 10 236 08 582 132 02i 20 511 10 314 08 858 042 31 620 43 500 0481 05 2 0 560 3RP Light Gray 161 36 4 406 887 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 156, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 132, Model Max = 02i = OPzV12-200, Max Model Max Un	13.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 168 02a 06 653 10 236 08 582 144 02i 20 511 10 314 08 858 042 31 620 43 500 0502 05 2 0 560 3RP Light Gray 173 36 4 437 939 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 168, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 144, Model Max = 02i = OPzV12-200, Max Model Max Un	14.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 180 02a 06 653 10 236 08 582 156 02i 20 511 10 314 08 858 048 31 620 43 500 0524 05 2 0 560 3RP Light Gray 185 36 4 467 991 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 180, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 156, Model Max = 02i = OPzV12-200, Max Model Max Un	15.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 192 02a 06 653 10 236 08 582 162 02i 20 511 10 314 08 858 048 31 620 43 500 0546 05 2 0 560 3RP Light Gray 197 36 4 497 1043 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 192, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 162, Model Max = 02i = OPzV12-200, Max Model Max Un	16.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 204 02a 06 653 10 236 08 582 174 02i 20 511 10 314 08 858 054 31 620 43 500 0608 06 2 0 560 3RP Light Gray 209 36 4 528 1136 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 204, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 174, Model Max = 02i = OPzV12-200, Max Model Max Un	17.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 216 02a 06 653 10 236 08 582 186 02i 20 511 10 314 08 858 060 31 620 43 500 0630 06 2 0 560 3RP Light Gray 221 36 4 558 1188 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 216, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 186, Model Max = 02i = OPzV12-200, Max Model Max Un	18.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 228 02a 06 653 10 236 08 582 198 02i 20 511 10 314 08 858 060 31 620 43 500 0652 06 2 0 560 3RP Light Gray 233 36 4 588 1240 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 228, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 198, Model Max = 02i = OPzV12-200, Max Model Max Un	19.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0142 U 0000 IND O12 08 240 02a 06 653 10 236 08 582 210 02i 20 511 10 314 08 858 066 31 620 43 500 0674 06 2 0 560 3RP Light Gray 245 36 4 619 1293 White	Battery Rack ID = 142, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 08_3_steps_2_tiers, Total Length = 240, Number Row = 6, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 210, Model Max = 02i = OPzV12-200, Max Model Max Un	20.000 x 31.620 x 8.86 in	4 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 084 02d 20 944 08 149 08 622 009 02i 20 510 10 310 08 860 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 9, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 , Rack W =	7.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 096 02d 20 944 08 149 08 622 012 02i 20 510 10 310 08 860 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack W	8.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 108 02d 20 944 08 149 08 622 012 02i 20 510 10 310 08 860 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack	9.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 120 02d 20 944 08 149 08 622 015 02i 20 510 10 310 08 860 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15 , Rack	10.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 132 02d 20 944 08 149 08 622 015 02i 20 510 10 310 08 860 018 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	11.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 144 02d 20 944 08 149 08 622 018 02i 20 510 10 310 08 860 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 18, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	12.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 156 02d 20 944 08 149 08 622 021 02i 20 510 10 310 08 860 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	13.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 168 02d 20 944 08 149 08 622 021 02i 20 510 10 310 08 860 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	14.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 180 02d 20 944 08 149 08 622 024 02i 20 510 10 310 08 860 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	15.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 192 02d 20 944 08 149 08 622 024 02i 20 510 10 310 08 860 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	16.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 204 02d 20 944 08 149 08 622 027 02i 20 510 10 310 08 860 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27 , Rack	17.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 216 02d 20 944 08 149 08 622 027 02i 20 510 10 310 08 860 030 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	18.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 228 02d 20 944 08 149 08 622 030 02i 20 510 10 310 08 860 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	19.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0143 U 0000 IND O12 03 240 02d 20 944 08 149 08 622 033 02i 20 510 10 310 08 860 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 143, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 33 , Rack	20.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 084 02d 06 653 10 236 08 582 009 02i 06 653 10 236 08 307 009 22 330 59 000 0293 03 2 0 560 3RP Light Gray 89 27 4 167 460 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 9, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 , Rack W =	7.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 096 02d 06 653 10 236 08 582 012 02i 06 653 10 236 08 307 012 22 330 59 000 0302 03 2 0 560 3RP Light Gray 101 27 4 190 492 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack W	8.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 108 02d 06 653 10 236 08 582 012 02i 06 653 10 236 08 307 012 22 330 59 000 0311 03 2 0 560 3RP Light Gray 113 27 4 213 524 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 12, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12 , Rack	9.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 120 02d 06 653 10 236 08 582 015 02i 06 653 10 236 08 307 015 22 330 59 000 0390 04 2 0 560 3RP Light Gray 125 27 4 235 625 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15 , Rack	10.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 132 02d 06 653 10 236 08 582 015 02i 06 653 10 236 08 307 018 22 330 59 000 0399 04 2 0 560 3RP Light Gray 137 27 4 258 657 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 15, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	11.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 144 02d 06 653 10 236 08 582 018 02i 06 653 10 236 08 307 018 22 330 59 000 0409 04 2 0 560 3RP Light Gray 149 27 4 280 689 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 18, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18 , Rack	12.000 x 22.330 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 156 02d 06 653 10 236 08 582 021 02i 06 653 10 236 08 307 021 22 330 59 000 0487 05 2 0 560 3RP Light Gray 161 27 4 303 790 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	13.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 168 02d 06 653 10 236 08 582 021 02i 06 653 10 236 08 307 021 22 330 59 000 0496 05 2 0 560 3RP Light Gray 173 27 4 326 822 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 21, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21 , Rack	14.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 180 02d 06 653 10 236 08 582 024 02i 06 653 10 236 08 307 024 22 330 59 000 0506 05 2 0 560 3RP Light Gray 185 27 4 348 854 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 180, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	15.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 192 02d 06 653 10 236 08 582 024 02i 06 653 10 236 08 307 024 22 330 59 000 0550 06 2 0 560 3RP Light Gray 197 27 4 371 921 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 24 , Rack	16.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 204 02d 06 653 10 236 08 582 027 02i 06 653 10 236 08 307 027 22 330 59 000 0580 06 2 0 560 3RP Light Gray 209 27 4 394 974 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 27 , Rack	17.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 216 02d 06 653 10 236 08 582 027 02i 06 653 10 236 08 307 030 22 330 59 000 0600 07 2 0 560 3RP Light Gray 221 27 4 416 1016 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	18.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 228 02d 06 653 10 236 08 582 030 02i 06 653 10 236 08 307 030 22 330 59 000 0650 07 2 0 560 3RP Light Gray 233 27 4 439 1089 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 30 , Rack	19.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0144 N 0004 IND O12 03 240 02d 06 653 10 236 08 582 033 02i 06 653 10 236 08 307 033 22 330 59 000 0700 08 2 0 560 3RP Light Gray 245 27 4 462 1162 White	Battery Rack ID = 144, Appl = N, Seismic = 0004, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 02g = OPzV12-160, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 33 , Rack	20.000 x 22.330 x 8.86 in	3 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 156 02a 06 653 10 236 08 582 022 02i 20 511 10 314 08 858 007 12 000 11 190 0101 04 2 0 440 3RP Light Gray 161 17 4 188 289 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 156, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 22, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 7	13.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 168 02a 06 653 10 236 08 582 024 02i 20 511 10 314 08 858 007 12 000 11 190 0112 04 2 0 440 3RP Light Gray 173 17 4 202 314 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 168, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 24, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 7	14.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 180 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 12 000 11 190 0119 04 2 0 440 3RP Light Gray 185 17 4 217 336 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 180, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	15.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 192 02a 06 653 10 236 08 582 027 02i 20 511 10 314 08 858 008 12 000 11 190 0125 05 2 0 440 3RP Light Gray 197 17 4 231 356 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 192, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 27, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	16.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 204 02a 06 653 10 236 08 582 029 02i 20 511 10 314 08 858 009 12 000 11 190 0135 05 2 0 440 3RP Light Gray 209 17 4 245 380 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 204, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 29, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9	17.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 216 02a 06 653 10 236 08 582 031 02i 20 511 10 314 08 858 010 12 000 11 190 0145 05 2 0 440 3RP Light Gray 221 17 4 259 404 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 216, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 31, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	18.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 228 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 010 12 000 11 190 0155 05 2 0 440 3RP Light Gray 233 17 4 273 428 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 228, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	19.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0137 U 0000 IND O12 01 240 02a 06 653 10 236 08 582 035 02i 20 511 10 314 08 858 011 12 000 11 190 0165 05 2 0 440 3RP Light Gray 245 17 4 287 452 White	Battery Rack ID = 137, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 01_1_tier, Total Length = 240, Number Row = 1, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 35, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 11	20.000 x 12.000 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 084 02a 06 653 10 236 08 582 022 02i 20 511 10 314 08 858 006 17 620 32 690 0128 03 2 0 560 3RP Light Gray 89 22 4 138 266 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 84, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 22, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 6 ,	7.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 096 02a 06 653 10 236 08 582 026 02i 20 511 10 314 08 858 008 17 620 32 690 0137 03 2 0 560 3RP Light Gray 101 22 4 157 294 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 96, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 26, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8 ,	8.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 108 02a 06 653 10 236 08 582 030 02i 20 511 10 314 08 858 008 17 620 32 690 0148 03 2 0 560 3RP Light Gray 113 22 4 176 324 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 108, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 30, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 8	9.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 120 02a 06 653 10 236 08 582 034 02i 20 511 10 314 08 858 010 17 620 32 690 0159 03 2 0 560 3RP Light Gray 125 22 4 195 354 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 120, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 34, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 10	10.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 132 02a 06 653 10 236 08 582 036 02i 20 511 10 314 08 858 012 17 620 32 690 0161 03 2 0 560 3RP Light Gray 137 22 4 213 374 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 132, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 36, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	11.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 144 02a 06 653 10 236 08 582 040 02i 20 511 10 314 08 858 012 17 620 32 690 0199 04 2 0 560 3RP Light Gray 149 22 4 232 431 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 144, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 40, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	12.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 156 02a 06 653 10 236 08 582 044 02i 20 511 10 314 08 858 014 17 620 32 690 0209 04 2 0 560 3RP Light Gray 161 22 4 251 460 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 156, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 44, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	13.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 168 02a 06 653 10 236 08 582 048 02i 20 511 10 314 08 858 014 17 620 32 690 0217 04 2 0 560 3RP Light Gray 173 22 4 270 487 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 168, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 48, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 14	14.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 180 02a 06 653 10 236 08 582 052 02i 20 511 10 314 08 858 016 17 620 32 690 0228 04 2 0 560 3RP Light Gray 185 22 4 288 516 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 180, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 52, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	15.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 192 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 016 17 620 32 690 0260 05 2 0 560 3RP Light Gray 197 22 4 307 567 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 16	16.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 204 02a 06 653 10 236 08 582 058 02i 20 511 10 314 08 858 018 17 620 32 690 0270 05 2 0 560 3RP Light Gray 209 22 4 326 596 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 58, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	17.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 216 02a 06 653 10 236 08 582 062 02i 20 511 10 314 08 858 020 17 620 32 690 0278 05 2 0 560 3RP Light Gray 221 22 4 344 622 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 62, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	18.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 228 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 020 17 620 32 690 0290 05 2 0 560 3RP Light Gray 233 22 4 363 653 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 20	19.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0138 U 0000 IND O12 02 240 02a 06 653 10 236 08 582 070 02i 20 511 10 314 08 858 022 17 620 32 690 0299 05 2 0 560 3RP Light Gray 245 22 4 382 681 White	Battery Rack ID = 138, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 70, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 22	20.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 084 02a 06 653 10 236 08 582 033 02i 20 511 10 314 08 858 009 17 620 61 000 0185 03 2 0 440 3RP Light Gray 89 22 4 138 323 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 84, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 33, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 9 ,	7.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 096 02a 06 653 10 236 08 582 039 02i 20 511 10 314 08 858 012 17 620 61 000 0204 03 2 0 440 3RP Light Gray 101 22 4 157 361 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 96, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 39, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	8.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 108 02a 06 653 10 236 08 582 045 02i 20 511 10 314 08 858 012 17 620 61 000 0214 03 2 0 440 3RP Light Gray 113 22 4 176 390 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 108, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 45, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 12	9.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 120 02a 06 653 10 236 08 582 051 02i 20 511 10 314 08 858 015 17 620 61 000 0229 03 2 0 440 3RP Light Gray 125 22 4 195 424 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 120, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 51, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 15	10.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 132 02a 06 653 10 236 08 582 054 02i 20 511 10 314 08 858 018 17 620 61 000 0244 03 2 0 440 3RP Light Gray 137 22 4 213 457 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 132, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 54, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	11.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 144 02a 06 653 10 236 08 582 060 02i 20 511 10 314 08 858 018 17 620 61 000 0289 04 2 0 440 3RP Light Gray 149 22 4 232 521 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 144, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 60, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 18	12.000 x 17.620 x 8.86 in	1 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 156 02a 06 653 10 236 08 582 066 02i 20 511 10 314 08 858 021 17 620 61 000 0305 04 2 0 440 3RP Light Gray 161 22 4 251 556 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 156, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 66, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	13.000 x 17.620 x 8.86 in	2 batteries
MooreU com Furnish New Battery Rack System 0139 U 0000 IND O12 03 168 02a 06 653 10 236 08 582 072 02i 20 511 10 314 08 858 021 17 620 61 000 0320 04 2 0 440 3RP Light Gray 173 22 4 270 590 White	Battery Rack ID = 139, Appl = U, Seismic = 0000, Master Model = IND_O12, Rack Style = 03_3_tier, Total Length = 168, Number Row = 3, Min Model = 02a = OPzV12-45 Parallel, Min Model Max Unit Ct = 72, Model Max = 02i = OPzV12-200, Max Model Max Unit Ct = 21	14.000 x 17.620 x 8.86 in	2 batteries
