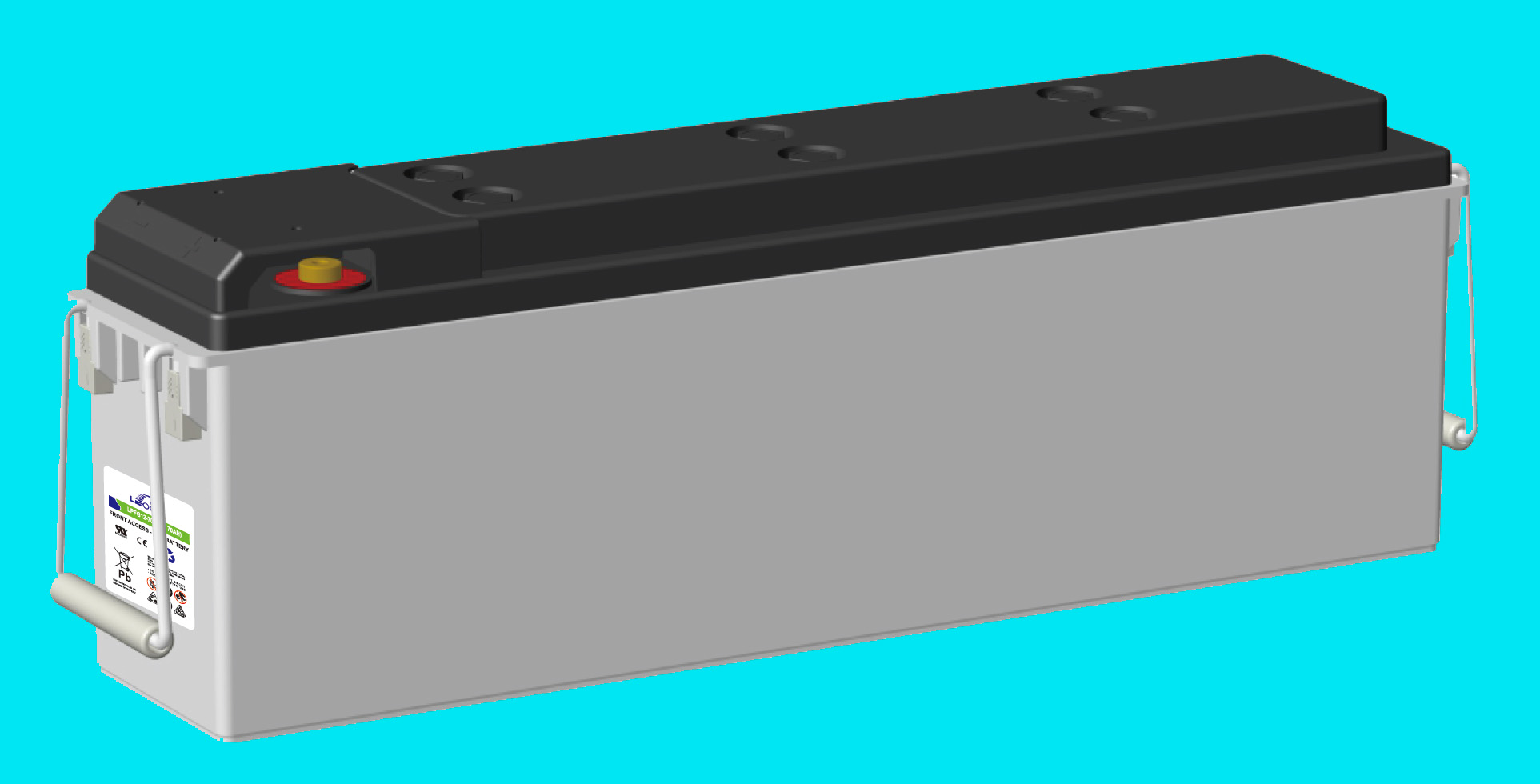

Furnish New Battery Leoch Battery LPFG Series LPFG12 70 ABS M6
Technology: Lead_Acid_VRLA_GELFurnish New Battery Leoch Battery LPFG Series LPFG12 70 ABS M6
$279.60
Furnish New Battery Leoch Battery LPFG Series LPFG12 70 ABS M6
| Battery Model | Leoch Battery LPFG Series LPFG12 70 ABS M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 63.04 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -20°C to 40°C |
| ISC Amps | 969 |
| Internal Resistance | 0.008 Ohms |
| Dimensions (L x W x H) | 22.2 x 4.49 x 7.36 in |
| Weight | 58.9 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | ABS |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 700 Amps |
| Max Charge Amps | 17.5 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 149 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 12.958 lbs |
