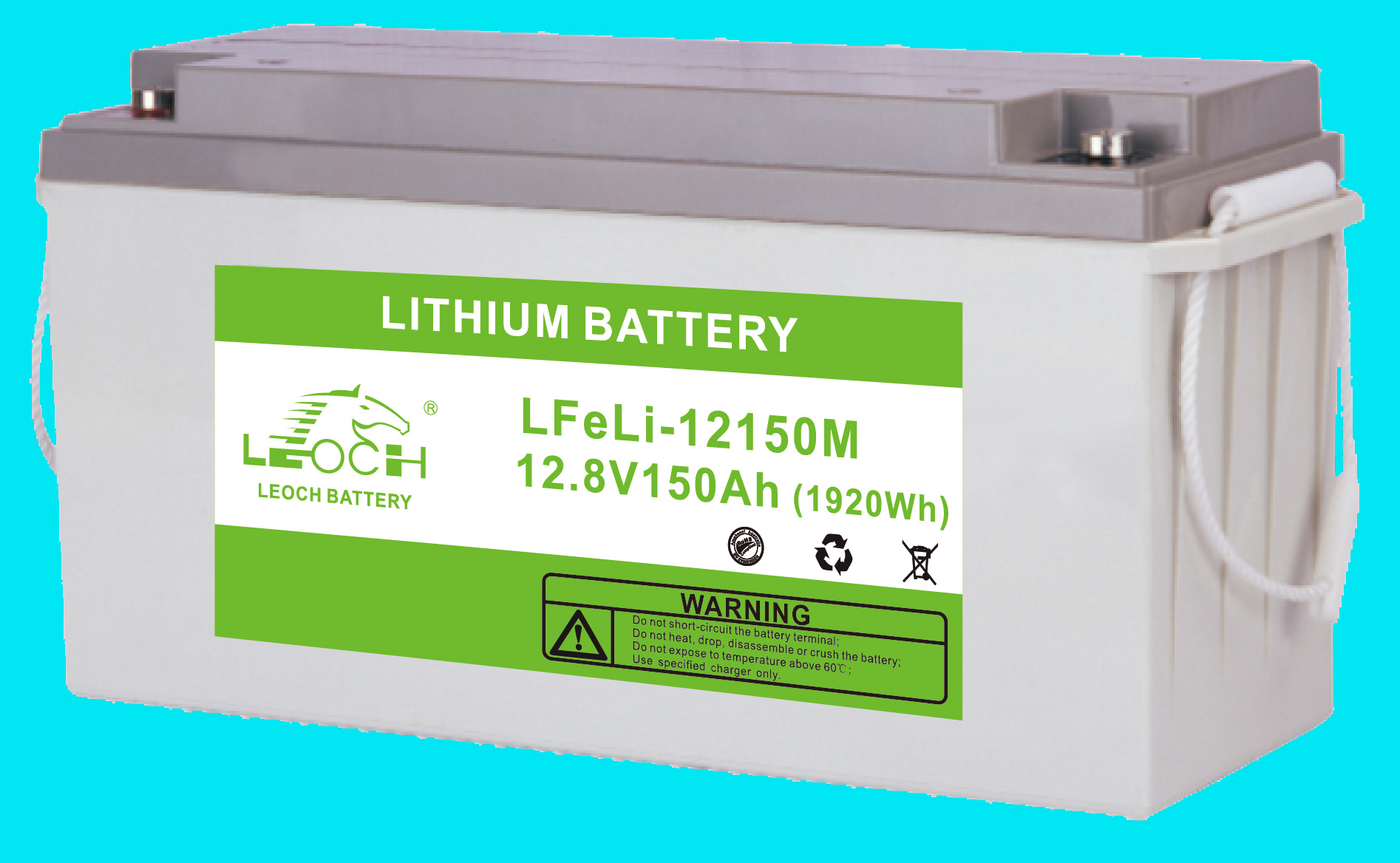

Furnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 150M 4s1p 3 6 M6
Technology: Lithium_Ion_LFPFurnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 150M 4s1p 3 6 M6
$2,515.52
Furnish New Battery Leoch Battery LFeLi Unit Series LFeLi 12 150M 4s1p 3 6 M6
| Battery Model | Leoch Battery LFeLi Unit Series LFeLi 12 150M 4s1p 3 6 M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 76.96 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 4 |
| Nominal VPC | 3.2 |
| Model KWH | 1 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 55°C |
| ISC Amps | 1200 |
| Internal Resistance | 0.002 Ohms |
| Dimensions (L x W x H) | 17.24 x 7.05 x 9.39 in |
| Weight | 46.96 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | ABS |
| Terminal | F2 |
| FOB | T |
| Max Continuous Discharge | 120 Amps |
| Max Charge Amps | 120 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 263 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 10.3312 lbs |
