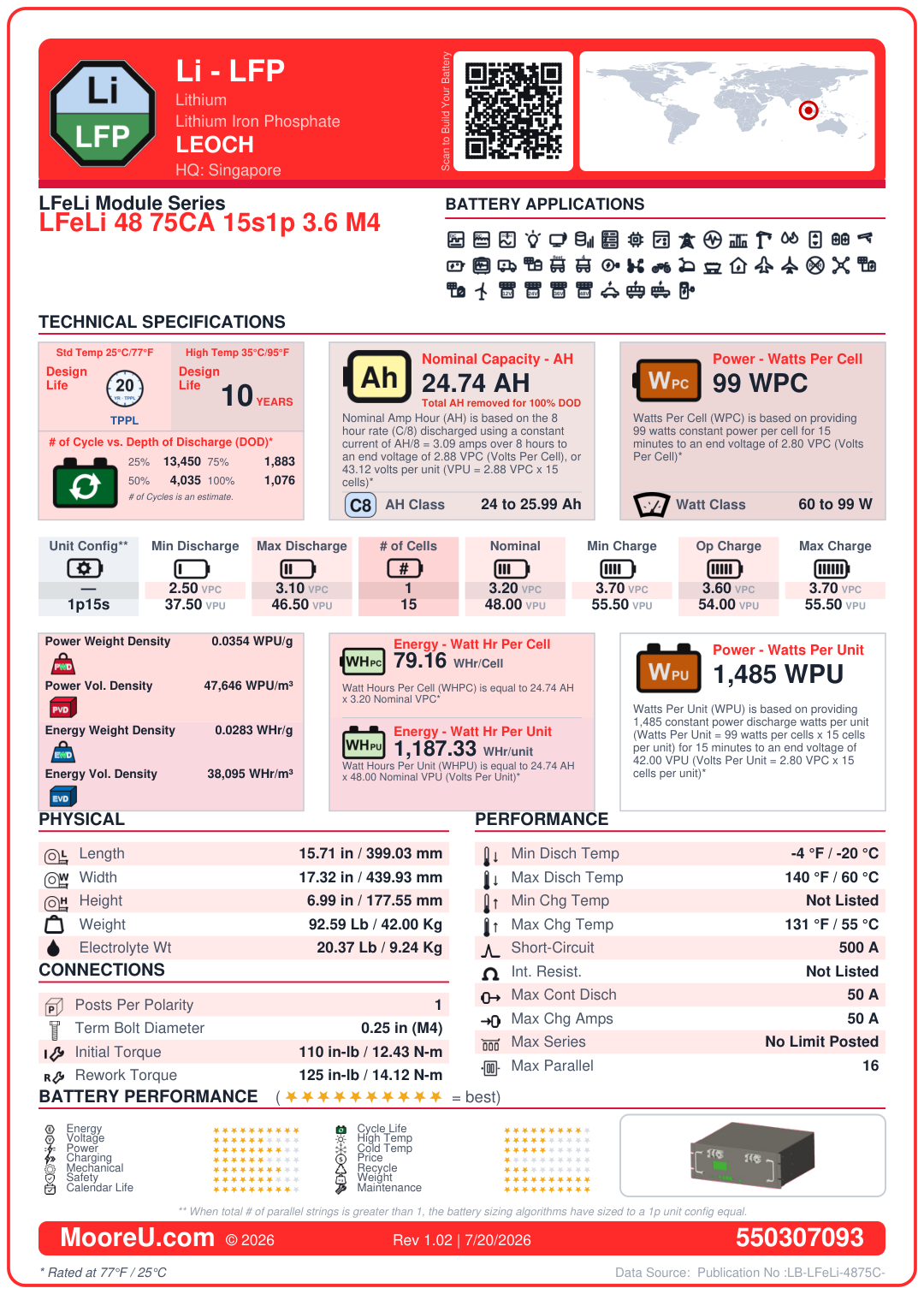

Furnish New Battery Leoch Battery LFeLi Module Series LFeLi 48 75CA 15s1p 3 6 M4
Technology: Li_LFP.pngFurnish New Battery Leoch Battery LFeLi Module Series LFeLi 48 75CA 15s1p 3 6 M4
$504.62
Build my Battery
Recycle My Battery
Furnish New Battery Leoch Battery LFeLi Module Series LFeLi 48 75CA 15s1p 3 6 M4
| Battery Model | Leoch Battery LFeLi Module Series LFeLi 48 75CA 15s1p 3 6 M4 |
|---|---|
| Adjustment | 1 |
| AH Per String | 24.736 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 15 |
| Nominal VPC | 3.2 |
| Model KWH | 1 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 55°C |
| ISC Amps | 500 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 15.71 x 17.32 x 6.99 in |
| Weight | 92.5942 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (M4 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M4 |
| FOB | T |
| Max Continuous Discharge | 50 Amps |
| Max Charge Amps | 50 Amps |
| Max In Series / Parallel | 0 / 16 |
| Watts Per Cell (15min 1.67) | 99 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 20.370724 lbs |
