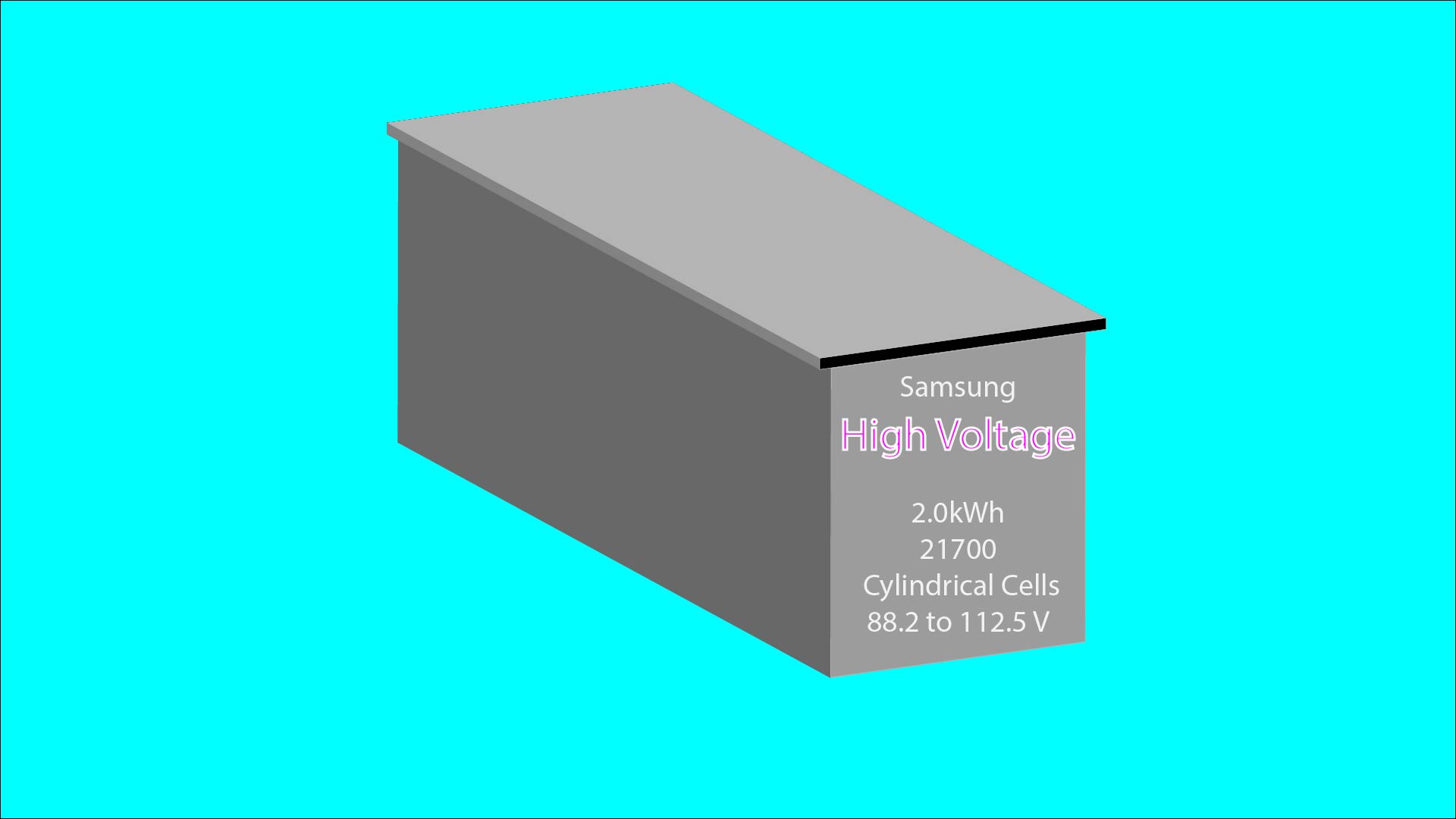

Furnish New Battery Samsung NCA Cylindrical High Voltage Solution RelayRack 2 kWh 88 2 to 112 5v 28S4P 4 2
Technology: Lithium_Ion_NMCFurnish New Battery Samsung NCA Cylindrical High Voltage Solution RelayRack 2 kWh 88 2 to 112 5v 28S4P 4 2
$5,229.58
Furnish New Battery Samsung NCA Cylindrical High Voltage Solution RelayRack 2 kWh 88 2 to 112 5v 28S4P 4 2
| Battery Model | Samsung NCA Cylindrical High Voltage Solution RelayRack 2 kWh 88 2 to 112 5v 28S4P 4 2 |
|---|---|
| Adjustment | 1 |
| AH Per String | 17.737 |
| AH Per String Rating | 8 hr @ 3.33 VPC |
| Cells Per Unit | 28 |
| Nominal VPC | 3.6 |
| Model KWH | 2 |
| Charge VPC | 4.2 (Min: 4.2, Max: 4.2) |
| Discharge VPC | Min: 3.15, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | 22°C to 30°C |
| Charge Temp Range | 22°C to 30°C |
| ISC Amps | 1943 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 7.51969 x 17.0472 x 6.77165 in |
| Weight | 40.009 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.375 in (0_37 mm) |
| Torque (Initial / Maintenance) | 152.2 / 152.2 in-lbs |
| Container | V0 |
| Terminal | 0_375 |
| FOB | T |
| Max Continuous Discharge | 120 Amps |
| Max Charge Amps | 50 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 243 |
| Watts Per Cell Rating | 15 min @ 3.15 VPC |
| Weight of Electrolyte | 4.80108 lbs |
