Furnish New Battery Samsung NMC Prismatic 48V Energy 94AH Series Module 4 8 kWh 44 8 to 58 1V 14S1P 4 2
Technology: Li_NMC.pngFurnish New Battery Samsung NMC Prismatic 48V Energy 94AH Series Module 4 8 kWh 44 8 to 58 1V 14S1P 4 2
$926.10
Build my Battery
Recycle My Battery
Furnish New Battery Samsung NMC Prismatic 48V Energy 94AH Series Module 4 8 kWh 44 8 to 58 1V 14S1P 4 2

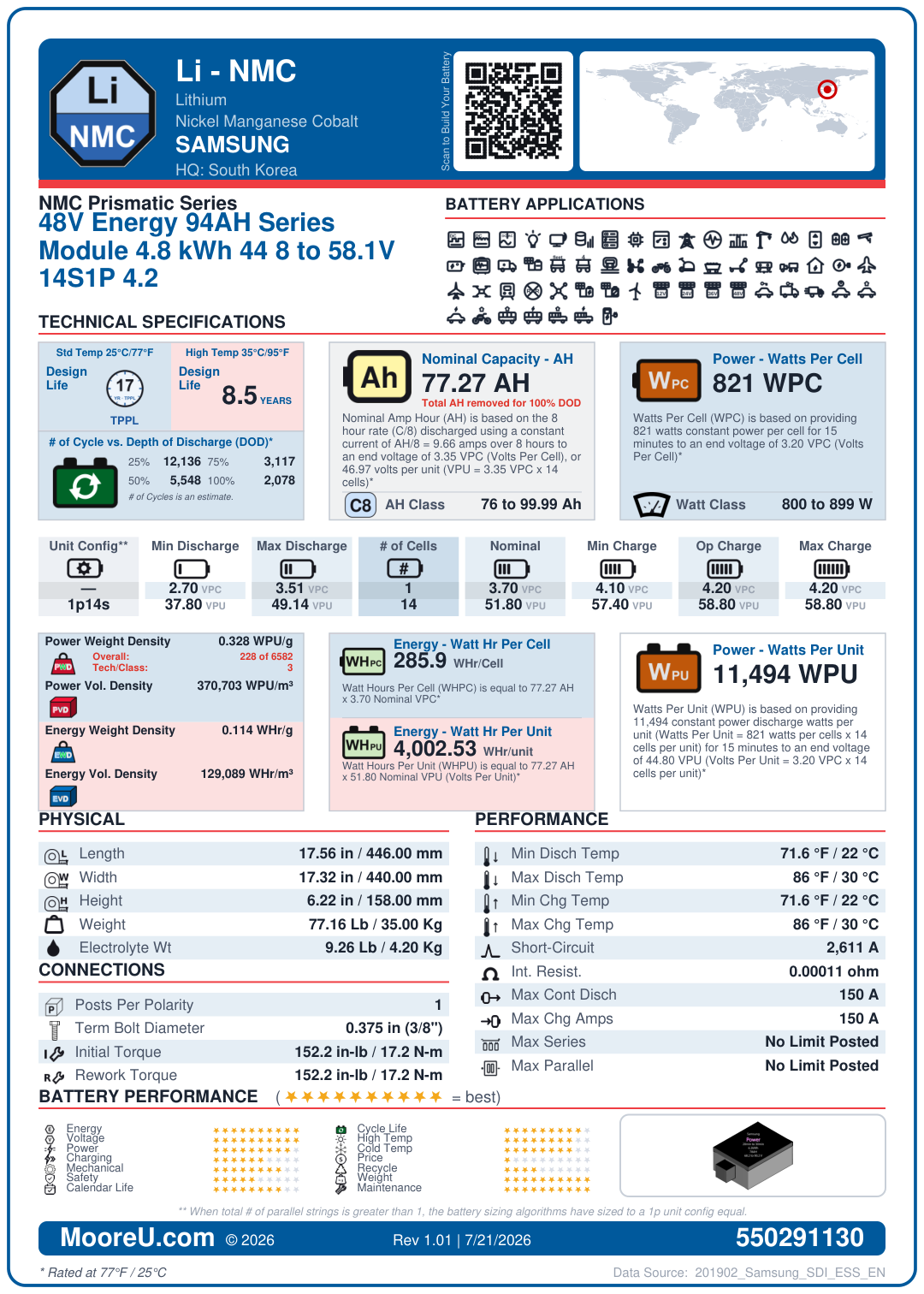

| Battery Model | Samsung NMC Prismatic 48V Energy 94AH Series Module 4 8 kWh 44 8 to 58 1V 14S1P 4 2 |
|---|---|
| Adjustment | 1 |
| AH Per String | 77.269 |
| AH Per String Rating | 8 hr @ 3.355 VPC |
| Cells Per Unit | 14 |
| Nominal VPC | 3.7 |
| Model KWH | 4 |
| Charge VPC | 4.2 (Min: 4.2, Max: 4.2) |
| Discharge VPC | Min: 3.2, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | 22°C to 30°C |
| Charge Temp Range | 22°C to 30°C |
| ISC Amps | 2611 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 17.5591 x 17.3228 x 6.22047 in |
| Weight | 77.1618 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.375 in (0_37 mm) |
| Torque (Initial / Maintenance) | 152.2 / 152.2 in-lbs |
| Container | V0 |
| Terminal | 0_375 |
| FOB | T |
| Max Continuous Discharge | 150 Amps |
| Max Charge Amps | 150 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 821 |
| Watts Per Cell Rating | 15 min @ 3.2 VPC |
| Weight of Electrolyte | 9.259416 lbs |
