Furnish New Battery Samsung RelayRack LIB UPS U6A4 20 4 KWH 10Mods 4 TypeA 6 TypeB 80cells 4 1 Lug 2Hole x 0 375dia 1inch CtC
Technology: Li_NMC.pngFurnish New Battery Samsung RelayRack LIB UPS U6A4 20 4 KWH 10Mods 4 TypeA 6 TypeB 80cells 4 1 Lug 2Hole x 0 375dia 1inch CtC
$13,647.92
Build my Battery
Recycle My Battery
Furnish New Battery Samsung RelayRack LIB UPS U6A4 20 4 KWH 10Mods 4 TypeA 6 TypeB 80cells 4 1 Lug 2Hole x 0 375dia 1inch CtC

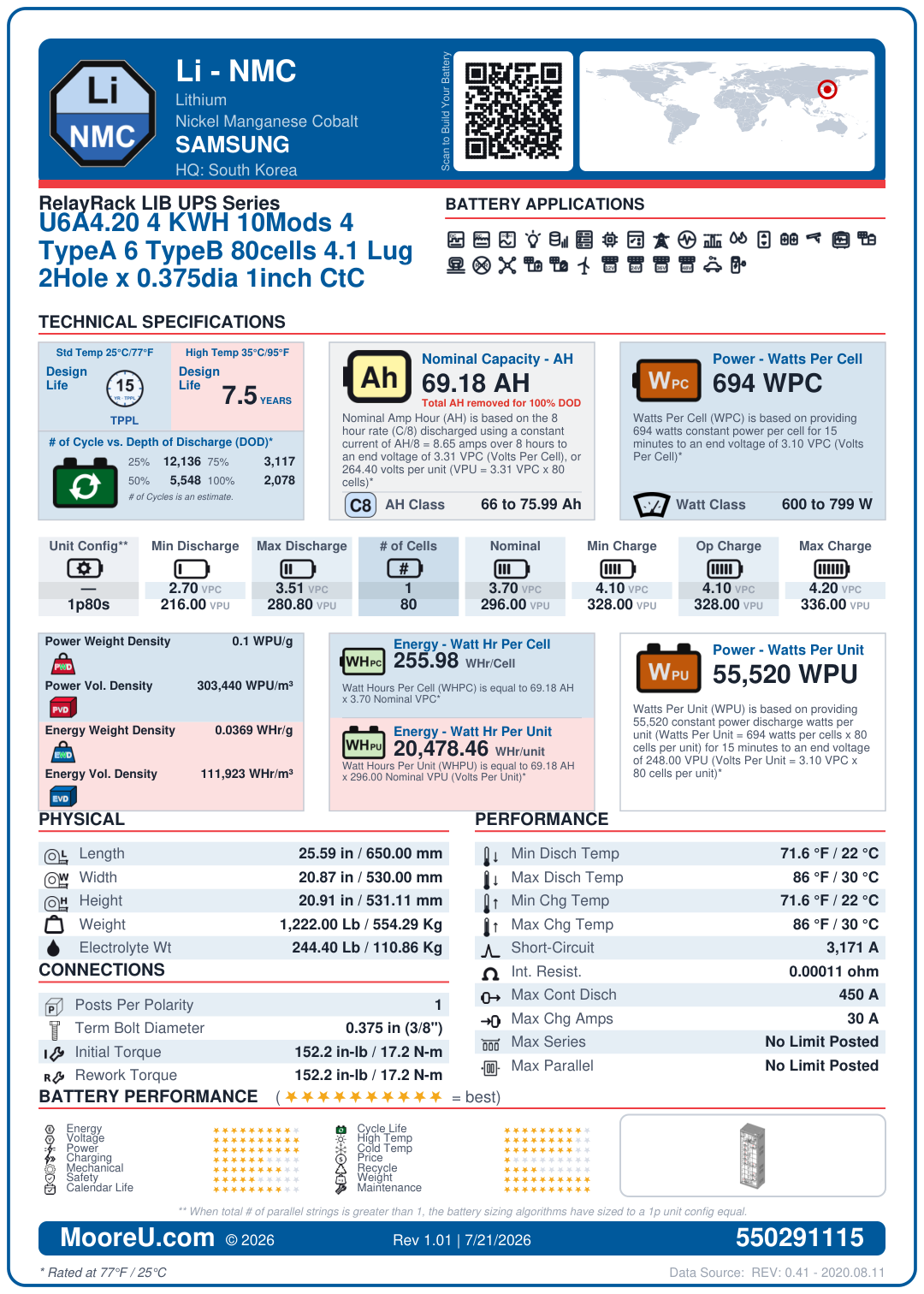

| Battery Model | Samsung RelayRack LIB UPS U6A4 20 4 KWH 10Mods 4 TypeA 6 TypeB 80cells 4 1 Lug 2Hole x 0 375dia 1inch CtC |
|---|---|
| Adjustment | 1 |
| AH Per String | 69.184 |
| AH Per String Rating | 8 hr @ 3.305 VPC |
| Cells Per Unit | 80 |
| Nominal VPC | 3.7 |
| Model KWH | 20 |
| Charge VPC | 4.1 (Min: 4.1, Max: 4.18) |
| Discharge VPC | Min: 3.1, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | 22°C to 30°C |
| Charge Temp Range | 22°C to 30°C |
| ISC Amps | 3171 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 25.5906 x 20.8661 x 20.91 in |
| Weight | 1222 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.375 in (0_37 mm) |
| Torque (Initial / Maintenance) | 152.2 / 152.2 in-lbs |
| Container | V0 |
| Terminal | 0_375 |
| FOB | T |
| Max Continuous Discharge | 450 Amps |
| Max Charge Amps | 30 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 694 |
| Watts Per Cell Rating | 15 min @ 3.1 VPC |
| Weight of Electrolyte | 244.4 lbs |
Related Products

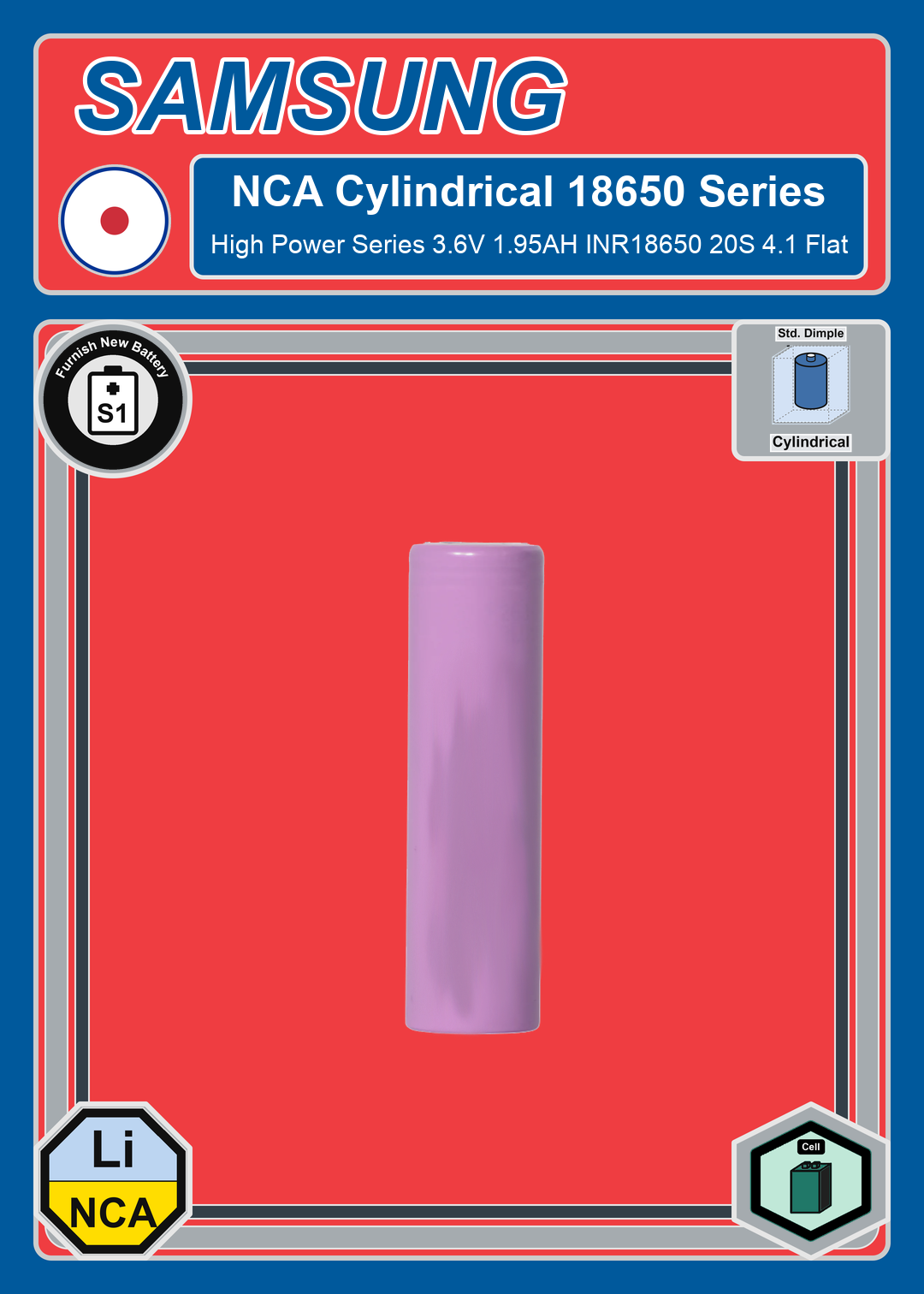

Furnish_New_Battery_Samsung_Cylindrical_18650_High_Power_Series_3_6V_1_95AH_INR18650_20S_4_1_Flat
$8.30
Furnish_New_Battery_Samsung_Cylindrical_18650_High_Power_Series_3_6V_1_95AH_INR18650_20S_4_1_Flat
Retail Price: $8.30

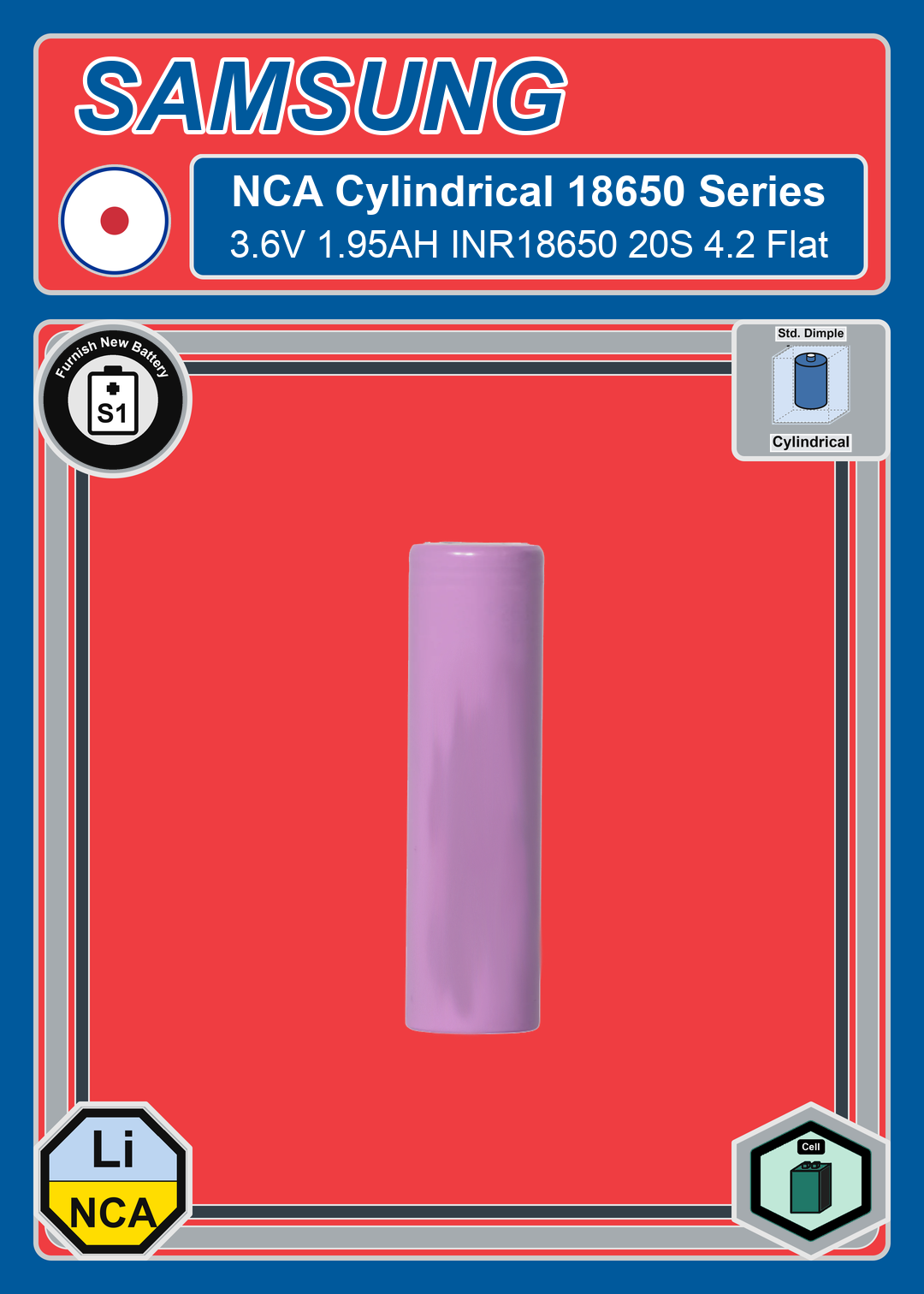

Furnish_New_Battery_Samsung_Cylindrical_18650_High_Power_Series_3_6V_1_95AH_INR18650_20S_4_2_Flat
$8.30
Furnish_New_Battery_Samsung_Cylindrical_18650_High_Power_Series_3_6V_1_95AH_INR18650_20S_4_2_Flat
Retail Price: $8.30

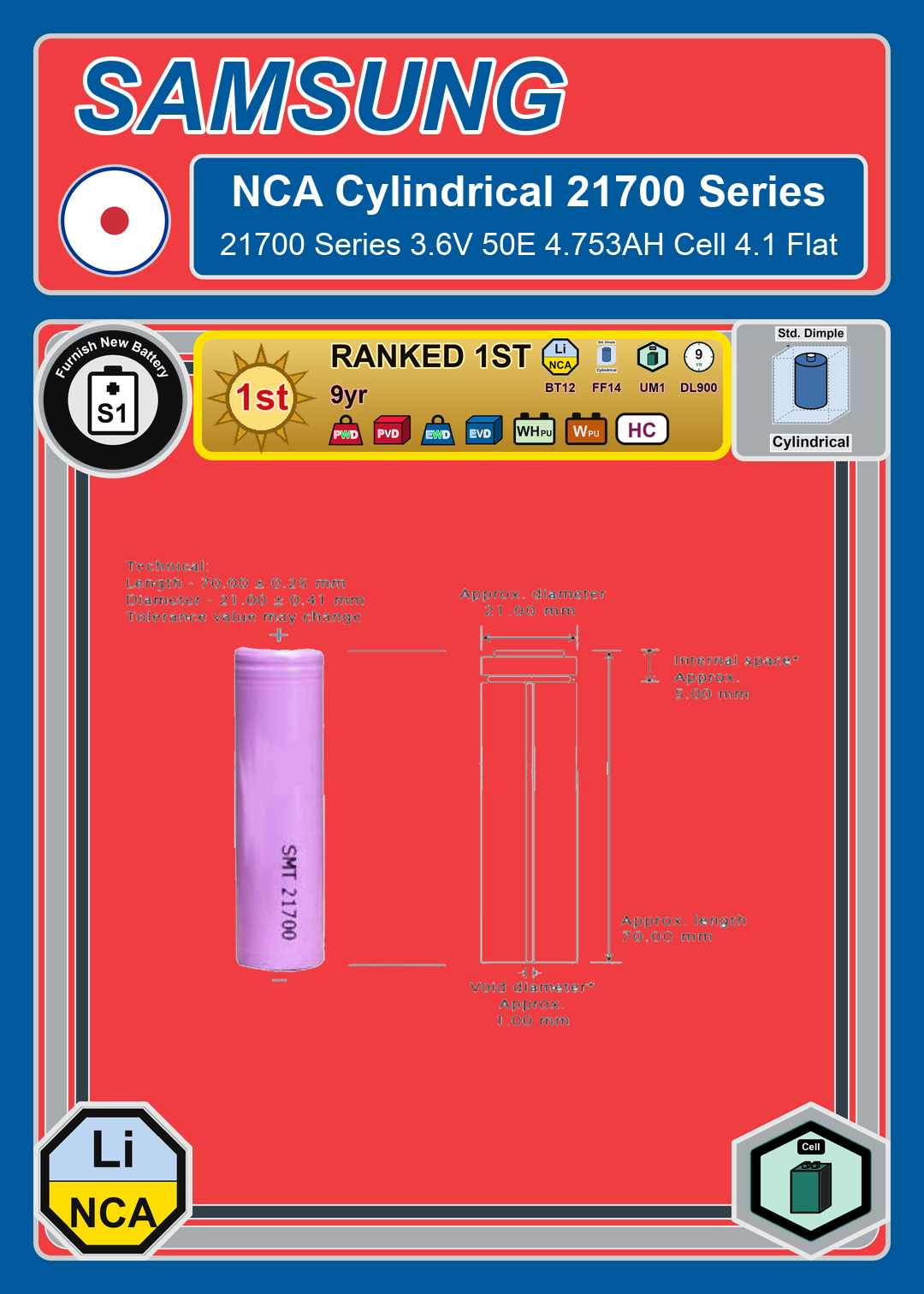

Furnish_New_Battery_Samsung_NCA_Cylindrical_21700_Series_3_6V_50E_4_753AH_Cell_4_1_Flat
