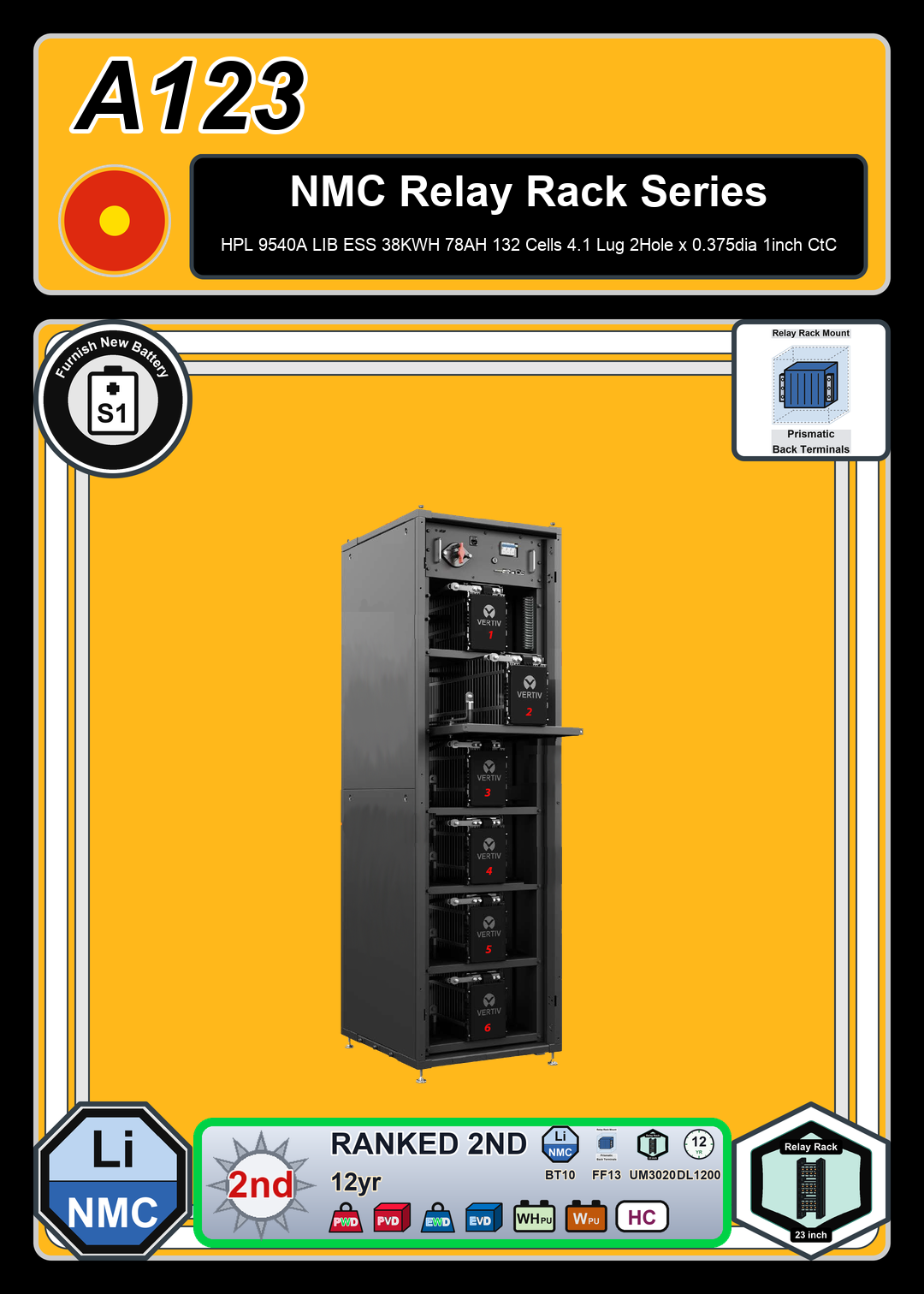

Front of card

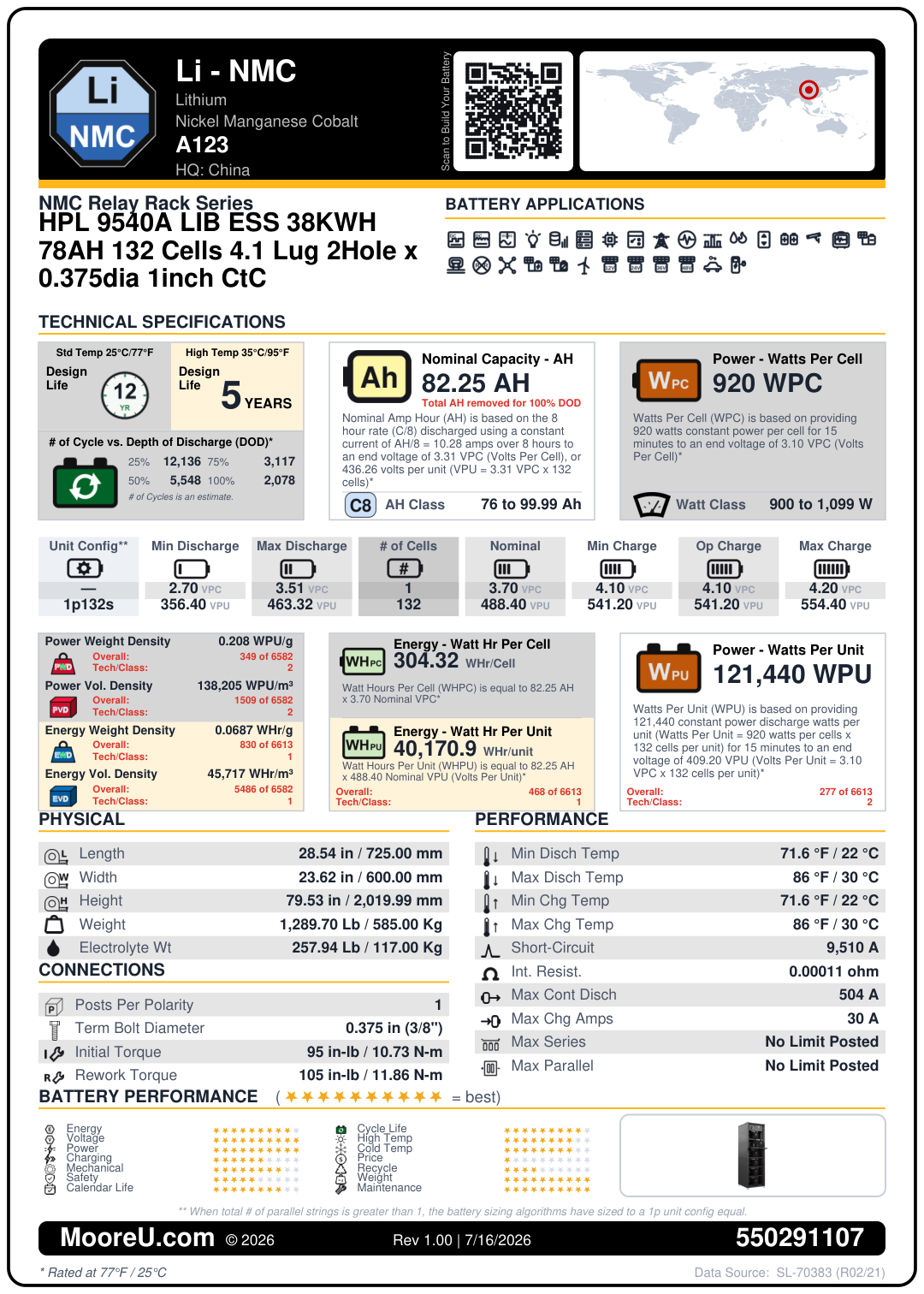

Back of card
Furnish New Battery A123 RelayRack HPL 9540A LIB ESS 38KWH 78AH 132 Cells 4 1 Lug 2Hole x 0 375dia 1inch CtC
Technology: Li_NMC.pngFurnish New Battery A123 RelayRack HPL 9540A LIB ESS 38KWH 78AH 132 Cells 4 1 Lug 2Hole x 0 375dia 1inch CtC
$2,756.79
Build my Battery
Recycle My Battery
Furnish New Battery A123 RelayRack HPL 9540A LIB ESS 38KWH 78AH 132 Cells 4 1 Lug 2Hole x 0 375dia 1inch CtC
| Battery Model | A123 RelayRack HPL 9540A LIB ESS 38KWH 78AH 132 Cells 4 1 Lug 2Hole x 0 375dia 1inch CtC |
|---|---|
| Adjustment | 1 |
| AH Per String | 82.25 |
| AH Per String Rating | 8 hr @ 3.305 VPC |
| Cells Per Unit | 132 |
| Nominal VPC | 3.7 |
| Model KWH | 40 |
| Charge VPC | 4.1 (Min: 4.1, Max: 4.18) |
| Discharge VPC | Min: 3.1, Max: 3.51 |
| Operational Temp Comp | -0.00555 V/°C/cell |
| Cycle Temp Comp | -0.0074 V/°C/cell |
| Discharge Temp Range | 22°C to 30°C |
| Charge Temp Range | 22°C to 30°C |
| ISC Amps | 9510 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 28.5433 x 23.622 x 79.527 in |
| Weight | 1289.7 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.375 in (0_37 mm) |
| Torque (Initial / Maintenance) | 95 / 105 in-lbs |
| Container | V0 |
| Terminal | 0_375 |
| FOB | T |
| Max Continuous Discharge | 504 Amps |
| Max Charge Amps | 30 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 920 |
| Watts Per Cell Rating | 15 min @ 3.1 VPC |
| Weight of Electrolyte | 257.94 lbs |
