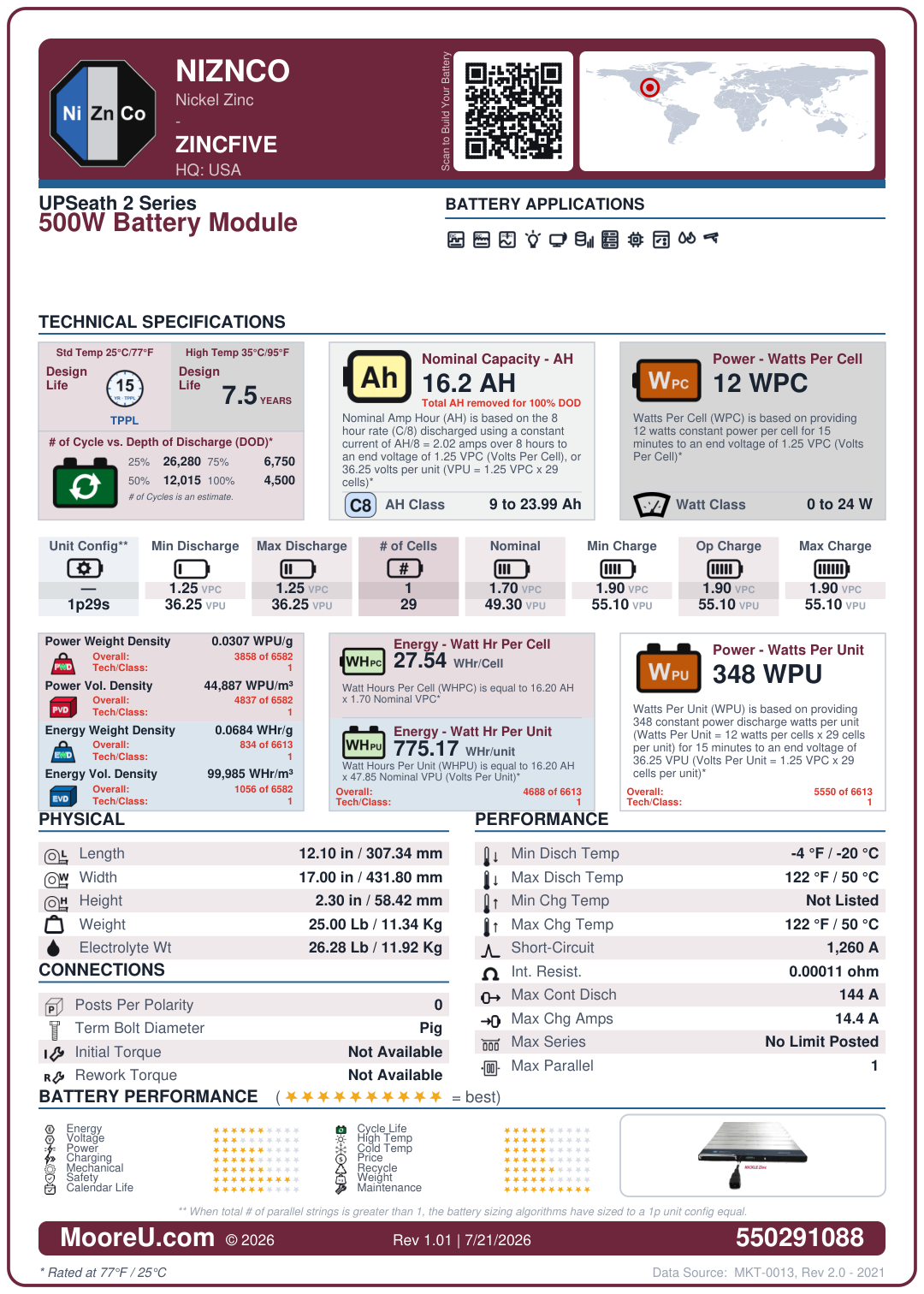

Back of card
Furnish New Battery ZincFive UPSeath 2 Series 500W Battery Module
Technology: Ni_Zn_Co.pngFurnish New Battery ZincFive UPSeath 2 Series 500W Battery Module
$304.26
Build my Battery
Recycle My Battery
Furnish New Battery ZincFive UPSeath 2 Series 500W Battery Module
| Battery Model | ZincFive UPSeath 2 Series 500W Battery Module |
|---|---|
| Adjustment | 1 |
| AH Per String | 16.2 |
| AH Per String Rating | 8 hr @ 1.25 VPC |
| Cells Per Unit | 29 |
| Nominal VPC | 1.65 |
| Model KWH | 1 |
| Charge VPC | 1.9 (Min: 1.9, Max: 1.9) |
| Discharge VPC | Min: 1.25, Max: 1.25 |
| Operational Temp Comp | -0.0022 V/°C/cell |
| Cycle Temp Comp | -0.0022 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 1260 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 12.1 x 17 x 2.3 in |
| Weight | 25 lbs |
| Number of Posts | 0 |
| Terminal Bolt Diameter | 0 in (Pig mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | UL-2054 |
| Terminal | PowerCord |
| FOB | T |
| Max Continuous Discharge | 144 Amps |
| Max Charge Amps | 14.4 Amps |
| Max In Series / Parallel | 0 / 1 |
| Watts Per Cell (15min 1.67) | 12 |
| Watts Per Cell Rating | 15 min @ 1.25 VPC |
| Weight of Electrolyte | 26.28 lbs |
