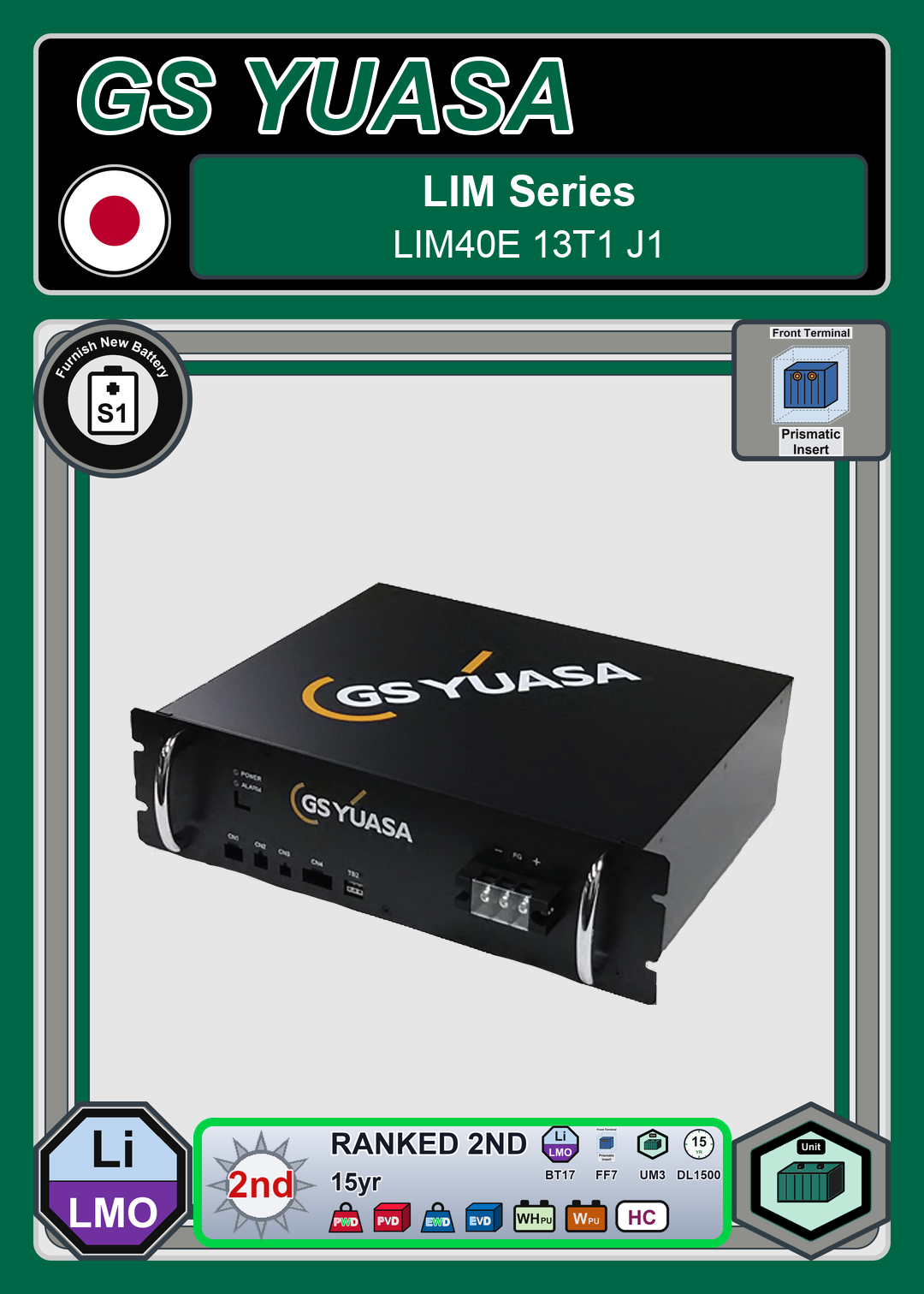

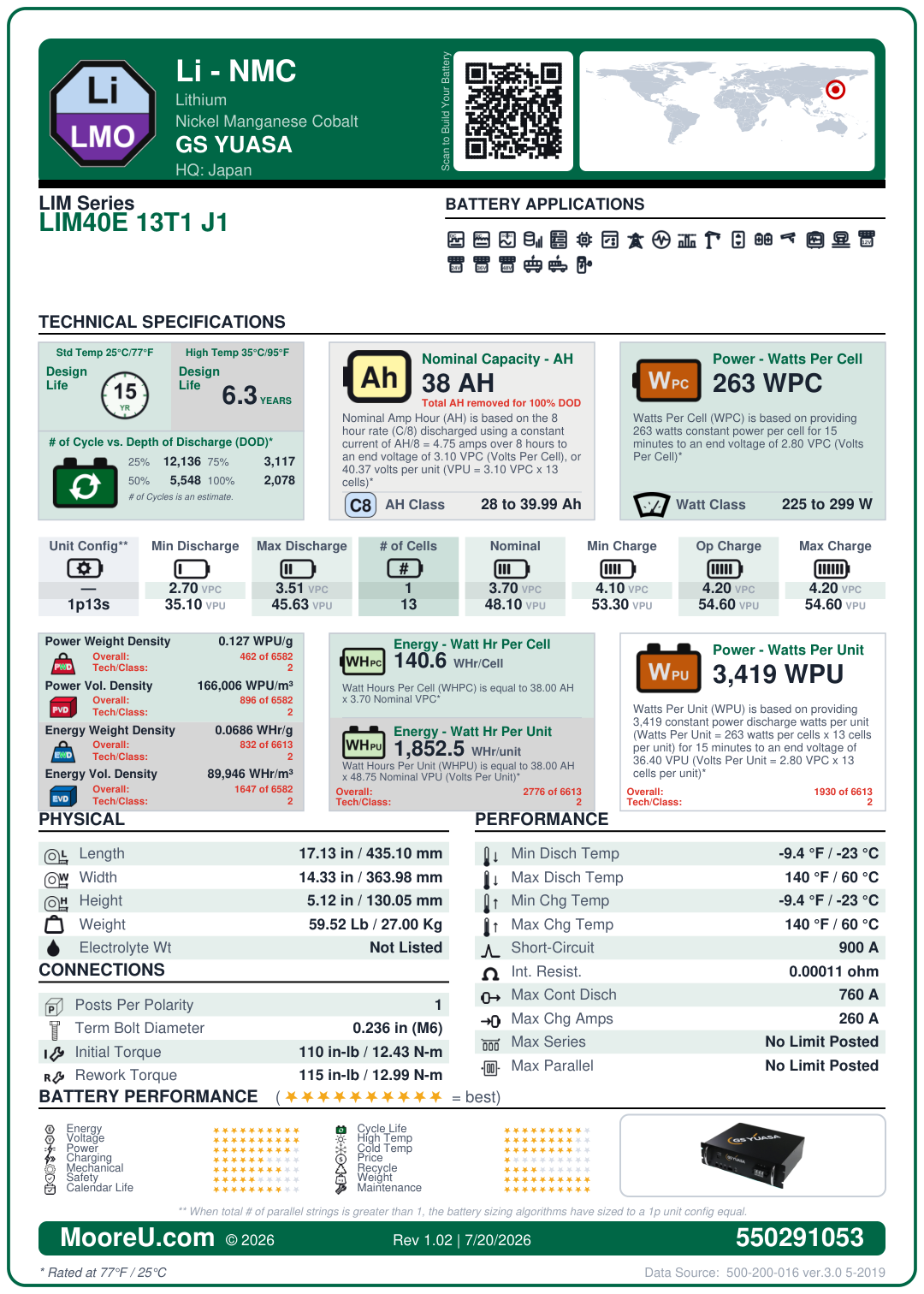

Furnish New Battery GS Yuasa LIM40E Series LIM40E 13T1 J1
Technology: Li_LMO.pngFurnish New Battery GS Yuasa LIM40E Series LIM40E 13T1 J1
$339.25
Build my Battery
Recycle My Battery
Furnish New Battery GS Yuasa LIM40E Series LIM40E 13T1 J1
| Battery Model | GS Yuasa LIM40E Series LIM40E 13T1 J1 |
|---|---|
| Adjustment | 1 |
| AH Per String | 38 |
| AH Per String Rating | 8 hr @ 3.105 VPC |
| Cells Per Unit | 13 |
| Nominal VPC | 3.75 |
| Model KWH | 2 |
| Charge VPC | 4.2 (Min: 3.7, Max: 4.2) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 900 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 17.13 x 14.33 x 5.12 in |
| Weight | 59.52 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 760 Amps |
| Max Charge Amps | 260 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 263 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 0 lbs |
