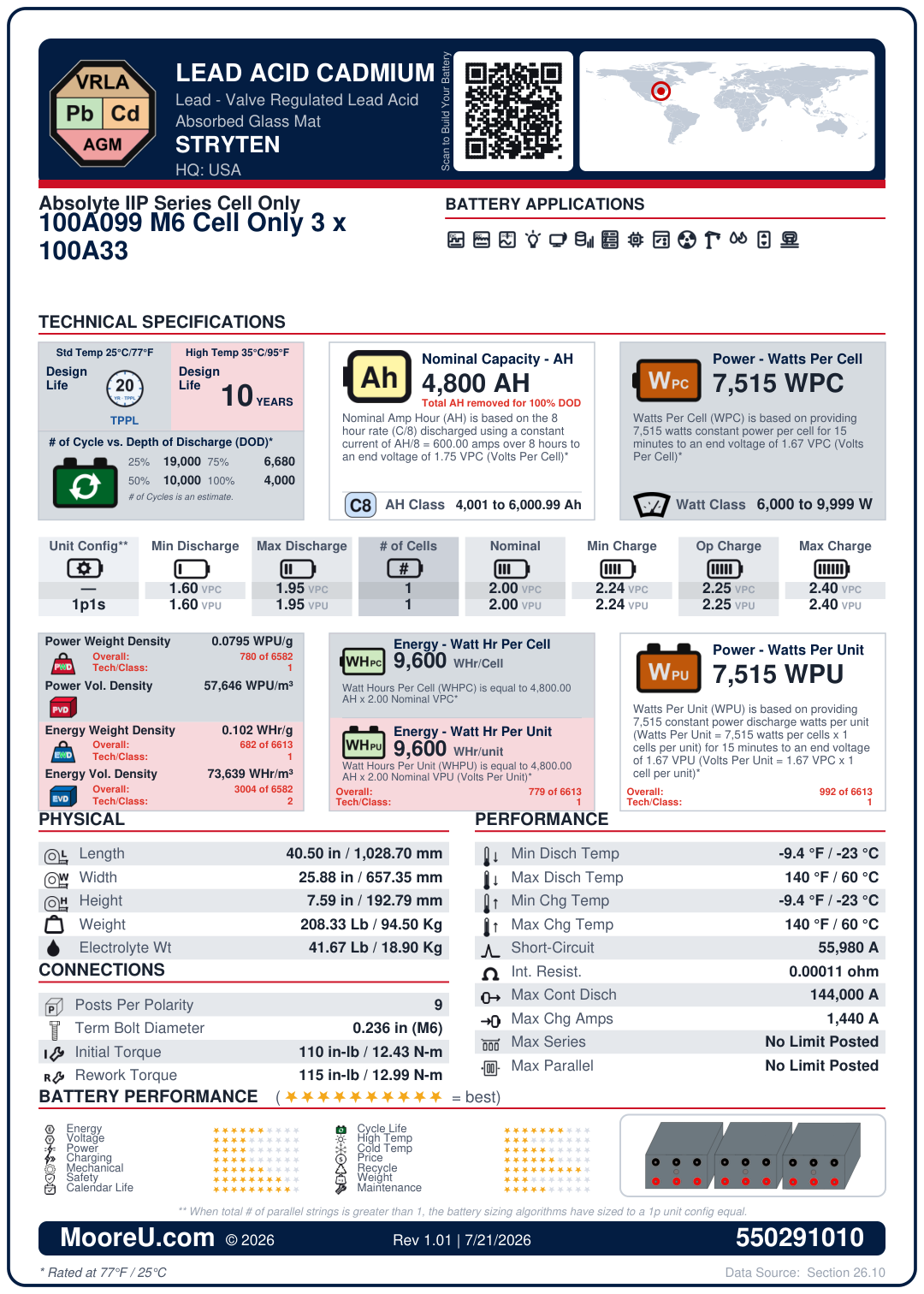

Furnish New Battery Exide GNB Absolyte IIP Series 100A099 M6 Cell Only 3 x 100A33
Technology: Pb_Cd_VRLA_AGM_505.pngFurnish New Battery Exide GNB Absolyte IIP Series 100A099 M6 Cell Only 3 x 100A33
$5,562.05
Build my Battery
Recycle My Battery
Furnish New Battery Exide GNB Absolyte IIP Series 100A099 M6 Cell Only 3 x 100A33
| Battery Model | Exide GNB Absolyte IIP Series 100A099 M6 Cell Only 3 x 100A33 |
|---|---|
| Adjustment | 1 |
| AH Per String | 4800 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 10 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.5, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 55980 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 40.5 x 25.88 x 7.59 in |
| Weight | 208.3333333 lbs |
| Number of Posts | 9 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 144000 Amps |
| Max Charge Amps | 1440 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 7515 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 41.66666667 lbs |
