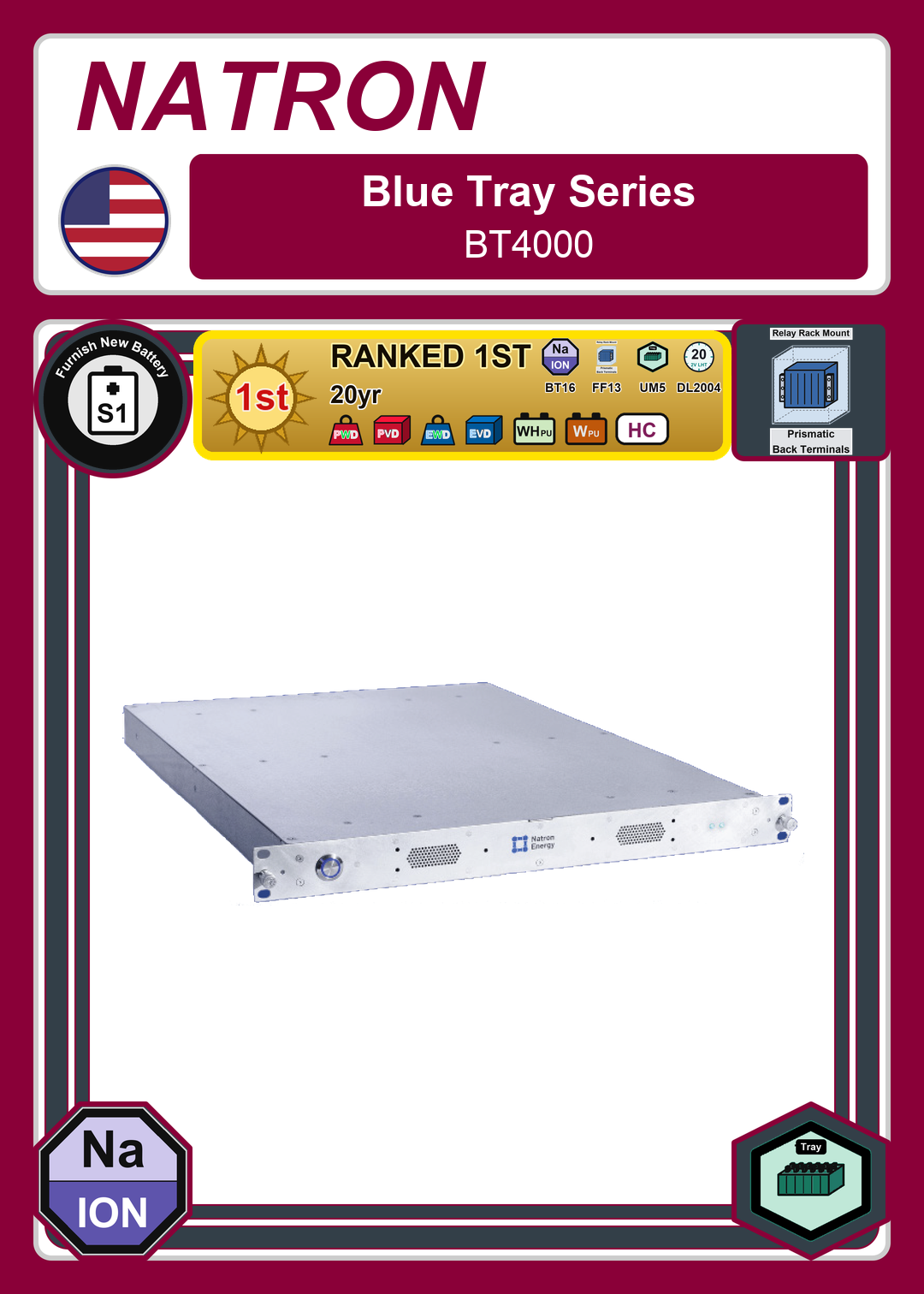

Furnish New Battery Natron Blue Tray BT4000
Technology: Na_Ion.pngFurnish New Battery Natron Blue Tray BT4000
$87.94
Build my Battery
Recycle My Battery
Furnish New Battery Natron Blue Tray BT4000

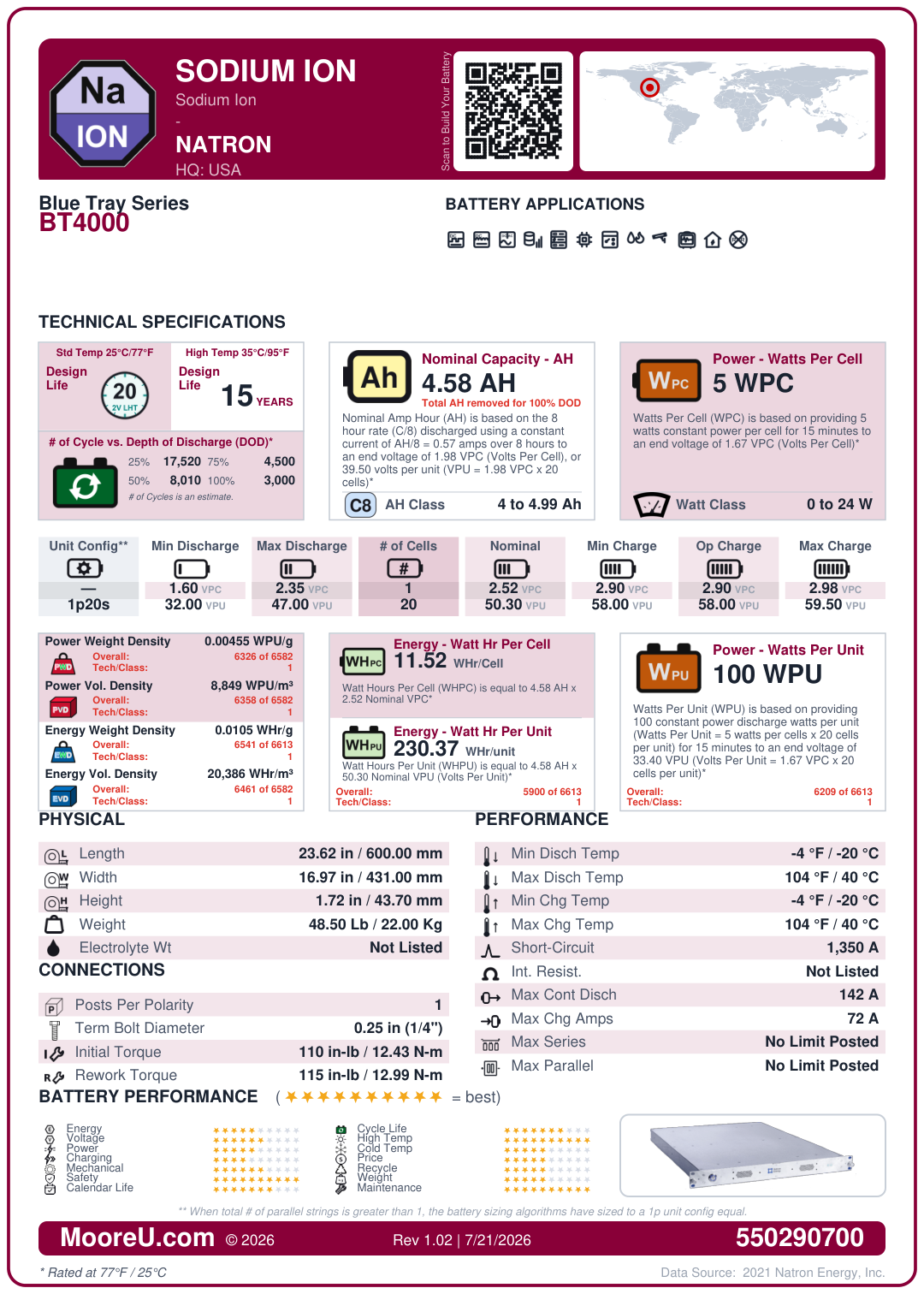

| Battery Model | Natron Blue Tray BT4000 |
|---|---|
| Adjustment | 1 |
| AH Per String | 4.58 |
| AH Per String Rating | 8 hr @ 1.975 VPC |
| Cells Per Unit | 20 |
| Nominal VPC | 2.515 |
| Model KWH | 0 |
| Charge VPC | 2.975 (Min: 2.9, Max: 2.975) |
| Discharge VPC | Min: 1.6, Max: 2.35 |
| Operational Temp Comp | 0 V/°C/cell |
| Cycle Temp Comp | 0 V/°C/cell |
| Discharge Temp Range | -20°C to 40°C |
| Charge Temp Range | -20°C to 40°C |
| ISC Amps | 1350 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 23.622 x 16.9685 x 1.720472 in |
| Weight | 48.5017 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 142 Amps |
| Max Charge Amps | 72 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 5 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 0 lbs |
