Furnish New Battery Cdtechno msEndurII Series 2 x AT 39P Module30 0 25
Technology: Pb_VRLA_AGM_500.pngFurnish New Battery Cdtechno msEndurII Series 2 x AT 39P Module30 0 25
$4,793.38
Build my Battery
Recycle My Battery
Furnish New Battery Cdtechno msEndurII Series 2 x AT 39P Module30 0 25

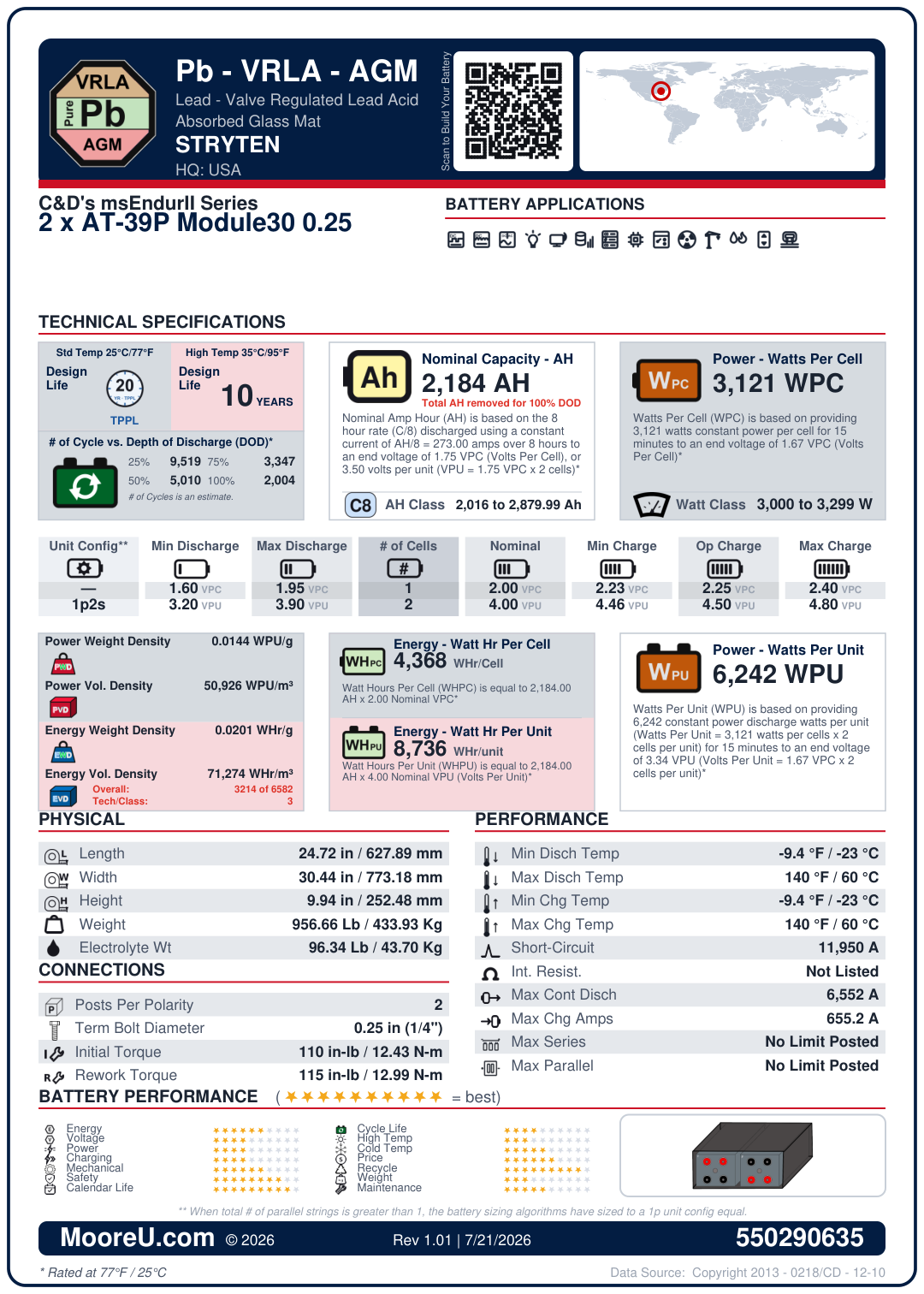

| Battery Model | Cdtechno msEndurII Series 2 x AT 39P Module30 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 2184 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 2 |
| Nominal VPC | 2 |
| Model KWH | 9 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 11950 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 24.72 x 30.44 x 9.94 in |
| Weight | 956.66 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 6552 Amps |
| Max Charge Amps | 655.2 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 3121 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 96.33877371 lbs |
