Front of card
Back of card

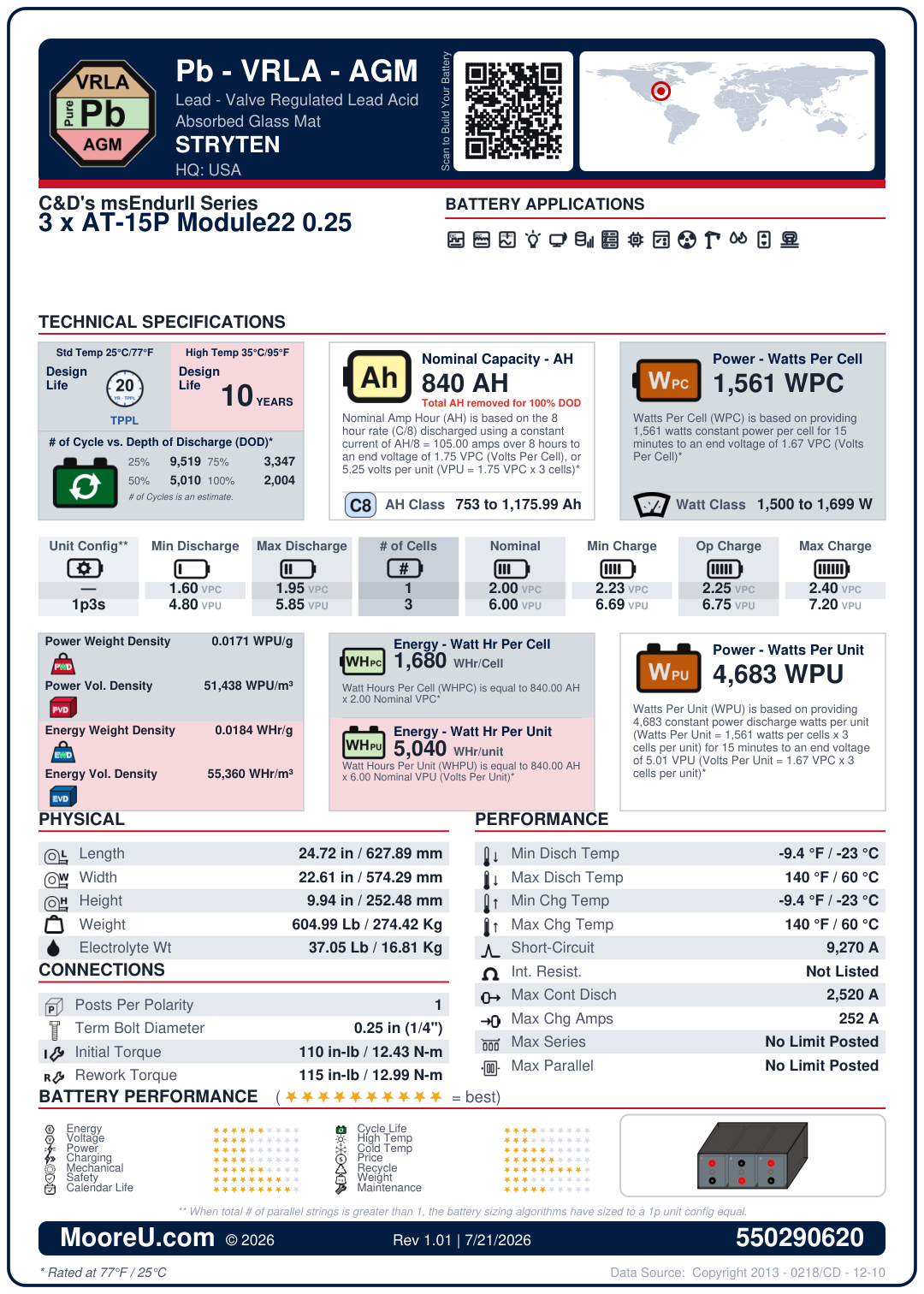

Furnish New Battery Cdtechno msEndurII Series 3 x AT 15P Module22 0 25
Technology: Pb_VRLA_AGM_500.pngFurnish New Battery Cdtechno msEndurII Series 3 x AT 15P Module22 0 25
$2,766.29
Build my Battery
Recycle My Battery
Furnish New Battery Cdtechno msEndurII Series 3 x AT 15P Module22 0 25
| Battery Model | Cdtechno msEndurII Series 3 x AT 15P Module22 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 840 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -23°C to 60°C |
| Charge Temp Range | -23°C to 60°C |
| ISC Amps | 9270 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 24.72 x 22.61 x 9.94 in |
| Weight | 604.99 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 2520 Amps |
| Max Charge Amps | 252 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1561 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 37.0533745 lbs |
