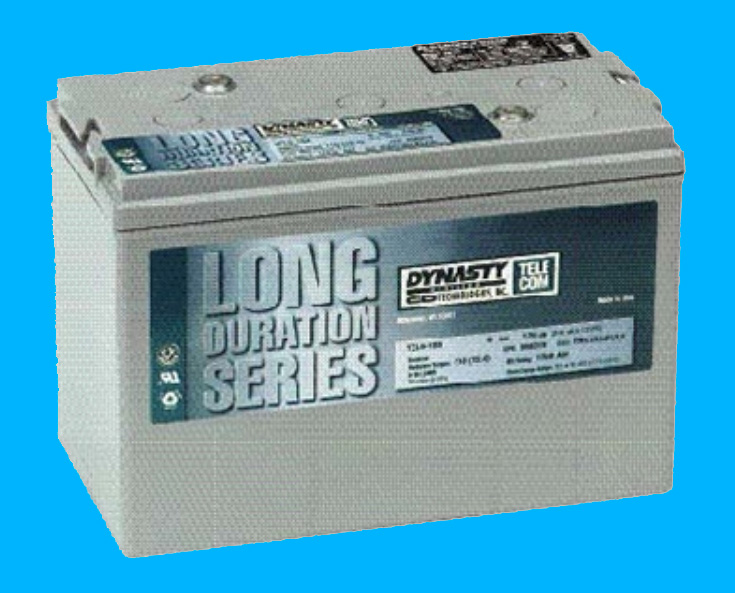

Furnish New Battery CDTechno TEL Series TEL6 180 0 25

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery CDTechno TEL Series TEL6 180 0 25

$388.52

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CDTechno TEL Series TEL6 180 0 25
Adjustment	1
AH Per String	175.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	3
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-23°C to 60°C
Charge Temp Range	-23°C to 60°C
ISC Amps	4500
Internal Resistance	0.004 Ohms
Dimensions (L x W x H)	12.63 x 6.97 x 8.94 in
Weight	75 lbs
Number of Posts	1
Terminal Bolt Diameter	0.25 in (0_25 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	0_25
FOB	T
Max Continuous Discharge	525.6 Amps
Max Charge Amps	52.56 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	201
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	7.728275254 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 White 90	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 Gray 02	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 White 90	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 Gray 02	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 Almond	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 Gray 02	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 Almond	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 White 90	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 White 90	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 Smooth Black	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 Almond	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 White 90	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 Smooth Black	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 Almond	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 Almond	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 Smooth Black	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 Smooth Black	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 Teleco Gray	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 Smooth Black	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 Teleco Gray	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 Blue 07	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 Teleco Gray	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 Blue 07	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 Teleco Gray	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 Teleco Gray	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 21m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 40 000 29 500 78 700 N 12 0 875 Blue 07	Battery Enclosure ID = 21m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	40.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 22m 620WPC TT 12V 4 040 12 630 06 970 08 940 N N 8 5 4 36 000 29 500 78 700 N 12 0 875 Blue 07	Battery Enclosure ID = 22m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 40, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 5, Shelves = 4,	36.000 x 29.500 x 8.94 in	40 batteries
MooreU com Furnish New Battery Enclosure 13m 620WPC TT 12V 4 024 12 630 06 970 08 940 N N 6 4 3 29 000 31 500 59 000 Y 6 0 687 Gray 02	Battery Enclosure ID = 13m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 24, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 4, Shelves = 3,	29.000 x 31.500 x 8.94 in	24 batteries
MooreU com Furnish New Battery Enclosure 23l 620WPC TT FT 12V 4 016 12 630 06 970 08 940 N N 8 2 1 29 000 31 500 59 000 Y 6 0 687 Blue 07	Battery Enclosure ID = 23l, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_FT_12V, Max Units = 16, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 2, Shelves =	29.000 x 31.500 x 8.94 in	16 batteries
MooreU com Furnish New Battery Enclosure 14m 620WPC TT 12V 4 032 12 630 06 970 08 940 N N 8 4 3 36 000 29 500 70 760 N 12 0 875 Gray 02	Battery Enclosure ID = 14m, Max Unit Class = 620WPC, Class = UPS_Teleco_Solar, Battery Term = TT_12V, Max Units = 32, Max Unit L = 12.63, Max Unit W = 6.97, Max Unit H = 8.94, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 8, Tiers = 4, Shelves = 3,	36.000 x 29.500 x 8.94 in	32 batteries
