Furnish New Battery Exide GNB Marathon 12V Series XL12V50 M6

Technology: Lead_Acid_Units_120lbs and less

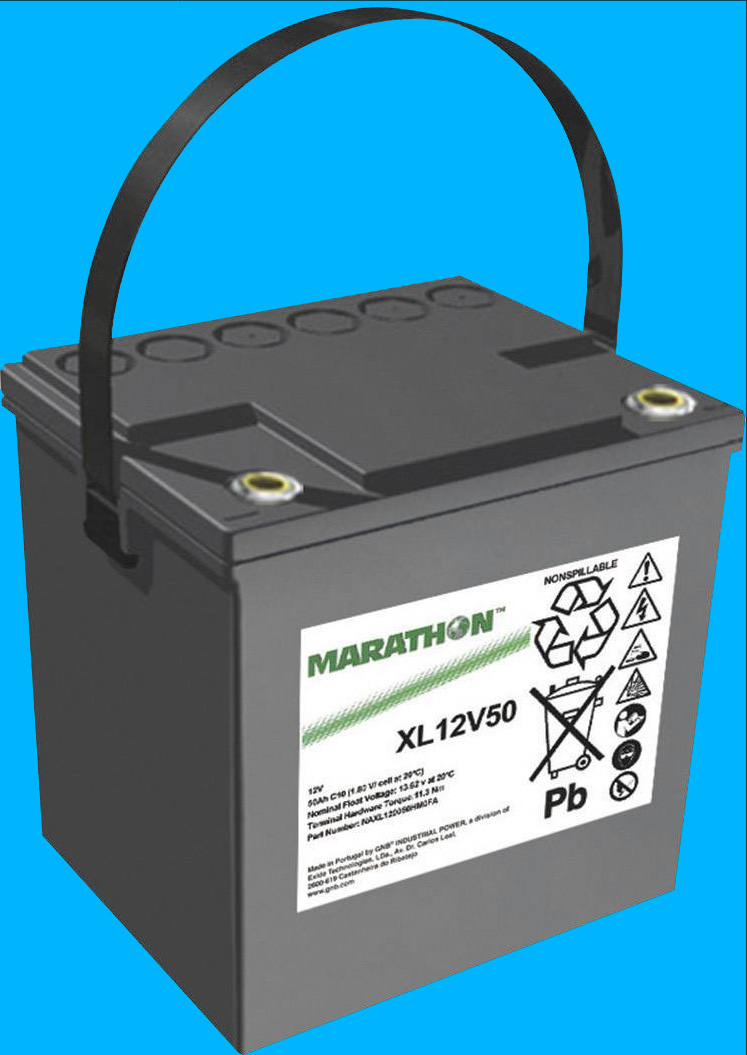

Furnish New Battery Exide GNB Marathon 12V Series XL12V50 M6

$188.11

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide GNB Marathon 12V Series XL12V50 M6
Adjustment	1
AH Per String	48.16
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.95
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	-40°C to 65°C
ISC Amps	1367
Internal Resistance	0.0191 Ohms
Dimensions (L x W x H)	8.66142 x 6.77165 x 9.25197 in
Weight	42.11 lbs
Number of Posts	1
Terminal Bolt Diameter	0.216 in (F_M6 mm)
Torque (Initial / Maintenance)	71 / 71 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	144.48 Amps
Max Charge Amps	14.448 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	150
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	2.124393472 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 1a Group 31 TT 12V 0 004 13 440 06 820 09 640 N N 2 2 1 29 000 14 000 28 000 N 4 0 750 Gray 02	Battery Enclosure ID = 1a, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 4, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 2, Tiers = 2, Shelves = 1, W =	29.000 x 14.500 x 9.64 in	4 batteries
MooreU com Furnish New Battery Enclosure 2a Group 31 TT 12V 0 008 13 440 06 820 09 640 N N 4 2 1 34 000 15 250 41 140 N 4 0 750 Gray 02	Battery Enclosure ID = 2a, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 8, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 2, Shelves = 1, W =	34.000 x 15.250 x 9.64 in	8 batteries
MooreU com Furnish New Battery Enclosure 2e Group 31 TT 12V 0 012 13 440 06 820 09 640 N N 4 3 2 34 000 15 250 41 140 N 4 0 750 Gray 02	Battery Enclosure ID = 2e, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 12, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 3, Shelves = 2, W	34.000 x 15.250 x 9.64 in	12 batteries
MooreU com Furnish New Battery Enclosure 3c Group 31 TT 12V 0 008 13 440 06 820 09 640 N N 4 2 1 34 000 15 250 41 140 N 4 0 750 Aluminum	Battery Enclosure ID = 3c, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 8, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 2, Shelves = 1, W =	34.000 x 15.250 x 9.64 in	8 batteries
MooreU com Furnish New Battery Enclosure 4b Group 31 TT 12V 0 012 13 440 06 820 09 640 N N 4 3 2 34 000 15 250 55 000 N 4 0 750 Gray 02	Battery Enclosure ID = 4b, Max Unit Class = Group_31, Class = Solar_Teleco, Battery Term = TT_12V, Max Units = 12, Max Unit L = 13.44, Max Unit W = 6.82, Max Unit H = 9.64, Outdoor = N, Rain = N, Seismic = 0, Max Unit Tier = 4, Tiers = 3, Shelves = 2, W	34.000 x 15.250 x 9.64 in	12 batteries
