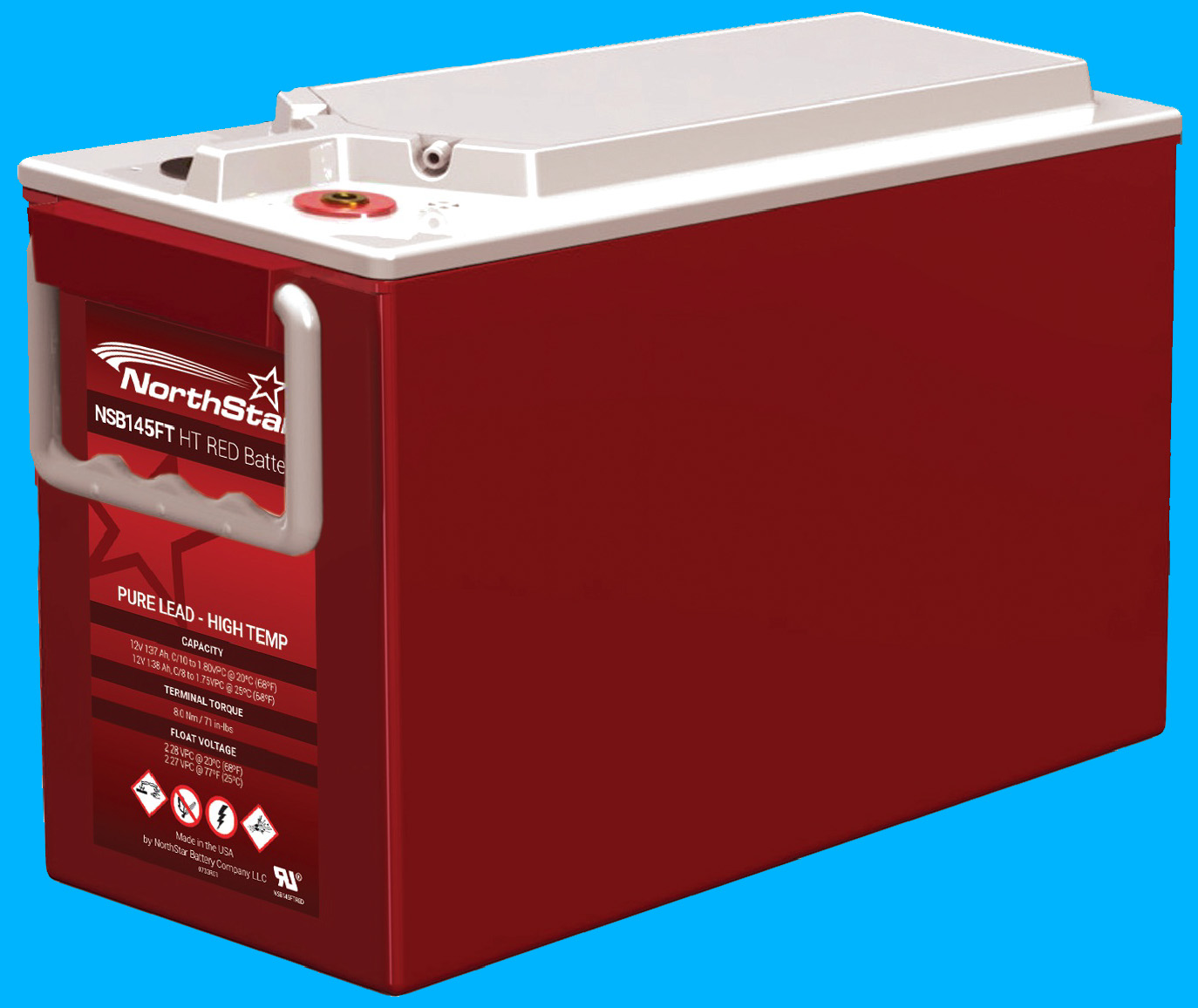

Furnish New Battery Northstar HT Red Series NSB145FT M8
Technology: Lead_Acid_Units_120lbs and lessFurnish New Battery Northstar HT Red Series NSB145FT M8
$537.47
Furnish New Battery Northstar HT Red Series NSB145FT M8
| Battery Model | Northstar HT Red Series NSB145FT M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 137.6 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.5, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 65°C |
| Charge Temp Range | -40°C to 65°C |
| ISC Amps | 3940 |
| Internal Resistance | 0.0025 Ohms |
| Dimensions (L x W x H) | 16.8 x 6.29 x 9.96 in |
| Weight | 99 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 71 / 71 in-lbs |
| Container | V0 |
| Terminal | 0_315 |
| FOB | T |
| Max Continuous Discharge | 412.8 Amps |
| Max Charge Amps | 41.28 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 577 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.069695633 lbs |
