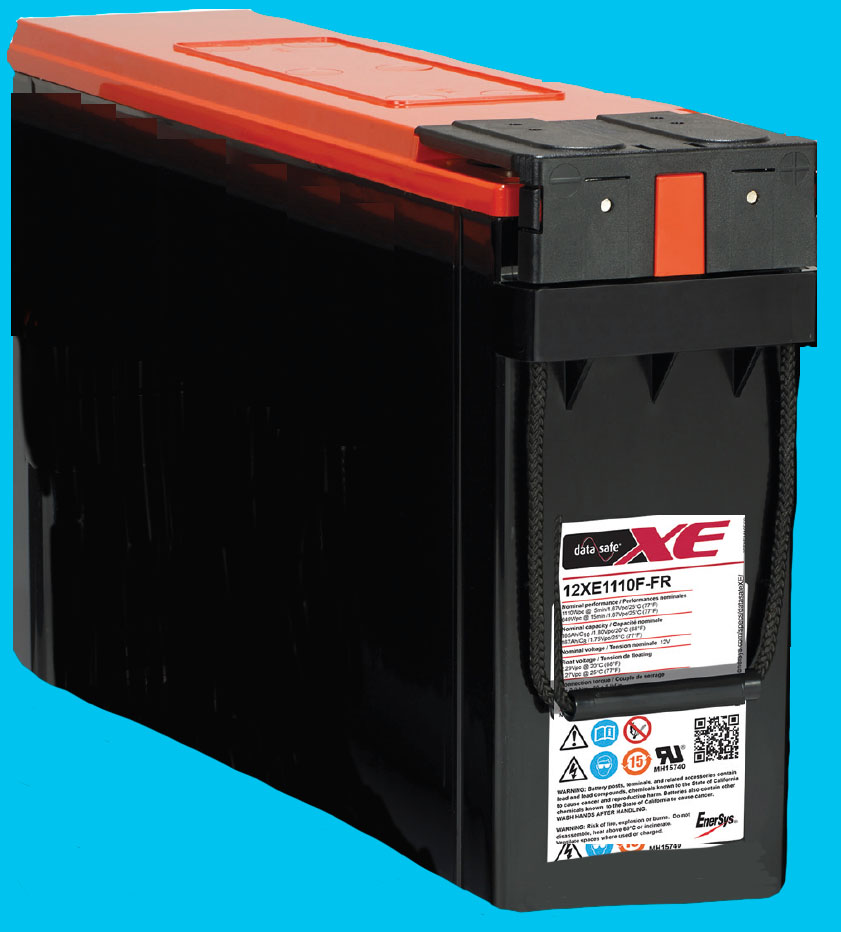

Furnish New Battery Enersys DataSafe XE Series 12XE1110F FR M6

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery Enersys DataSafe XE Series 12XE1110F FR M6

$660.57

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys DataSafe XE Series 12XE1110F FR M6
Adjustment	1
AH Per String	134.426
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	2
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.5, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 50°C
Charge Temp Range	-40°C to 50°C
ISC Amps	3916
Internal Resistance	0.0032 Ohms
Dimensions (L x W x H)	22.9 x 4.9 x 11.1 in
Weight	114 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	110 / 115 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	403.278 Amps
Max Charge Amps	40.3278 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	649
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	5.929686811 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Gray 02	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 White 90	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Almond	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Smooth Black	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Teleco Gray	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20b 800WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20b, Max Unit Class = 800WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
MooreU com Furnish New Battery Enclosure 20c 925WPC FT 16V 4 030 27 200 07 000 12 300 N N 6 5 4 49 500 36 560 84 000 N 8 0 875 Blue 07	Battery Enclosure ID = 20c, Max Unit Class = 925WPC, Class = UPS_Teleco_Solar, Battery Term = FT_16V, Max Units = 30, Max Unit L = 27.2, Max Unit W = 7, Max Unit H = 12.3, Outdoor = N, Rain = N, Seismic = 4, Max Unit Tier = 6, Tiers = 5, Shelves = 4, W =	49.500 x 36.560 x 12.3 in	30 batteries
