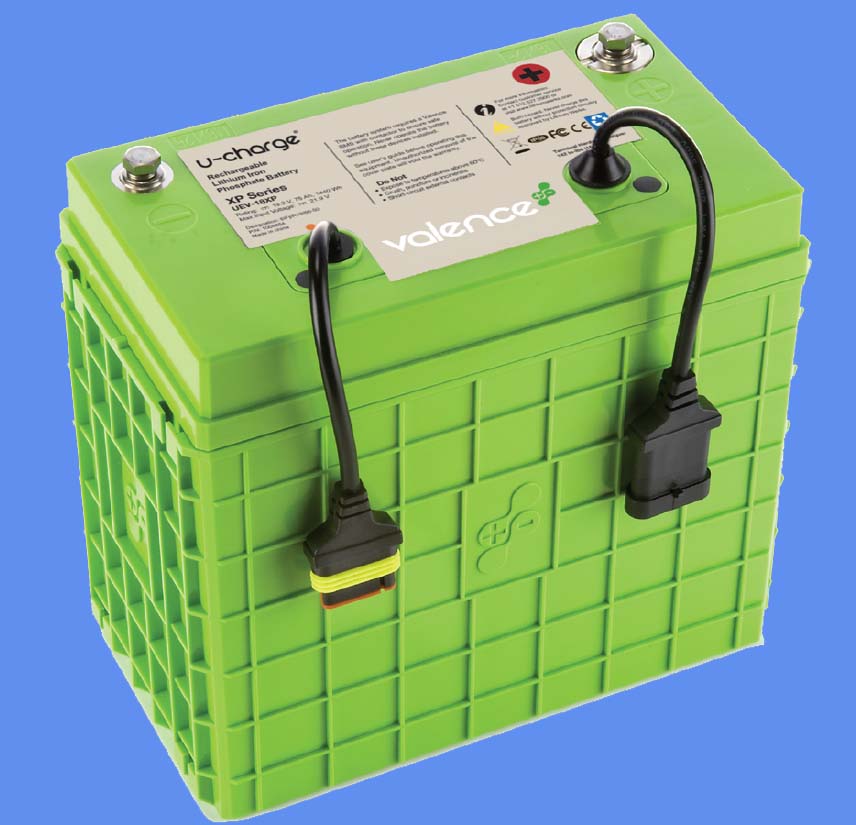

Furnish New Battery Valence XP Series UEV 18XP M8
Technology: Lithium_Ion_LFPFurnish New Battery Valence XP Series UEV 18XP M8
$2,216.52
Furnish New Battery Valence XP Series UEV 18XP M8
| Battery Model | Valence XP Series UEV 18XP M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 70 |
| AH Per String Rating | 8 hr @ 2.975 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 3.1 |
| Model KWH | 1 |
| Charge VPC | 3.9 (Min: 2.8, Max: 3.9) |
| Discharge VPC | Min: 2.7, Max: 3.25 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -10°C to 50°C |
| Charge Temp Range | 0°C to 45°C |
| ISC Amps | 721 |
| Internal Resistance | 0.00011 Ohms |
| Dimensions (L x W x H) | 10.6 x 5.83 x 9.65 in |
| Weight | 32.8 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 210 Amps |
| Max Charge Amps | 21 Amps |
| Max In Series / Parallel | 78 / 0 |
| Watts Per Cell (15min 1.67) | 199 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 3.087781209 lbs |
