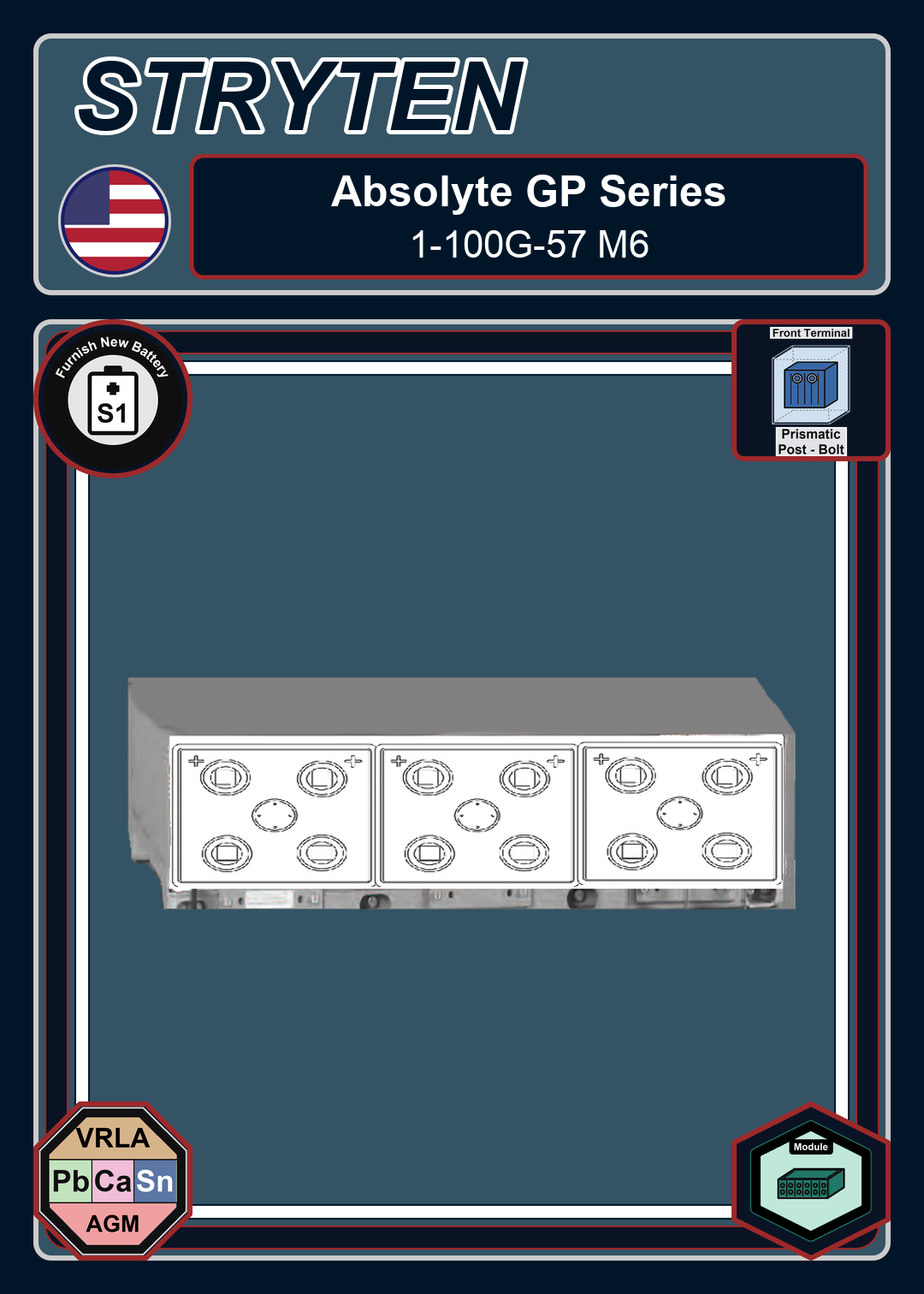

Front of card
Back of card
Furnish New Battery EXide GNB Absolyte GP Series 1 100G57 M6
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery EXide GNB Absolyte GP Series 1 100G57 M6
$2,963.29
Build my Battery
Recycle My Battery
Furnish New Battery EXide GNB Absolyte GP Series 1 100G57 M6
| Battery Model | EXide GNB Absolyte GP Series 1 100G57 M6 |
|---|---|
| Adjustment | 27 |
| AH Per String | 2700 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 50°C |
| Charge Temp Range | -40°C to 50°C |
| ISC Amps | 30600 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 26.75 x 26.38 x 8.59 in |
| Weight | 470 lbs |
| Number of Posts | 6 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 8100 Amps |
| Max Charge Amps | 810 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 5211 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 119.1001323 lbs |
