Front of card
Back of card
Furnish New Battery East Penn Unigy II ILM Series 4AVR95 15 0 25
Technology: Pb_Sn_VRLA_AGM.pngFurnish New Battery East Penn Unigy II ILM Series 4AVR95 15 0 25
$2,830.50
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Unigy II ILM Series 4AVR95 15 0 25

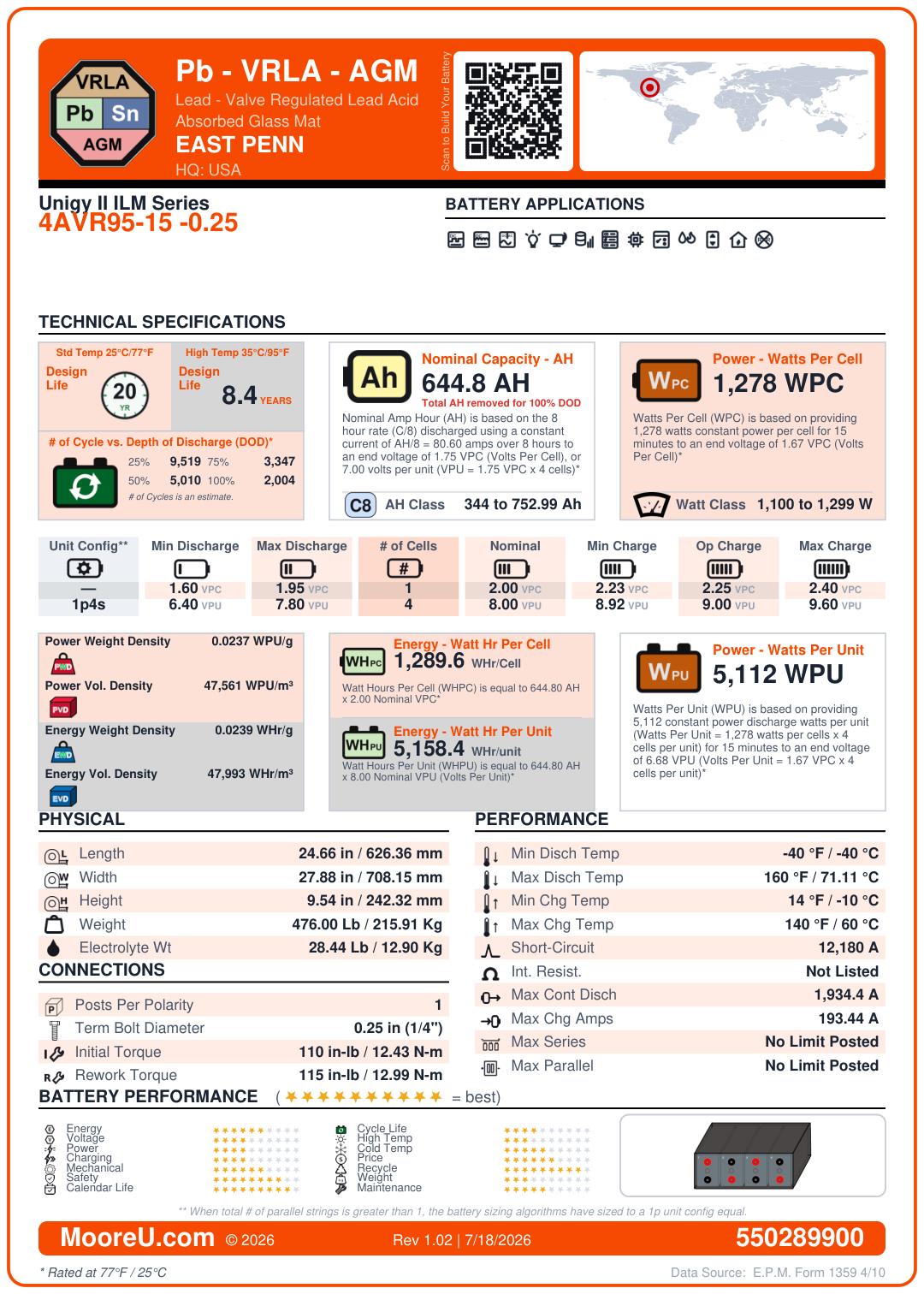

| Battery Model | East Penn Unigy II ILM Series 4AVR95 15 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 644.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 4 |
| Nominal VPC | 2 |
| Model KWH | 5 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 12180 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 24.66 x 27.88 x 9.54 in |
| Weight | 476 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 1934.4 Amps |
| Max Charge Amps | 193.44 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1278 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 28.44287605 lbs |
