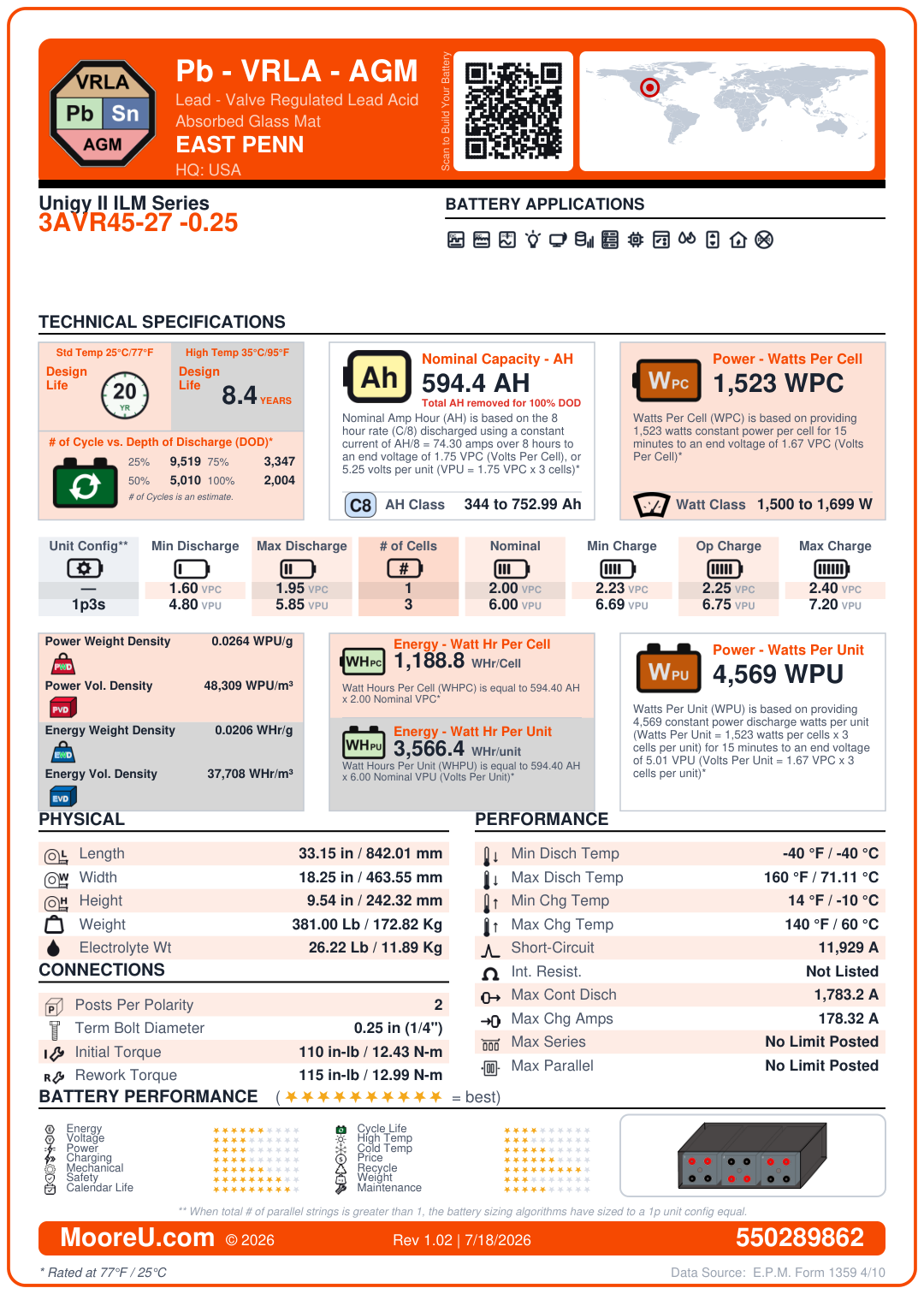

Front of card
Back of card
Furnish New Battery East Penn Unigy II ILM Series 3AVR45 27 0 25
Technology: Pb_Sn_VRLA_AGM.pngFurnish New Battery East Penn Unigy II ILM Series 3AVR45 27 0 25
$3,438.74
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Unigy II ILM Series 3AVR45 27 0 25
| Battery Model | East Penn Unigy II ILM Series 3AVR45 27 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 594.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 4 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 11929 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 33.15 x 18.25 x 9.54 in |
| Weight | 381 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 1783.2 Amps |
| Max Charge Amps | 178.32 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1523 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 26.21967358 lbs |
