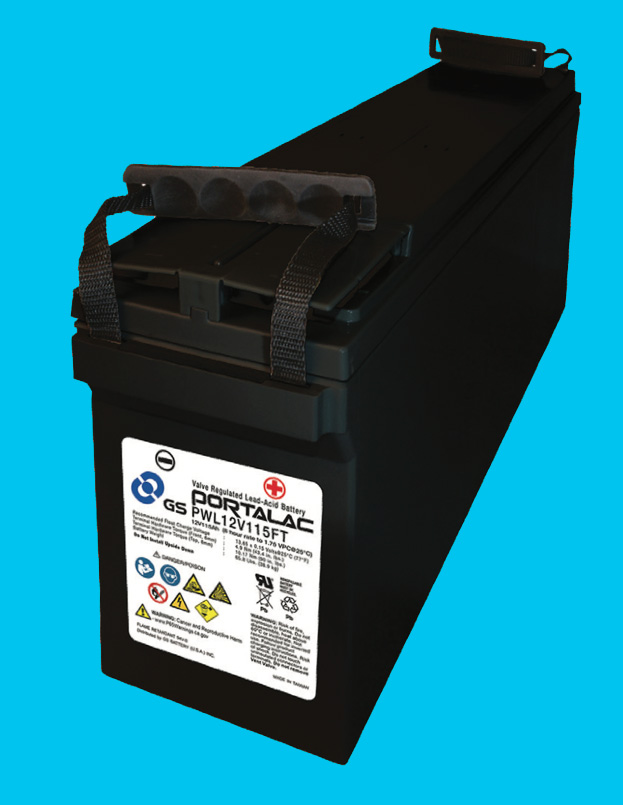

Furnish New Battery GS Yuasa PWL Series PWL12V115FT M8

Technology: Lead_Acid_Units_120lbs and less
Furnish New Battery GS Yuasa PWL Series PWL12V115FT M8

$533.74

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	GS Yuasa PWL Series PWL12V115FT M8
Adjustment	1
AH Per String	115.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 65°C
Charge Temp Range	-40°C to 65°C
ISC Amps	456
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	21.9 x 4.9 x 8.9 in
Weight	85.8 lbs
Number of Posts	1
Terminal Bolt Diameter	0.316 in (M8 mm)
Torque (Initial / Maintenance)	90 / 120 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	345.6 Amps
Max Charge Amps	34.56 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	82
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	5.081605646 lbs
