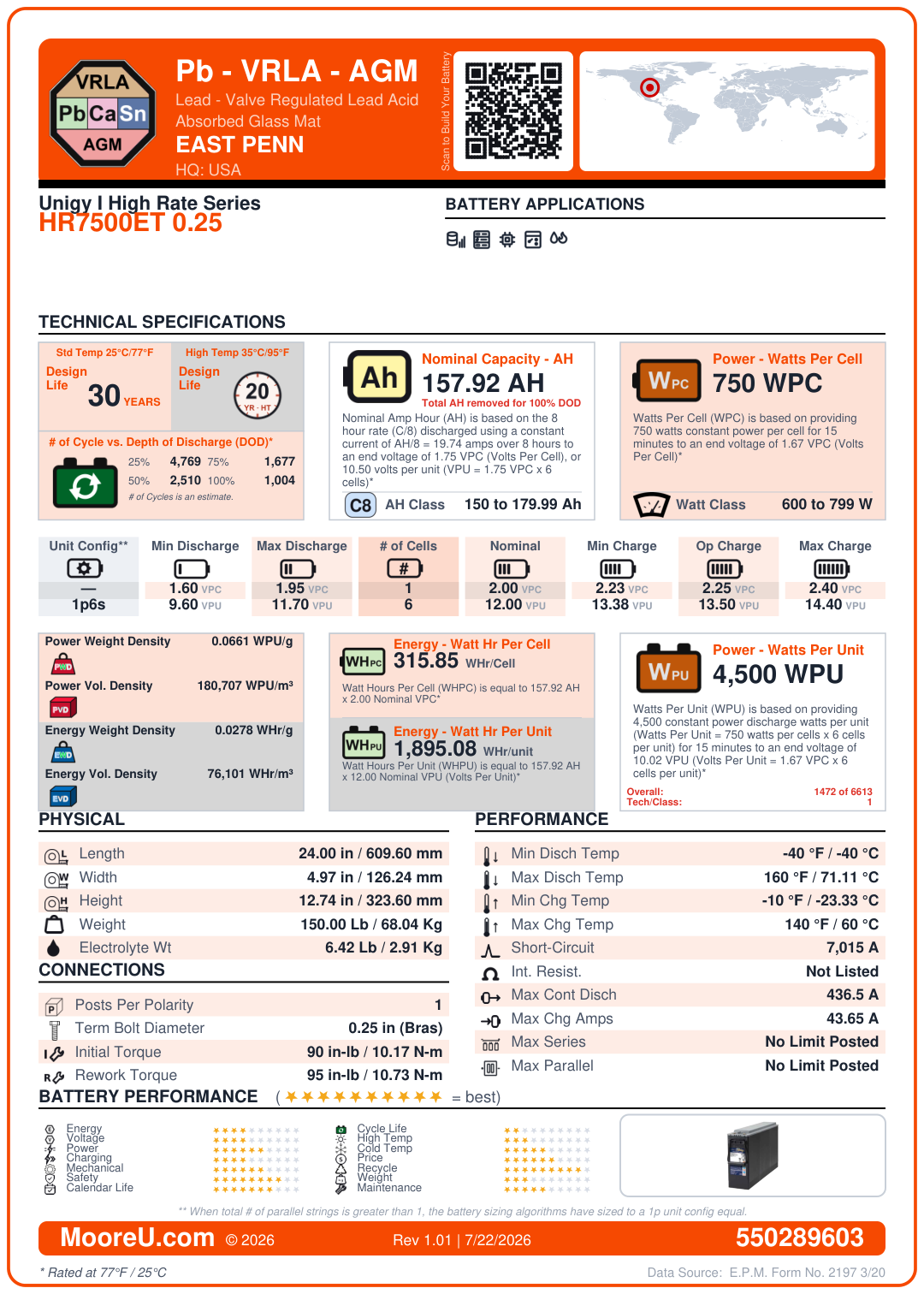

Back of card
Furnish New Battery East Penn Deka Unigy High Rate Series HR7500ET 0 25
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery East Penn Deka Unigy High Rate Series HR7500ET 0 25
$933.96
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Deka Unigy High Rate Series HR7500ET 0 25
| Battery Model | East Penn Deka Unigy High Rate Series HR7500ET 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 157.923 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.333°C to 60°C |
| ISC Amps | 7015 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 24 x 4.97 x 12.74 in |
| Weight | 150 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (Bras mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Brass_Insert |
| FOB | T |
| Max Continuous Discharge | 436.5 Amps |
| Max Charge Amps | 43.65 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 750 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.418173798 lbs |
