Furnish New Battery Enersys Data Safe DX 4DXC 21 0 188
Technology: Pb_VRLA_AGM.pngFurnish New Battery Enersys Data Safe DX 4DXC 21 0 188
$8,040.23
Build my Battery
Recycle My Battery
Furnish New Battery Enersys Data Safe DX 4DXC 21 0 188

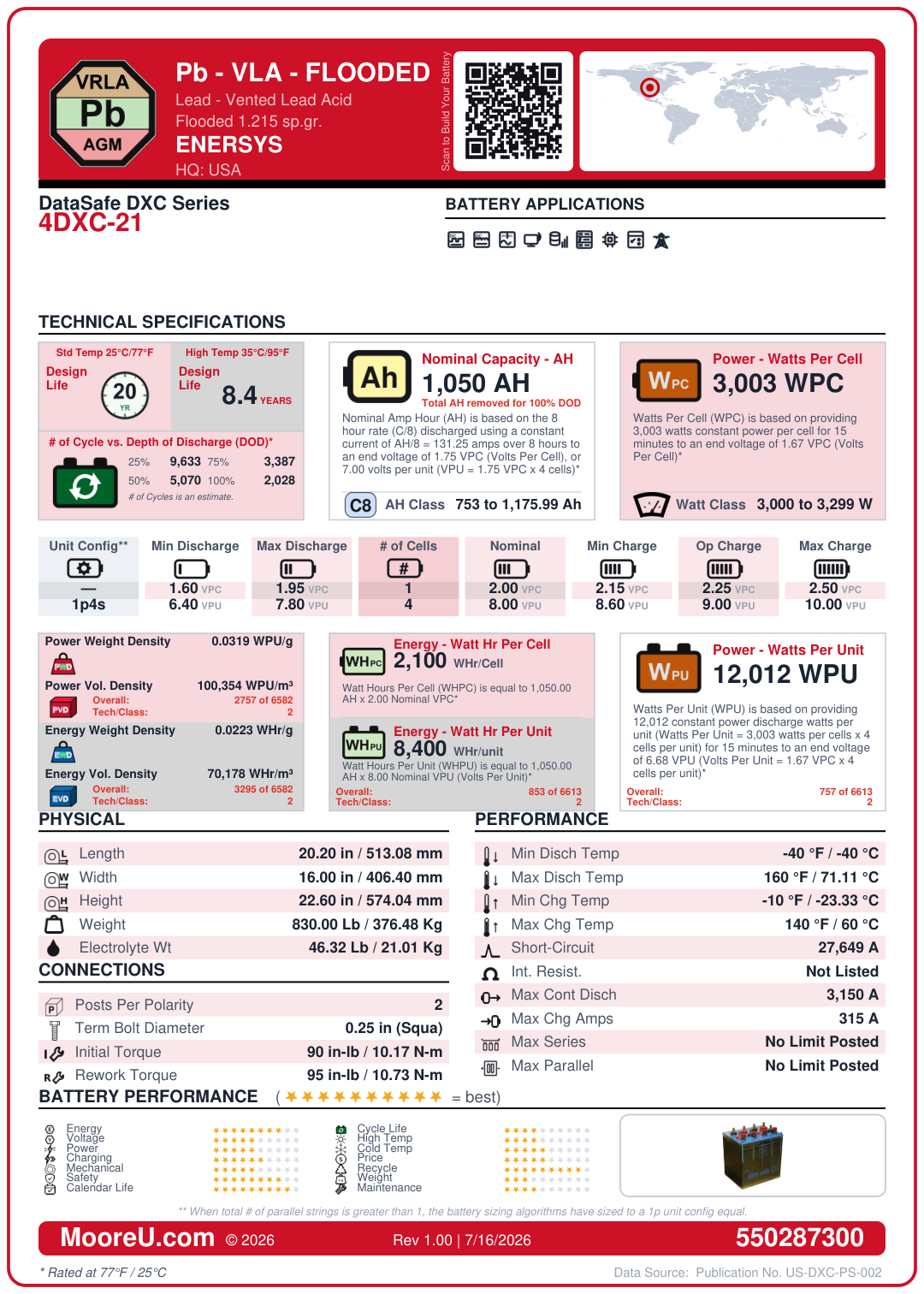

| Battery Model | Enersys Data Safe DX 4DXC 21 0 188 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1050 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 4 |
| Nominal VPC | 2 |
| Model KWH | 8 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 71.111°C |
| Charge Temp Range | -23.333°C to 60°C |
| ISC Amps | 27649 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 20.2 x 16 x 22.6 in |
| Weight | 830 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.25 in (Squa mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 3150 Amps |
| Max Charge Amps | 315 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 3003 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 46.31671813 lbs |
