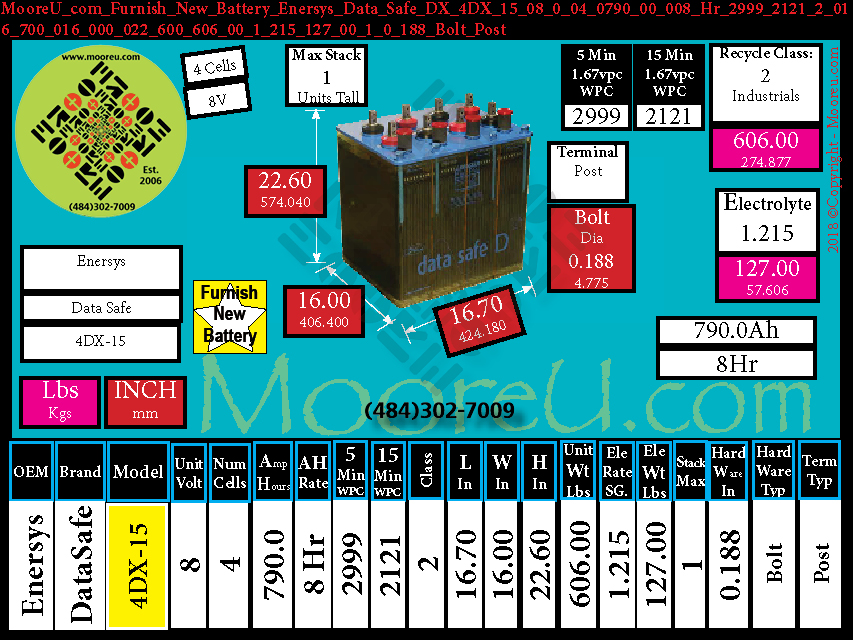

Furnish New Battery Enersys Data Safe DX 4DXC 15 0 188

Technology: Lead_Acid_Over120lbs
Furnish New Battery Enersys Data Safe DX 4DXC 15 0 188

$4,021.42

Description
Reference Documents
Battery Model
Specifications
Racks

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys Data Safe DX 4DXC 15 0 188
Adjustment	1
AH Per String	790
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	4
Nominal VPC	2
Model KWH	6
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 71.111°C
Charge Temp Range	-23.333°C to 60°C
ISC Amps	18717
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	16.7 x 16 x 22.6 in
Weight	606 lbs
Number of Posts	1
Terminal Bolt Diameter	0.25 in (Squa mm)
Torque (Initial / Maintenance)	90 / 95 in-lbs
Container	V0
Terminal	Square Post P
FOB	T
Max Continuous Discharge	2370 Amps
Max Charge Amps	237 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	2121
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	34.8478165 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
MooreU com Furnish New Battery Rack System 0111 U 4HC1 IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 0 560 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 111, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0111 U 4HC1 IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 0 560 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 111, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0111 U 4HC1 IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 0 560 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 111, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0111 U 4HC1 IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 0 560 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 111, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0097 U 001L IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 24 620 56 000 0507 05 2 0 625 3RP Light Gray 197 29 4 402 909 White	Battery Rack ID = 97, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0111 U 4HC1 IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 0 560 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 111, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0097 U 001L IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 24 620 56 000 0519 05 2 0 625 3RP Light Gray 209 29 4 427 946 White	Battery Rack ID = 97, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0097 U 001L IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 24 620 56 000 0582 06 2 0 625 3RP Light Gray 221 29 4 451 1033 White	Battery Rack ID = 97, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0097 U 001L IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 24 620 56 000 0596 06 2 0 625 3RP Light Gray 233 29 4 476 1072 White	Battery Rack ID = 97, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0097 U 001L IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 24 620 56 000 0609 06 2 0 625 3RP Light Gray 245 29 4 500 1109 White	Battery Rack ID = 97, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0112 U 4HC1 IND D 04 192 09a 09 500 16 000 22 680 076 09d 16 700 16 000 22 680 040 55 250 60 000 2075 07 2 0 560 3RP Light Gray 197 60 4 818 2893 White	Battery Rack ID = 112, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 76, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	16.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0112 U 4HC1 IND D 04 204 09a 09 500 16 000 22 680 080 09d 16 700 16 000 22 680 044 55 250 60 000 2352 08 2 0 560 3RP Light Gray 209 60 4 868 3220 White	Battery Rack ID = 112, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 80, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	17.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0112 U 4HC1 IND D 04 216 09a 09 500 16 000 22 680 084 09d 16 700 16 000 22 680 048 55 250 60 000 2370 08 2 0 560 3RP Light Gray 221 60 4 918 3288 White	Battery Rack ID = 112, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 84, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	18.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0112 U 4HC1 IND D 04 228 09a 09 500 16 000 22 680 092 09d 16 700 16 000 22 680 052 55 250 60 000 2646 09 2 0 560 3RP Light Gray 233 60 4 968 3614 White	Battery Rack ID = 112, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 92, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	19.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0098 U 001L IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 0 560 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 98, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0112 U 4HC1 IND D 04 240 09a 09 500 16 000 22 680 096 09d 16 700 16 000 22 680 052 55 250 60 000 2065 09 2 0 560 3RP Light Gray 245 60 4 1018 3083 White	Battery Rack ID = 112, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 96, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	20.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0098 U 001L IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 0 560 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 98, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0098 U 001L IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 0 560 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 98, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0098 U 001L IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 0 560 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 98, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0098 U 001L IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 0 560 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 98, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0113 U 4HC2 IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 29 000 60 000 1312 07 2 1 000 3RP Light Gray 197 34 4 462 1774 White	Battery Rack ID = 113, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0113 U 4HC2 IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 29 000 60 000 1480 08 2 1 000 3RP Light Gray 209 34 4 490 1970 White	Battery Rack ID = 113, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0113 U 4HC2 IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 29 000 60 000 1498 08 2 1 000 3RP Light Gray 221 34 4 518 2016 White	Battery Rack ID = 113, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0113 U 4HC2 IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 29 000 60 000 1665 09 2 1 000 3RP Light Gray 233 34 4 546 2211 White	Battery Rack ID = 113, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0099 U 001L IND D 06 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 45 000 22 810 0520 05 2 0 560 3RP Light Gray 197 50 4 679 1199 White	Battery Rack ID = 99, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 45.000 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0113 U 4HC2 IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 29 000 60 000 1684 09 2 1 000 3RP Light Gray 245 34 4 574 2258 White	Battery Rack ID = 113, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0099 U 001L IND D 06 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 45 000 22 810 0577 06 2 0 560 3RP Light Gray 209 50 4 721 1298 White	Battery Rack ID = 99, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 45.000 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0099 U 001L IND D 06 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 45 000 22 810 0596 06 2 0 560 3RP Light Gray 221 50 4 762 1358 White	Battery Rack ID = 99, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 45.000 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0099 U 001L IND D 06 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 45 000 22 810 0615 06 2 0 560 3RP Light Gray 233 50 4 803 1418 White	Battery Rack ID = 99, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 45.000 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0099 U 001L IND D 06 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 45 000 22 810 0634 06 2 0 560 3RP Light Gray 245 50 4 845 1479 White	Battery Rack ID = 99, Appl = U, Seismic = 001L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 45.000 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0114 U 4HC2 IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 1 000 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 114, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0114 U 4HC2 IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 1 000 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 114, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0114 U 4HC2 IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 1 000 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 114, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0114 U 4HC2 IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 1 000 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 114, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0100 U 002L IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 24 620 56 000 0507 05 2 0 625 3RP Light Gray 197 29 4 402 909 White	Battery Rack ID = 100, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0114 U 4HC2 IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 1 000 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 114, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0100 U 002L IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 24 620 56 000 0519 05 2 0 625 3RP Light Gray 209 29 4 427 946 White	Battery Rack ID = 100, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0100 U 002L IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 24 620 56 000 0582 06 2 0 625 3RP Light Gray 221 29 4 451 1033 White	Battery Rack ID = 100, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0100 U 002L IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 24 620 56 000 0596 06 2 0 625 3RP Light Gray 233 29 4 476 1072 White	Battery Rack ID = 100, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0100 U 002L IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 24 620 56 000 0609 06 2 0 625 3RP Light Gray 245 29 4 500 1109 White	Battery Rack ID = 100, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0115 U 4HC2 IND D 04 192 09a 09 500 16 000 22 680 076 09d 16 700 16 000 22 680 040 55 250 60 000 2075 07 2 1 000 3RP Light Gray 197 60 4 818 2893 White	Battery Rack ID = 115, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 76, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	16.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0115 U 4HC2 IND D 04 204 09a 09 500 16 000 22 680 080 09d 16 700 16 000 22 680 044 55 250 60 000 2352 08 2 1 000 3RP Light Gray 209 60 4 868 3220 White	Battery Rack ID = 115, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 80, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	17.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0115 U 4HC2 IND D 04 216 09a 09 500 16 000 22 680 084 09d 16 700 16 000 22 680 048 55 250 60 000 2370 08 2 1 000 3RP Light Gray 221 60 4 918 3288 White	Battery Rack ID = 115, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 84, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	18.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0115 U 4HC2 IND D 04 228 09a 09 500 16 000 22 680 092 09d 16 700 16 000 22 680 052 55 250 60 000 2646 09 2 1 000 3RP Light Gray 233 60 4 968 3614 White	Battery Rack ID = 115, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 92, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	19.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0101 U 002L IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 0 560 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 101, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0115 U 4HC2 IND D 04 240 09a 09 500 16 000 22 680 096 09d 16 700 16 000 22 680 052 55 250 60 000 2065 09 2 1 000 3RP Light Gray 245 60 4 1018 3083 White	Battery Rack ID = 115, Appl = U, Seismic = 4HC2, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 96, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	20.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0101 U 002L IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 0 560 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 101, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0101 U 002L IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 0 560 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 101, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0101 U 002L IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 0 560 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 101, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0101 U 002L IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 0 560 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 101, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0116 U 4HC3 IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 29 000 60 000 1312 07 2 1 000 3RP Light Gray 197 34 4 462 1774 White	Battery Rack ID = 116, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0116 U 4HC3 IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 29 000 60 000 1480 08 2 1 000 3RP Light Gray 209 34 4 490 1970 White	Battery Rack ID = 116, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0116 U 4HC3 IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 29 000 60 000 1498 08 2 1 000 3RP Light Gray 221 34 4 518 2016 White	Battery Rack ID = 116, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0116 U 4HC3 IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 29 000 60 000 1665 09 2 1 000 3RP Light Gray 233 34 4 546 2211 White	Battery Rack ID = 116, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0102 U 002L IND D 06 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 46 620 25 000 0895 07 2 0 560 3RP Light Gray 197 51 4 701 1596 White	Battery Rack ID = 102, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 46.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0116 U 4HC3 IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 29 000 60 000 1684 09 2 1 000 3RP Light Gray 245 34 4 574 2258 White	Battery Rack ID = 116, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0102 U 002L IND D 06 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 46 620 25 000 0995 08 2 0 560 3RP Light Gray 209 51 4 744 1739 White	Battery Rack ID = 102, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 46.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0102 U 002L IND D 06 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 46 620 25 000 1015 08 2 0 560 3RP Light Gray 221 51 4 787 1802 White	Battery Rack ID = 102, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 46.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0102 U 002L IND D 06 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 46 620 25 000 1035 08 2 0 560 3RP Light Gray 233 51 4 829 1864 White	Battery Rack ID = 102, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 46.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0102 U 002L IND D 06 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 46 620 25 000 1135 09 2 0 560 3RP Light Gray 245 51 4 872 2007 White	Battery Rack ID = 102, Appl = U, Seismic = 002L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 46.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0117 U 4HC3 IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 1 000 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 117, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0117 U 4HC3 IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 1 000 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 117, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0117 U 4HC3 IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 1 000 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 117, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0117 U 4HC3 IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 1 000 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 117, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0103 U 002H IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 24 620 56 000 0507 05 2 0 625 3RP Light Gray 197 29 4 402 909 White	Battery Rack ID = 103, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0117 U 4HC3 IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 1 000 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 117, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0103 U 002H IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 24 620 56 000 0519 05 2 0 625 3RP Light Gray 209 29 4 427 946 White	Battery Rack ID = 103, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0103 U 002H IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 24 620 56 000 0582 06 2 0 625 3RP Light Gray 221 29 4 451 1033 White	Battery Rack ID = 103, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0103 U 002H IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 24 620 56 000 0596 06 2 0 625 3RP Light Gray 233 29 4 476 1072 White	Battery Rack ID = 103, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0103 U 002H IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 24 620 56 000 0609 06 2 0 625 3RP Light Gray 245 29 4 500 1109 White	Battery Rack ID = 103, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0118 U 4HC3 IND D 04 192 09a 09 500 16 000 22 680 076 09d 16 700 16 000 22 680 040 55 250 60 000 2075 07 2 1 000 3RP Light Gray 197 60 4 818 2893 White	Battery Rack ID = 118, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 192, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 76, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	16.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0118 U 4HC3 IND D 04 204 09a 09 500 16 000 22 680 080 09d 16 700 16 000 22 680 044 55 250 60 000 2352 08 2 1 000 3RP Light Gray 209 60 4 868 3220 White	Battery Rack ID = 118, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 204, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 80, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	17.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0118 U 4HC3 IND D 04 216 09a 09 500 16 000 22 680 084 09d 16 700 16 000 22 680 048 55 250 60 000 2370 08 2 1 000 3RP Light Gray 221 60 4 918 3288 White	Battery Rack ID = 118, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 216, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 84, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	18.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0118 U 4HC3 IND D 04 228 09a 09 500 16 000 22 680 092 09d 16 700 16 000 22 680 052 55 250 60 000 2646 09 2 1 000 3RP Light Gray 233 60 4 968 3614 White	Battery Rack ID = 118, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 228, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 92, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	19.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0104 U 002H IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 0 560 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 104, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0118 U 4HC3 IND D 04 240 09a 09 500 16 000 22 680 096 09d 16 700 16 000 22 680 052 55 250 60 000 2065 09 2 1 000 3RP Light Gray 245 60 4 1018 3083 White	Battery Rack ID = 118, Appl = U, Seismic = 4HC3, Master Model = IND_D, Rack Style = 04_2_tier_2_row, Total Length = 240, Number Row = 4, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 96, Model Max = 09d = 2DX/DZ/SD-27to35, Max Mod	20.000 x 55.250 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0104 U 002H IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 0 560 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 104, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0104 U 002H IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 0 560 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 104, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0104 U 002H IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 0 560 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 104, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0104 U 002H IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 0 560 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 104, Appl = U, Seismic = 002H, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0105 U 004L IND D 01 192 09a 09 500 16 000 22 680 019 09d 16 700 16 000 22 680 010 24 620 20 000 0507 05 2 0 625 3RP Light Gray 197 29 4 402 909 White	Battery Rack ID = 105, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 01_1_tier, Total Length = 192, Number Row = 1, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 19, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0105 U 004L IND D 01 204 09a 09 500 16 000 22 680 020 09d 16 700 16 000 22 680 011 24 620 20 000 0519 05 2 0 625 3RP Light Gray 209 29 4 427 946 White	Battery Rack ID = 105, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 01_1_tier, Total Length = 204, Number Row = 1, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 20, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0105 U 004L IND D 01 216 09a 09 500 16 000 22 680 021 09d 16 700 16 000 22 680 012 24 620 20 000 0582 06 2 0 625 3RP Light Gray 221 29 4 451 1033 White	Battery Rack ID = 105, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 01_1_tier, Total Length = 216, Number Row = 1, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 21, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0105 U 004L IND D 01 228 09a 09 500 16 000 22 680 023 09d 16 700 16 000 22 680 013 24 620 20 000 0596 06 2 0 625 3RP Light Gray 233 29 4 476 1072 White	Battery Rack ID = 105, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 01_1_tier, Total Length = 228, Number Row = 1, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 23, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0105 U 004L IND D 01 240 09a 09 500 16 000 22 680 024 09d 16 700 16 000 22 680 013 24 620 20 000 0609 06 2 0 625 3RP Light Gray 245 29 4 500 1109 White	Battery Rack ID = 105, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 01_1_tier, Total Length = 240, Number Row = 1, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 24, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0106 U 004L IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 29 000 60 000 1312 07 2 1 000 3RP Light Gray 197 34 4 462 1774 White	Battery Rack ID = 106, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0106 U 004L IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 29 000 60 000 1480 08 2 1 000 3RP Light Gray 209 34 4 490 1970 White	Battery Rack ID = 106, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0106 U 004L IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 29 000 60 000 1498 08 2 1 000 3RP Light Gray 221 34 4 518 2016 White	Battery Rack ID = 106, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0106 U 004L IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 29 000 60 000 1665 09 2 1 000 3RP Light Gray 233 34 4 546 2211 White	Battery Rack ID = 106, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0106 U 004L IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 29 000 60 000 1684 09 2 1 000 3RP Light Gray 245 34 4 574 2258 White	Battery Rack ID = 106, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0107 U 004L IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 29 000 98 500 1969 05 2 0 560 3RP Light Gray 197 34 4 462 2431 White	Battery Rack ID = 107, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0107 U 004L IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 29 000 98 500 2220 05 2 0 560 3RP Light Gray 209 34 4 490 2710 White	Battery Rack ID = 107, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0107 U 004L IND D 03 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 29 000 98 500 2248 06 2 0 560 3RP Light Gray 221 34 4 518 2766 White	Battery Rack ID = 107, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0107 U 004L IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 29 000 98 500 2499 06 2 0 560 3RP Light Gray 233 34 4 546 3045 White	Battery Rack ID = 107, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0107 U 004L IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 29 000 98 500 2527 06 2 0 560 3RP Light Gray 245 34 4 574 3101 White	Battery Rack ID = 107, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0108 U 004L IND D 06 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 51 000 28 930 1850 08 2 0 680 3RP Light Gray 197 56 4 761 2611 White	Battery Rack ID = 108, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 51.000 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0108 U 004L IND D 06 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 51 000 28 930 1880 09 2 0 680 3RP Light Gray 209 56 4 807 2687 White	Battery Rack ID = 108, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 51.000 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0108 U 004L IND D 06 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 51 000 28 930 1920 09 2 0 680 3RP Light Gray 221 56 4 853 2773 White	Battery Rack ID = 108, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 51.000 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0108 U 004L IND D 06 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 51 000 28 930 1940 10 2 0 680 3RP Light Gray 233 56 4 900 2840 White	Battery Rack ID = 108, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 51.000 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0094 U 0000 IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 022 22 120 43 880 0484 06 2 0 560 3RP Light Gray 197 27 4 368 852 White	Battery Rack ID = 94, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 22.120 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0108 U 004L IND D 06 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 51 000 28 930 1960 10 2 0 680 3RP Light Gray 245 56 4 946 2906 White	Battery Rack ID = 108, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 51.000 x 22.68 in	3 batteries
MooreU com Furnish New Battery Rack System 0094 U 0000 IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 024 22 120 43 880 0497 06 2 0 560 3RP Light Gray 209 27 4 391 888 White	Battery Rack ID = 94, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 22.120 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0094 U 0000 IND D 02 216 09a 09 500 16 000 22 680 044 09d 16 700 16 000 22 680 024 22 120 43 880 0558 07 2 0 560 3RP Light Gray 221 27 4 413 971 White	Battery Rack ID = 94, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 44, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 22.120 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0094 U 0000 IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 22 120 43 880 0571 07 2 0 560 3RP Light Gray 233 27 4 436 1007 White	Battery Rack ID = 94, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 22.120 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0094 U 0000 IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 028 22 120 43 880 0584 07 2 0 560 3RP Light Gray 245 27 4 458 1042 White	Battery Rack ID = 94, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 22.120 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0109 U 004L IND D 07 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 030 69 930 29 000 1850 07 2 0 560 3RP Light Gray 197 74 4 1018 2868 White	Battery Rack ID = 109, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 07_3_step, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 69.930 x 22.68 in	4 batteries
MooreU com Furnish New Battery Rack System 0109 U 004L IND D 07 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 033 69 930 29 000 1880 08 2 0 560 3RP Light Gray 209 74 4 1080 2960 White	Battery Rack ID = 109, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 07_3_step, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 69.930 x 22.68 in	4 batteries
MooreU com Furnish New Battery Rack System 0109 U 004L IND D 07 216 09a 09 500 16 000 22 680 063 09d 16 700 16 000 22 680 036 69 930 29 000 1920 08 2 0 560 3RP Light Gray 221 74 4 1142 3062 White	Battery Rack ID = 109, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 07_3_step, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 63, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 69.930 x 22.68 in	4 batteries
MooreU com Furnish New Battery Rack System 0109 U 004L IND D 07 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 69 930 29 000 1940 08 2 0 560 3RP Light Gray 233 74 4 1204 3144 White	Battery Rack ID = 109, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 07_3_step, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 69.930 x 22.68 in	4 batteries
MooreU com Furnish New Battery Rack System 0095 U 0000 IND D 03 192 09a 09 500 16 000 22 680 057 09d 16 700 16 000 22 680 033 24 620 75 000 0621 05 2 0 560 3RP Light Gray 197 29 4 402 1023 White	Battery Rack ID = 95, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 192, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 57, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0109 U 004L IND D 07 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 039 69 930 29 000 1960 09 2 0 560 3RP Light Gray 245 74 4 1266 3226 White	Battery Rack ID = 109, Appl = U, Seismic = 004L, Master Model = IND_D, Rack Style = 07_3_step, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 69.930 x 22.68 in	4 batteries
MooreU com Furnish New Battery Rack System 0095 U 0000 IND D 03 204 09a 09 500 16 000 22 680 060 09d 16 700 16 000 22 680 036 24 620 75 000 0633 05 2 0 560 3RP Light Gray 209 29 4 427 1060 White	Battery Rack ID = 95, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 204, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 60, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0095 U 0000 IND D 03 216 09a 09 500 16 000 22 680 066 09d 16 700 16 000 22 680 036 24 620 75 000 0728 06 2 0 560 3RP Light Gray 221 29 4 451 1179 White	Battery Rack ID = 95, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 216, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 66, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0095 U 0000 IND D 03 228 09a 09 500 16 000 22 680 069 09d 16 700 16 000 22 680 039 24 620 75 000 0740 06 2 0 560 3RP Light Gray 233 29 4 476 1216 White	Battery Rack ID = 95, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 228, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 69, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0095 U 0000 IND D 03 240 09a 09 500 16 000 22 680 072 09d 16 700 16 000 22 680 042 24 620 75 000 0750 06 2 0 560 3RP Light Gray 245 29 4 500 1250 White	Battery Rack ID = 95, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 03_3_tier, Total Length = 240, Number Row = 3, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 72, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 24.620 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0110 U 4HC1 IND D 02 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 020 29 000 60 000 1312 07 2 0 560 3RP Light Gray 197 34 4 462 1774 White	Battery Rack ID = 110, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0110 U 4HC1 IND D 02 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 022 29 000 60 000 1480 08 2 0 560 3RP Light Gray 209 34 4 490 1970 White	Battery Rack ID = 110, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0110 U 4HC1 IND D 02 216 09a 09 500 16 000 22 680 042 09d 16 700 16 000 22 680 024 29 000 60 000 1498 08 2 0 560 3RP Light Gray 221 34 4 518 2016 White	Battery Rack ID = 110, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 42, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0110 U 4HC1 IND D 02 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 29 000 60 000 1665 09 2 0 560 3RP Light Gray 233 34 4 546 2211 White	Battery Rack ID = 110, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0096 U 0000 IND D 06 192 09a 09 500 16 000 22 680 038 09d 16 700 16 000 22 680 022 34 620 14 000 1350 08 3 0 560 3RP Light Gray 197 39 4 538 1888 White	Battery Rack ID = 96, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 192, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 38, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	16.000 x 34.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0110 U 4HC1 IND D 02 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 026 29 000 60 000 1684 09 2 0 560 3RP Light Gray 245 34 4 574 2258 White	Battery Rack ID = 110, Appl = U, Seismic = 4HC1, Master Model = IND_D, Rack Style = 02_2_tier, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 29.000 x 22.68 in	1 batteries
MooreU com Furnish New Battery Rack System 0096 U 0000 IND D 06 204 09a 09 500 16 000 22 680 040 09d 16 700 16 000 22 680 024 34 620 14 000 1380 09 3 0 560 3RP Light Gray 209 39 4 571 1951 White	Battery Rack ID = 96, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 204, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 40, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	17.000 x 34.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0096 U 0000 IND D 06 216 09a 09 500 16 000 22 680 044 09d 16 700 16 000 22 680 024 34 620 14 000 1410 09 3 0 560 3RP Light Gray 221 39 4 604 2014 White	Battery Rack ID = 96, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 216, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 44, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	18.000 x 34.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0096 U 0000 IND D 06 228 09a 09 500 16 000 22 680 046 09d 16 700 16 000 22 680 026 34 620 14 000 1450 10 3 0 560 3RP Light Gray 233 39 4 636 2086 White	Battery Rack ID = 96, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 228, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 46, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	19.000 x 34.620 x 22.68 in	2 batteries
MooreU com Furnish New Battery Rack System 0096 U 0000 IND D 06 240 09a 09 500 16 000 22 680 048 09d 16 700 16 000 22 680 028 34 620 14 000 1475 10 3 0 560 3RP Light Gray 245 39 4 669 2144 White	Battery Rack ID = 96, Appl = U, Seismic = 0000, Master Model = IND_D, Rack Style = 06_2_step, Total Length = 240, Number Row = 2, Min Model = 09a = 4DX/DZ/SD-11to17,1SD-54to70, Min Model Max Unit Ct = 48, Model Max = 09d = 2DX/DZ/SD-27to35, Max Model Max	20.000 x 34.620 x 22.68 in	2 batteries
