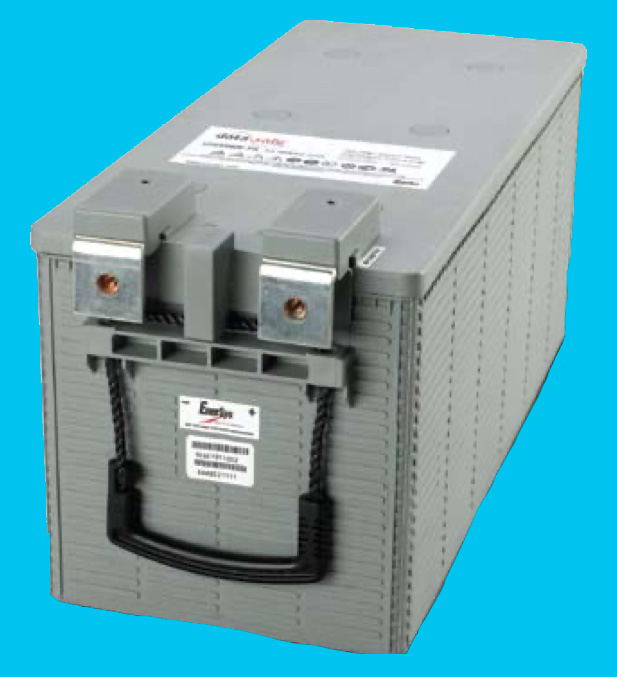

Furnish New Battery Enersys Data Safe HX 12HX680F FR 0 315
Technology: Lead_Acid_Units_120lbs and lessFurnish New Battery Enersys Data Safe HX 12HX680F FR 0 315
$846.01
Furnish New Battery Enersys Data Safe HX 12HX680F FR 0 315
| Battery Model | Enersys Data Safe HX 12HX680F FR 0 315 |
|---|---|
| Adjustment | 1 |
| AH Per String | 174.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 50°C |
| Charge Temp Range | -20°C to 50°C |
| ISC Amps | 11550 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 21.3 x 8.4 x 9.7 in |
| Weight | 148 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (Copp mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Copper_Insert |
| FOB | T |
| Max Continuous Discharge | 523.2 Amps |
| Max Charge Amps | 52.32 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 680 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 7.692986326 lbs |
