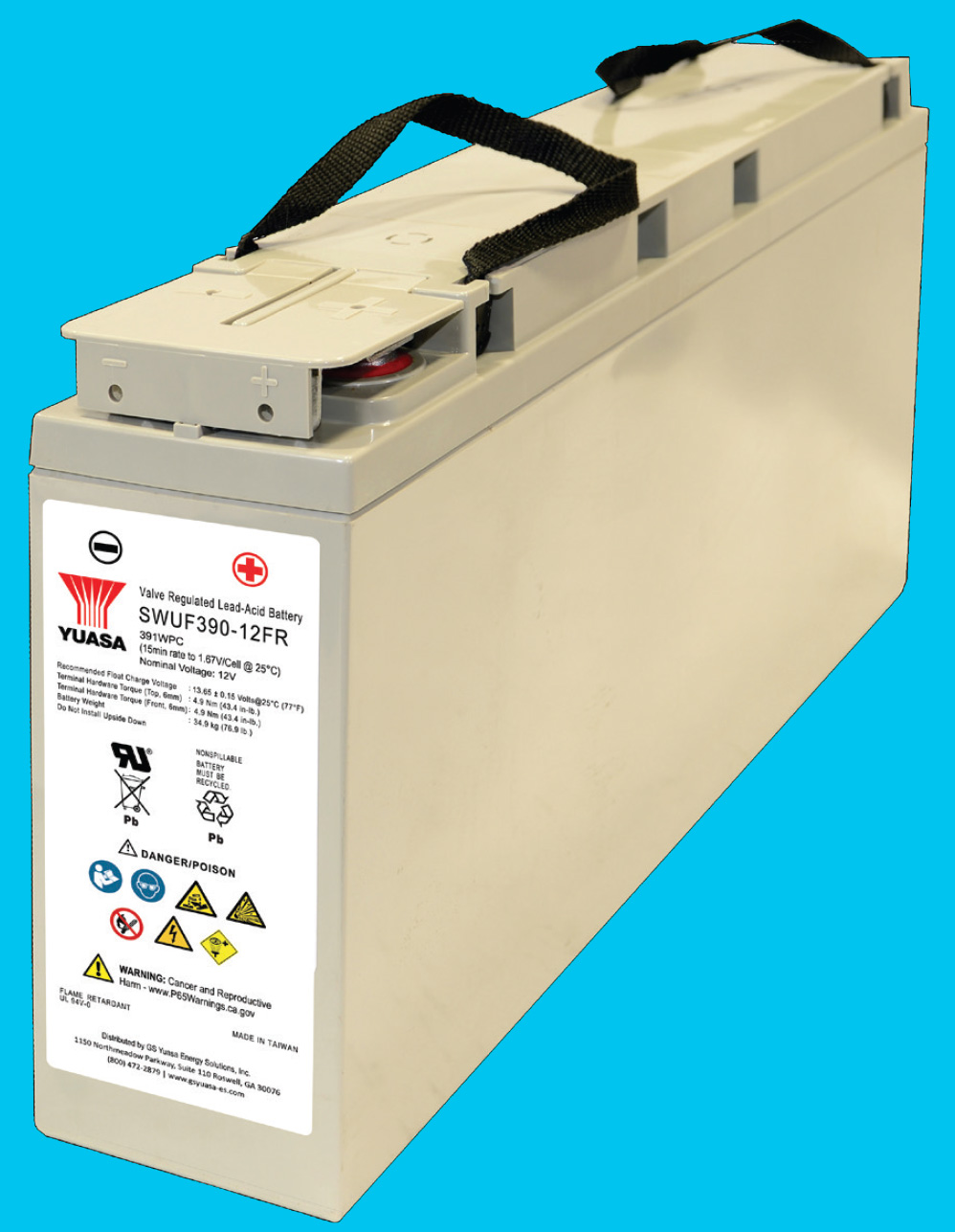

Furnish New Battery GS Yuasa SWU Series SWUF390 12FR V0 T M6
Technology: Lead_Acid_Units_120lbs and lessFurnish New Battery GS Yuasa SWU Series SWUF390 12FR V0 T M6
$321.17
Furnish New Battery GS Yuasa SWU Series SWUF390 12FR V0 T M6
| Battery Model | GS Yuasa SWU Series SWUF390 12FR V0 T M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 74.19 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 65°C |
| Charge Temp Range | -15°C to 40°C |
| ISC Amps | 3770 |
| Internal Resistance | 0.0011 Ohms |
| Dimensions (L x W x H) | 20 x 4.17 x 9.29 in |
| Weight | 74.95 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.2362 in (M6 mm) |
| Torque (Initial / Maintenance) | 90 / 95 in-lbs |
| Container | V0 |
| Terminal | Front M6 Bolt |
| FOB | T |
| Max Continuous Discharge | 225 Amps |
| Max Charge Amps | 22.5 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 391 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 3.308337009 lbs |
